1-7 1 Maintenance RS head: Attaching a nozzle Cutout 1. Insert the nozzle aligning the cutout in the nozzle with positioning tab of the nozzle shaft. * Remove nozzle in reverse order of above. 2 T urn the nozzle 90 degre…
1-6
1
Maintenance
n
Consumable parts (optional parts)
Product Nam Part Name Part No. Note
Standard 72XX
Series nozzles
NOZZLE, 7202A ASSY KMB-M7720-A0X For 0402 size component
NOZZLE, 7203A ASSY KMB-M7730-A0X For 0603 size component
NOZZLE, 7204A ASSY KMB-M7740-A0X For 1005 size component
NOZZLE, 7205A ASSY KMB-M7750-A0X For 1608 size component
NOZZLE, 7206A ASSY KMB-M7760-A0X For 2012 size component
NOZZLE, 7207A ASSY KMB-M7770-A0X
For 3016 and 3225 size
component
NOZZLE, 7208A ASSY KMB-M7780-A1X For SOP, etc.
Other
BODY, NOZZLE 7202 KHY-M77A1-00X For 7202A Nozzle tip only
NZL. 311/7203 KHY-M7711-04X For 7203A Nozzle tip only
NZL. 312/7204 KHY-M7721-03X For 7204A Nozzle tip only
NZL. 302/7205 KHN-M7721-05X For 7205A Nozzle tip only
NZL. 313/7206 KHY-M7731-03X For 7206A Nozzle tip only
BODY,NOZZLE 7207 KMB-M7771-00X For 7207A Nozzle tip only
BODY, NOZZLE 7208 KHY-M7741-00X For 7208A Nozzle tip only
SPRING KMB-M7714-00X For 7202A to 7208A
NEEDLE PIN 90990-19J019 φ 0.7 mm
O-RING KMB-M7716-00X O-ring for pin supporting
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
1-7
1
Maintenance

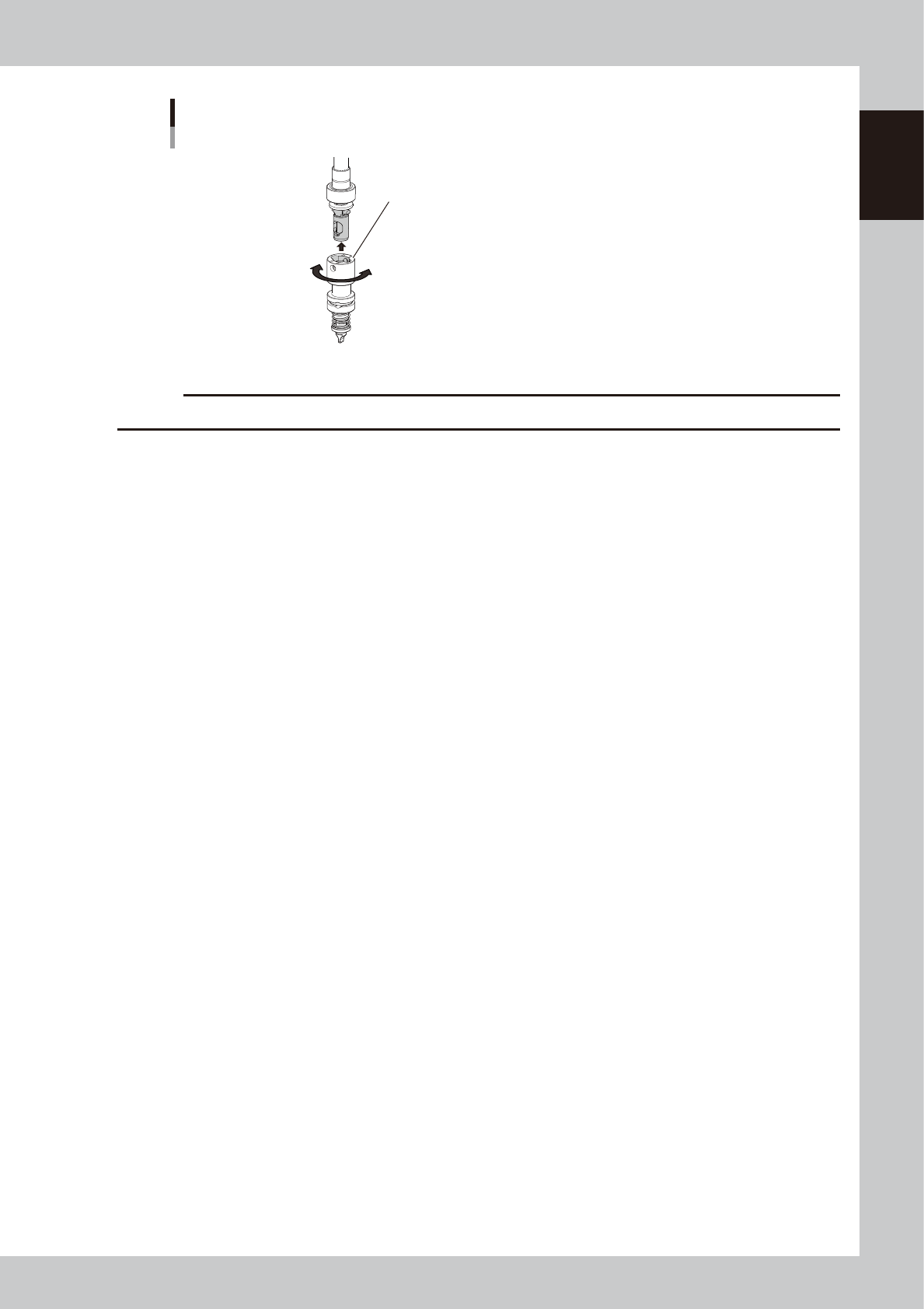

RS head: Attaching a nozzle
Cutout
1. Insert the nozzle aligning the cutout in the nozzle with
positioning tab of the nozzle shaft.
* Remove nozzle in reverse order of above.
2 Turn the nozzle 90 degrees to the right as seen from below.
53113-N9-00
c
CAUTION
See "How to lower RS head/nozzle shafts" to lower Z-axis manually when remove nozzles manually.
1-8
1
Maintenance
2.1.3 FL head unit
n
Consumable parts (parts supplied with machine)
Consumable parts (FL head)
Parts supplied with machine
Air filter
Nozzle leaf spring
Roller
Washer
Roller lock assembly
Nozzle leaf
mounting screw
53102-N9-00
Name Part Name Part No. Note
Nozzle leaf spring PLATE, SPRING KV7-M8171-00X
Nozzle leaf spring mounting screw BOLT HEX, SOCKETHEAD 90115-02J004
Washer WASHER, PLAIN 90990-28J002
Air filter FILTER KLF-M7156-00X
