1-4 1 Maintenance n Consumable par ts (optional par ts) Name Part Name Part No. Note Standard 50X Series nozzles NOZZLE, 500A/510A ASSY . KLF-M87A0-A0X For 0402 size component NOZZLE, 501A ASSY . KLF-M7710-A0X For 0603 a…
1-3
1
Maintenance
2. Preparing for maintenance tasks
Tasks described in this section focus mainly on replacing parts (consumable parts) that might cause a gradual
loss of machine functions during use. This section also describes how the user can easily replace parts
(replaceable parts) when a breakdown occurs.
2.1 Consumable parts
The term "consumable parts" in this manual indicates parts subject to continual wear during use causing
gradual loss of functions. The following parts are classified in this manual as consumable parts and should be
replaced as needed during maintenance.

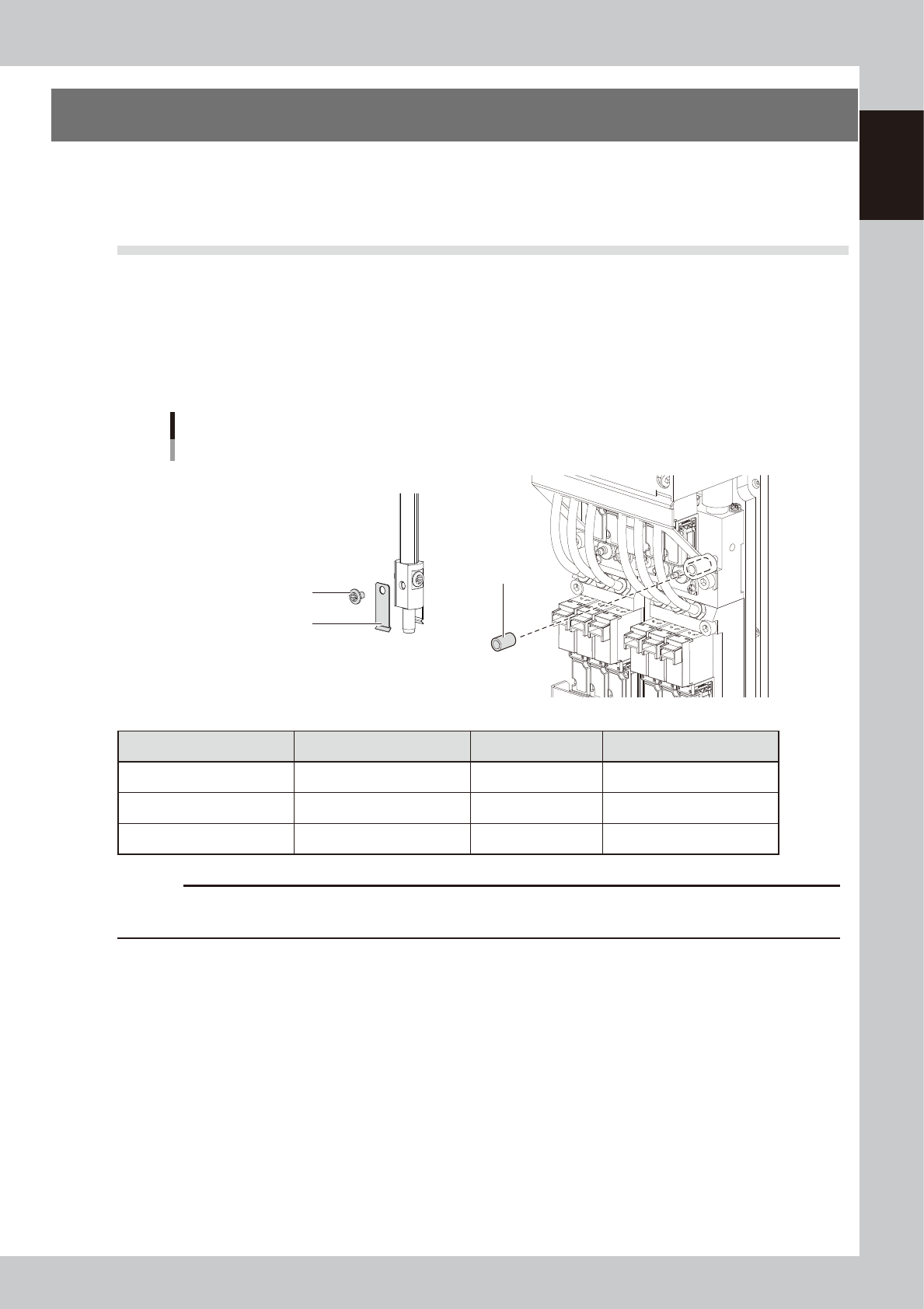

2.1.1 MU head unit
n
Consumable parts (parts supplied with machine)
Consumable parts (MU head)
Parts supplied with machine
Air filter
Nozzle leaf spring
Nozzle leaf spring
mounting screw
53100-N9-00
Name Part Name Part No. Note
Nozzle leaf spring LEAF SPRING KG7-M7137-A0X
Nozzle leaf spring mounting screw
SCREW, PAN HEAD 90990-08J016 M2 × L2.5
Air filter FILTER KLF-M7156-00X
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
1-4
1
Maintenance
n

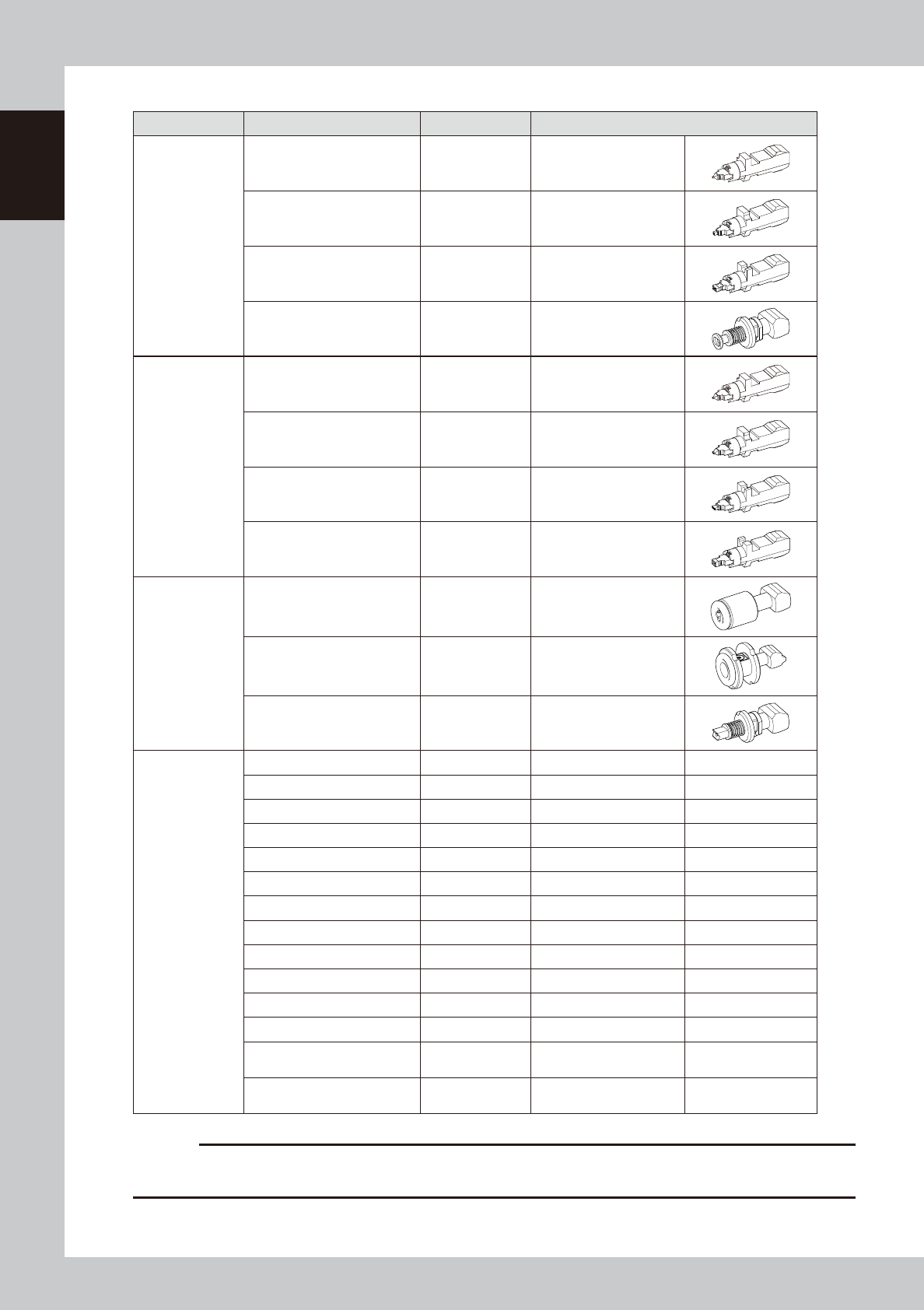

Consumable parts (optional parts)
Name Part Name Part No. Note
Standard 50X
Series nozzles
NOZZLE, 500A/510A ASSY. KLF-M87A0-A0X For 0402 size component
NOZZLE, 501A ASSY. KLF-M7710-A0X
For 0603 and 1005 size
component
NOZZLE, 502A ASSY. KLF-M7720-A1X
For 1608, 2012, and 3216
size component
NOZZLE, 503A/514A ASSY. KLF-M8740-A0X SOP, etc.
Narrow-pitch 51X
Series nozzles
NOZZLE, 500A/510A ASSY. KLF-M87A0-A0X For 0402 size component
NOZZLE, 511A ASSY. KLF-M8710-A1X For 0603 size component
NOZZLE, 512A ASSY. KLF-M8720-A1X
For 1005 and 1608 size
component
NOZZLE, 513A ASSY. KLF-M8730-A1X
For 2012, 3216, and 3225
size component
Standard &
narrow-pitch
Common nozzles
NOZZLE, 504A/515A ASSY. KLF-M8750-A0X QFP, PLCC, etc.
NOZZLE, 507A/518A ASSY. KLF-M8780-A0X
32 x 32 mm or larger
components
NOZZLE, 506A/517A ASSY. KLF-M8770-A0X Cylindrical component
Other
BODY, NOZZLE 500/510 KLF-M87A1-01X For 510A Nozzle tip only
BODY, NOZZLE 511 KLF-M8711-01X For 511A Nozzle tip only
BODY, NOZZLE 512 KLF-M8721-01X For 512A Nozzle tip only
BODY, NOZZLE 513 KLF-M8731-01X For 513A Nozzle tip only
BODY, NOZZLE 501 KLF-M7711-00X For 501A Nozzle tip only
BODY, NOZZLE 502 KLF-M7721-01X For 502A Nozzle tip only
BODY, NOZZLE 303/314 KHY-M7741-00X For 503A / 514A Nozzle tip only
BODY, NOZZLE 306/317 KHY-M7771-00X For 506A / 517A Nozzle tip only
SPRING,NOZZLE KLF-M7713-00X For chip nozzles
SPRING KHN-M7713-000 For 503 / 514A, 506 / 517A
PIN KHN-M7714-000 For 503 / 514A, 506 / 517A
CLIP KHN-M7715-001 For 503 / 514A, 506 / 517A
O-RING 90990-17J081 For 504A / 515A
Ozone
countermeasure part
O-RING 90990-17J082 For 507A / 518A
Ozone
countermeasure part
c
CAUTION
The parts (part Nos.) in this manual are at the time of issuing this manual. The part Nos. may be changed without prior
notice. Make sure to verify the latest part Nos. before ordering.
1-5
1
Maintenance

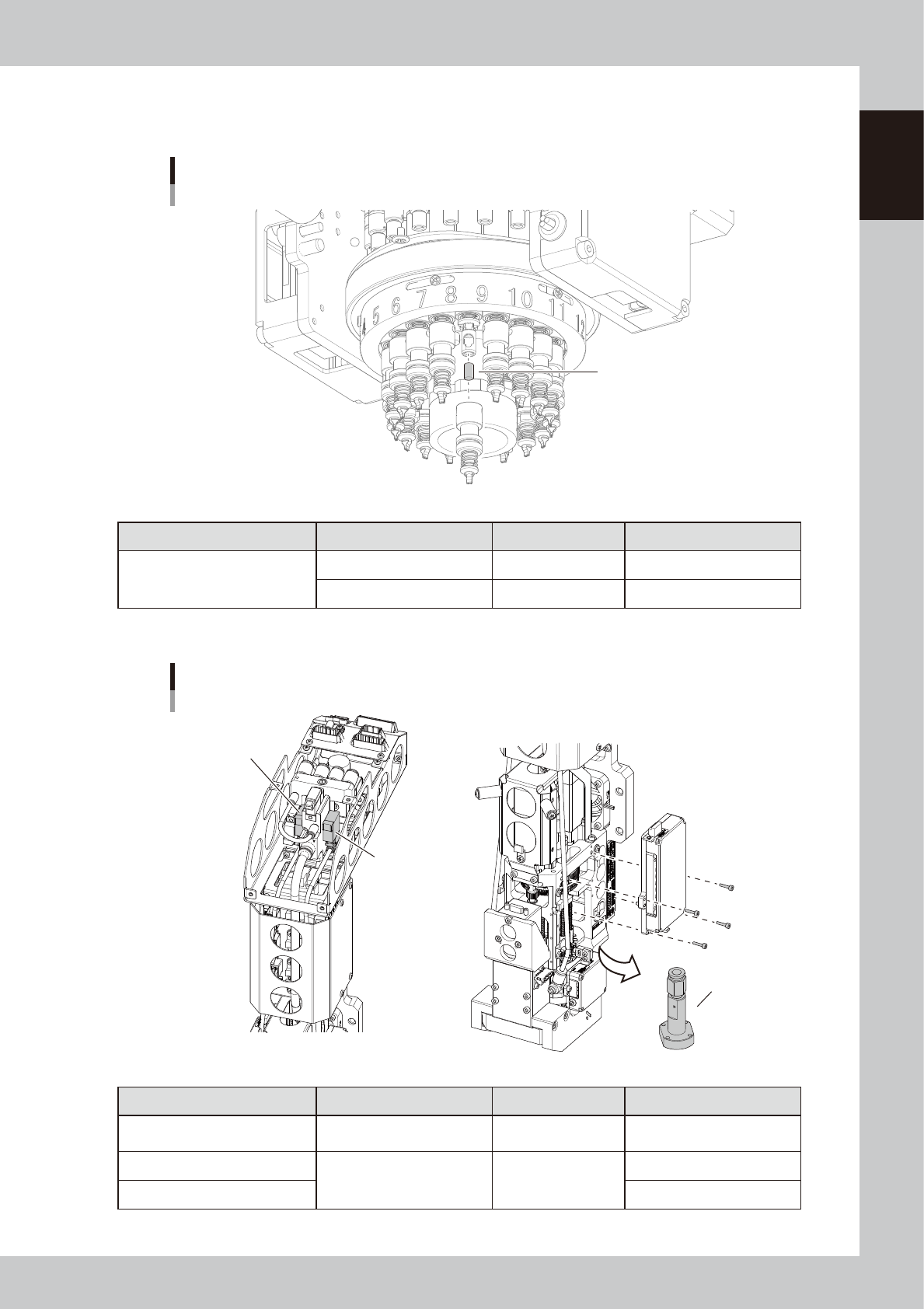

2.1.2 RS head unit
n
Consumable parts (parts supplied with machine)
Consumable parts (RS head)
Parts supplied with machine
Air filter
53101-N9-00
Name Part Name Part No. Note
Air filter
FILTER KMB-M7070-00X 1 pc
FILTER 1000PCS. KMB-M3857-01X 1,000 pcs
n
Consumable parts (optional parts)
Consumable parts (RS head)
Optional parts
Packing assembly
Blow valve for rod 1
Blow valve for rod 2
53112-N9-00
Name Part Name Part No. Note
Packing assembly PACKING ASSY KMB-M70SP-00X
Replaceable part for RS head
vacuum line
Blow valve for rod 1
VALVE KMB-7055-00X
Blow valve for rod 2
