3-8 3 Periodic maintenance items 1.2.4 ANC nozzle attaching/detaching tool Regarding the machine equipped with a nozzle station (option / hereafter "ANC"), nozzles are detac hed manually from the nozzle station…
3-7
3
Periodic maintenance items
5
Clean the nozzle tip.
Push the nozzle tip vertically against the
adhesive surface of the nozzle tip cleaning
tape several times to remove dirt.
533E3-N9-00
c
CAUTION
If turning or tilting a nozzle while pushing it against the
tape, the adhesive surface may stick to the nozzle.
6
Lubricate the slide section.
Lubricate the slide section referring to "1.2.1
Cleaning and lubricating nozzle slide
section" in this chapter.
7
Return detached nozzles to head.
n
NOTE
If detached nozzles from the nozzle station (option),
return them to the original storage positions.
Step 5
Nozzle tip cleaning tape
Nozzle tip cleaning tape
Adhesive surface
Push nozzle vertically.
3-8
3
Periodic maintenance items
1.2.4 ANC nozzle attaching/detaching tool
Regarding the machine equipped with a nozzle station (option / hereafter "ANC"), nozzles are detached
manually from the nozzle station for maintenance. In this case, if using the "ANC nozzle attaching/detaching
tool" (hereafter "tool"), up to 40 nozzles can be attached/detached at once.
There are tools for MU head unit and RS head unit. The following describes how to use the tool.
n

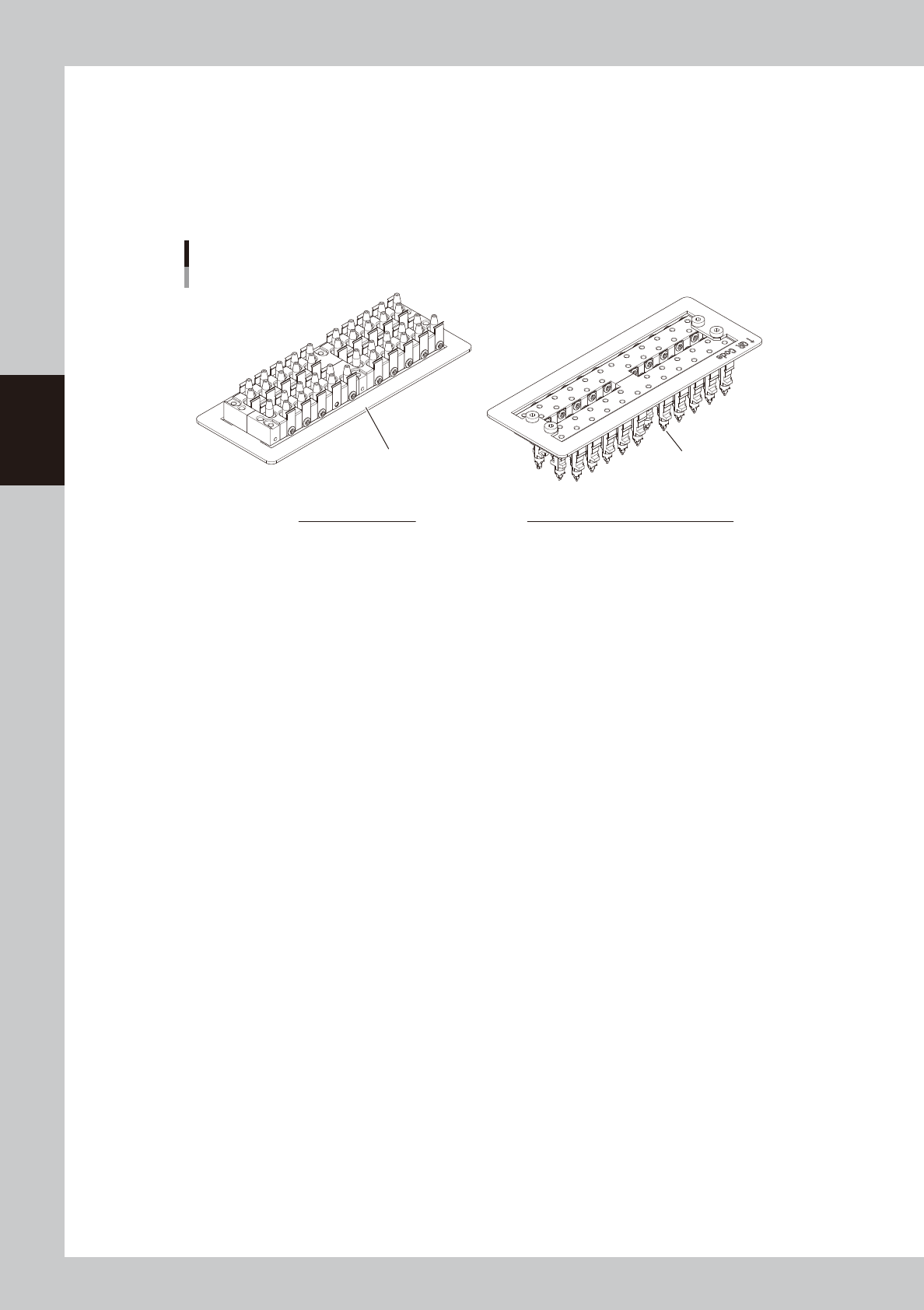

ANC nozzle attaching/detaching tool for MU head
ANC nozzle attaching/detaching tool
For MU head
Nozzles are not attached Nozzles are attached (use tool facing down)
ANC nozzle attaching/detaching tool
for MU head
50x/51x series nozzle
533E4-N9-00
n
Available nozzles
50X Series nozzles (501A, 503A nozzles, etc.) and 51X Series nozzles (511A, 512A nozzles, etc.)
3-9
3
Periodic maintenance items
n

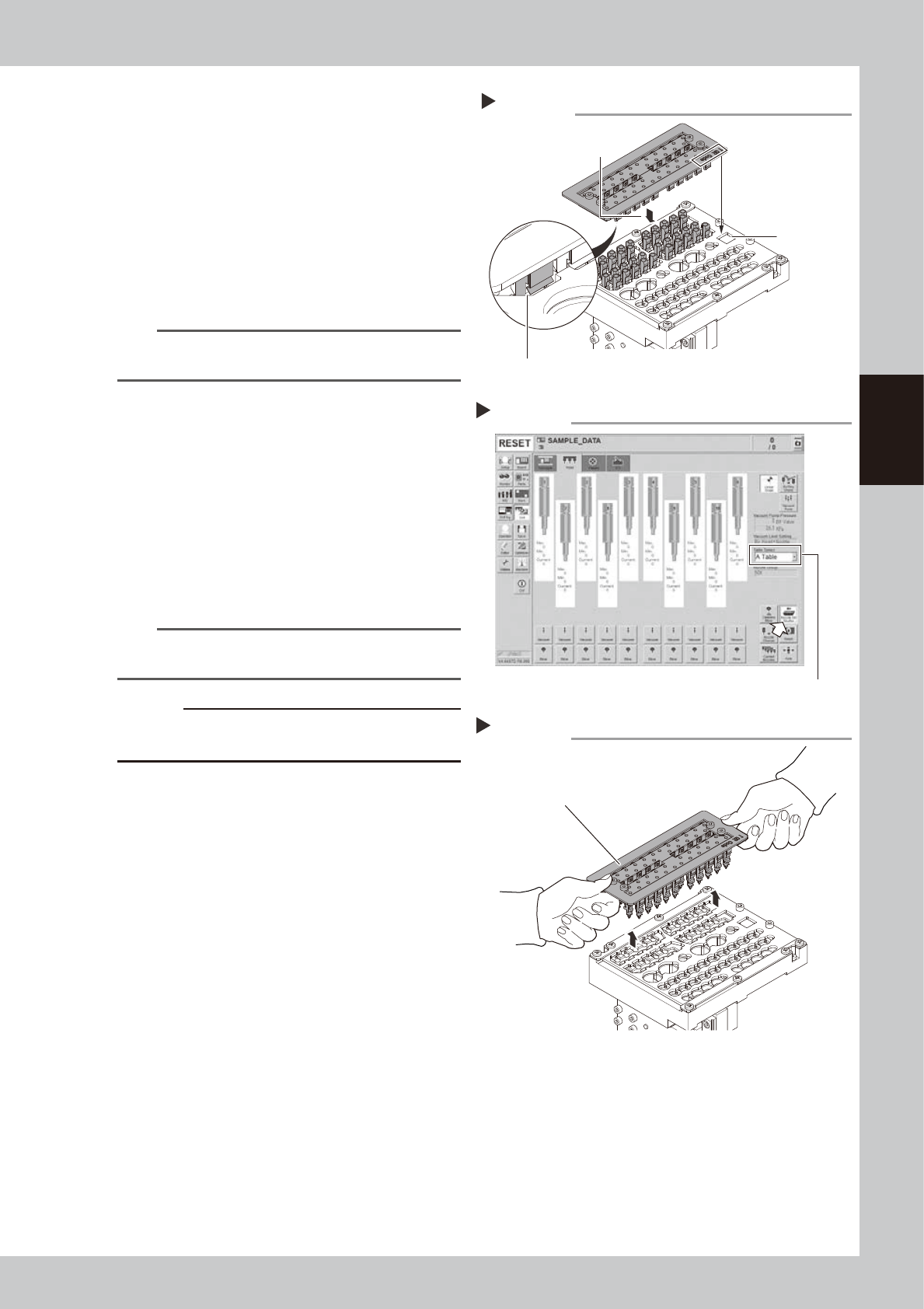

How to detach all nozzles for MU head
1
Set the tool on the nozzle station.
e
1. Press the emergency stop button and
then open the machine safety cover.
2. Set the tool vertically on the nozzles at
the nozzle station aligning the positions
of nozzles to be detached.
3. Check that the tool is set to nozzles
securely.
533E5-N9-00
n
NOTE
Set the tool aligning "
↑
QR Code" on the tool and QR
code on the nozzle station.
2
Open the nozzle station shutter.
1. Open [Unit] - [Head] screen.
2. Select head unit from "Table Select".
3. Press [Nozzle. Stn Shutter] button to open
the nozzle station shutter.
54301-N9-00
3
Raise the tool up.
Raise the tool up vertically and slowly.
533E6-N9-00
n
NOTE
Raise the tool up vertically and slowly to avoid the
nozzle tip from hitting the shutter, etc.
c
CAUTION
If raising the tool up fast and forcibly, nozzles or the
nozzle station may be damaged.
4
Close the nozzle station shutter.
Press the [Nozzle. Stn Shutter] button again
and close the nozzle station shutter.
n
How to attach all nozzles for MU head
Nozzle station - Opening the shutter
Step 2
Table Select
Setting tool
Step 1
Insert tool claw into groove of nozzle.
QR code
Align here.
Set tool vertically aligning
nozzles to be detached.
Raising tool up
Step 3
Raise tool up vertically to avoid
nozzle tip from hitting shutter.
