4 Working with Smart Pin Support at the Station
4.4 Testing Placement Head with Pin Picker Manually
102 User Manual / Bedienungsanleitung SIPLACE X-Series S, SX1/SX2 V2 Smart Pin Support Operation and Configura-
tion 05/2019

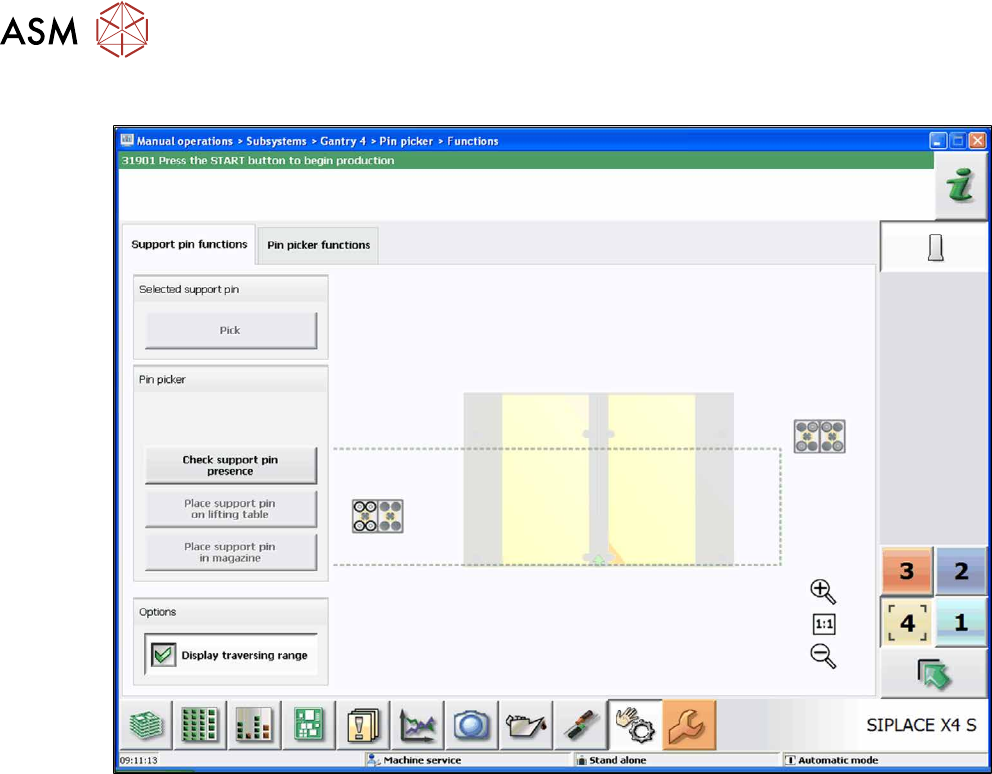

Sample(X4 S): Displaying traversing range
Fig.44: Support pin functions tab – Display traversing range
► Switch to the Pin picker functions tab.
4 Working with Smart Pin Support at the Station
4.4 Testing Placement Head with Pin Picker Manually
User Manual / Bedienungsanleitung SIPLACE X-Series S, SX1/SX2 V2 Smart Pin Support Operation and Configura-
tion 05/2019
103

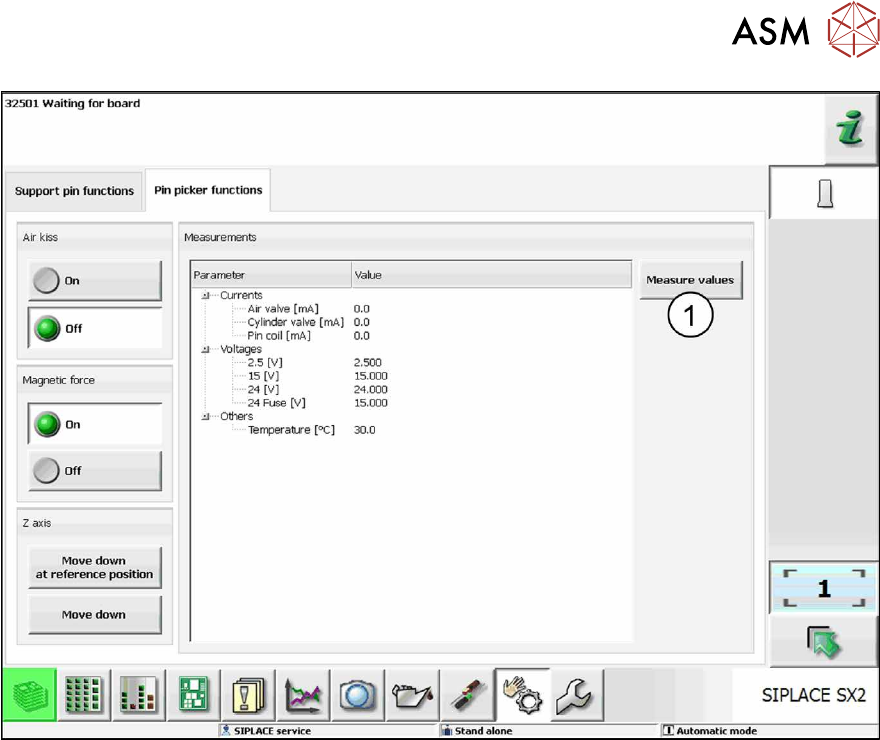

Fig.45: Pin picker functions tab
Under the Pin picker functions tab you can check and, if necessary, modify the following states:
●
Air kiss On / Off
The air kiss is switched on and off and the current state of the air kiss is displayed.
●
Magnetic force On / Off
The magnetic force is switched on and off and the current state of the magnetic force is dis-
played.
●
Z-axis Move down at reference position / Move down
The Z-axis is moved and the current state of the Z-axis is displayed.
The internal values for the placement head are displayed in a list.
► Click on the Measure values button (1) to update the list after you have made changes.
