5 Sample Applications 5.1 Support pin placement User Manual / Bedienungsanleitung SIPLACE X-Series S, SX1/SX2 V2 Smart Pin Support Operation and Configura- tion 05/2019 105 5 Sample Applications The following sample appl…
4 Working with Smart Pin Support at the Station
4.4 Testing Placement Head with Pin Picker Manually
104 User Manual / Bedienungsanleitung SIPLACE X-Series S, SX1/SX2 V2 Smart Pin Support Operation and Configura-
tion 05/2019
5 Sample Applications
5.1 Support pin placement
User Manual / Bedienungsanleitung SIPLACE X-Series S, SX1/SX2 V2 Smart Pin Support Operation and Configura-
tion 05/2019
105
5 Sample Applications
The following sample applications and workflows display how to use the Smart Pin Support func-
tion in practical cases.
5.1 Support pin placement
5.1.1 Not enough support pins
NOTICE
► No support pins were stored for later when the changeover table was changed.
► From SW 712.1 support pins can also be sorted between the gantries.
NOTICE
Not enough support pins
The following message could be shown in either of two cases:
► If too few support pins are available in the machine.
► From SW 712.1 more support pins can be defined in SIPLACE Pro than there are at
one time in the machine.
If too few support pins are available in the machine, the following notification will be displayed on
the GUI of the station software.
Fig.46: Not enough support pins are available in the machine.
► Click on the message(1) to see the details.
The number of missing support pins will be displayed (2). In this example, 4 support pin positions
are defined on the lifting table, of which one has not yet been set (3). However, there is no support
pin available any more in the machine(4).
You will be asked to make more support pins available and to confirm this with the Support pins
inserted(5) button.
5 Sample Applications
5.1 Support pin placement
106 User Manual / Bedienungsanleitung SIPLACE X-Series S, SX1/SX2 V2 Smart Pin Support Operation and Configura-
tion 05/2019
5.1.2 Support Pin Is Missing on the Lifting Table
If a support pin is missing at the expected position on the lifting table, the following dialog box is
displayed on the GUI of the station software.

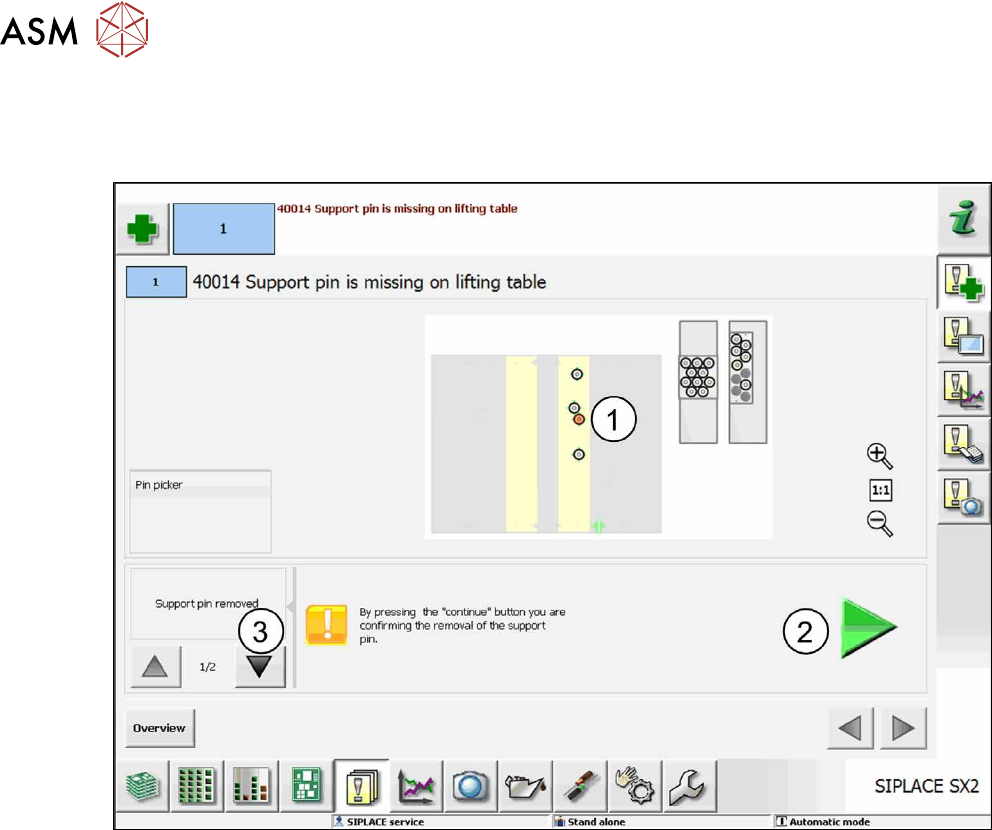

Fig.47: Support pin is missing on the lifting table (sample SX2)
The missing support pin is displayed in red (1).
► Click on the Continue button to confirm that the support pin has been removed (2).
or
► Click on the arrow (3) to open the following dialog box:
