3.3 Checking Production Parameters in the Recipe Editor
User Manual / Bedienungsanleitung SIPLACE X-Series S, SX1/SX2 V2 Smart Pin Support Operation and Configura-
tion 05/2019
93
Recipe Editor – Setting production parameters for support pin positions
► If necessary, set the production parameter Omit for the support pin positions in the selected
placement area.
Omitted support pin positions are displayed in red in the graphic.
The support pin positions may be verified for each processing area in the recipe.
With the
button you can stop the board at each stopper position and in that way
move the board through the whole line.

3 Configuring Smart Pin Support in SIPLACE Pro
3.4 Download to the Station
94 User Manual / Bedienungsanleitung SIPLACE X-Series S, SX1/SX2 V2 Smart Pin Support Operation and Configura-
tion 05/2019

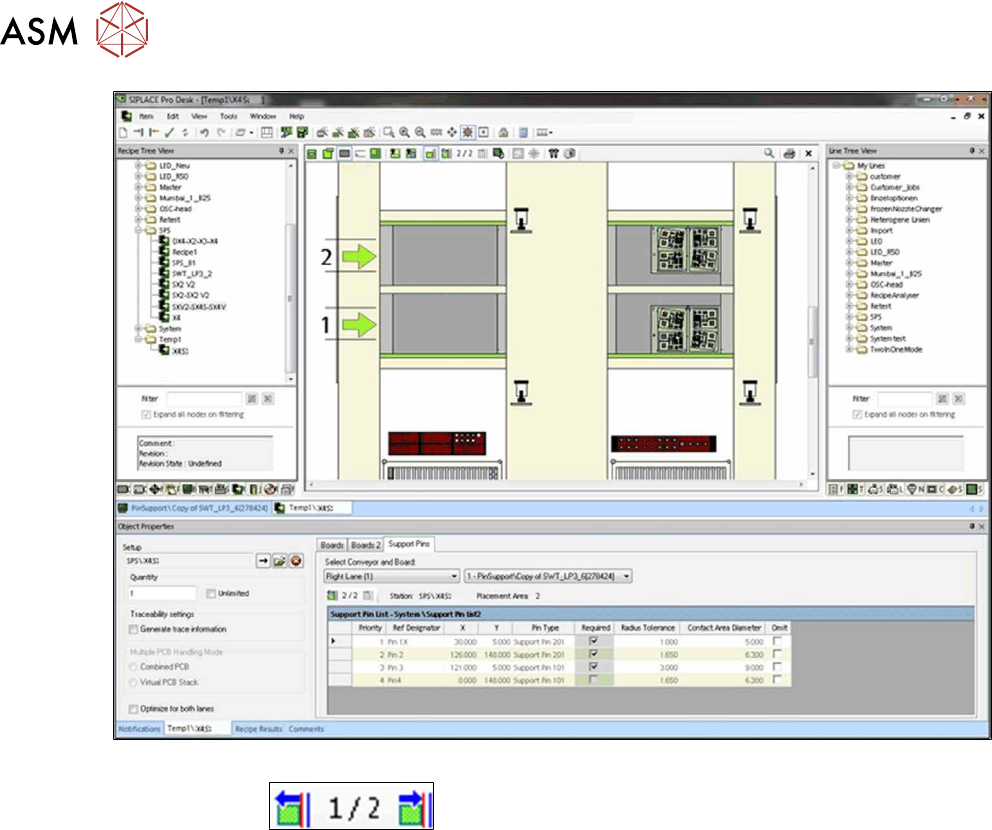

Fig.36: Recipe Editor - Move the board through the line (sample X4iS)
► Click on the
button to move the board to the next stopper position.
► Tick the support pin positions in all processing areas as described above.
The markings for the support pin positions are saved for each processing area.
3.4 Download to the Station
Prerequisite
●
The Smart Pin Support function has to be configured and activated for the station in the Setup
Editor as described in section 3.1 "Configuring Smart Pin Support in the Setup Editor " [}74].
The defined support pin positions and their properties (such as support pin type, Required, toler-
ance radius etc.) are sent to the station via the Converter of Line Control when the corresponding
recipe is downloaded at the station.
The order of the downloaded support pin positions corresponds to the order in the support pin list.
The order is handled by the priority setting as follows:
All support pin positions that are ticked as Required have the highest priority in the order of the pri-
ority setting, followed by the other positions in the order of the priority setting.

4 Working with Smart Pin Support at the Station
4.1 Smart Pin Support Setup View
User Manual / Bedienungsanleitung SIPLACE X-Series S, SX1/SX2 V2 Smart Pin Support Operation and Configura-
tion 05/2019
95
4 Working with Smart Pin Support at the Station
The Smart Pin Support function is supported by the station software as of the 706.0 version.
Prerequisites
●
The steps and prerequisites described in the preceding chapters have been performed and/or
are complied with.
●
The station is ready for operation.
●
A job with a setup containing a board with defined support pin positions has been defined in
SIPLACE Pro and downloaded to the station.
●
It is assumed that the support pins were automatically detected in the Autoconfiguration and
that the operator does not have to initiate special actions for the support pin positioning.
4.1 Smart Pin Support Setup View
► Switch to the Feeders, components and nozzles view.
► Switch to the Setup - Locations view.
The following dialog box will open.

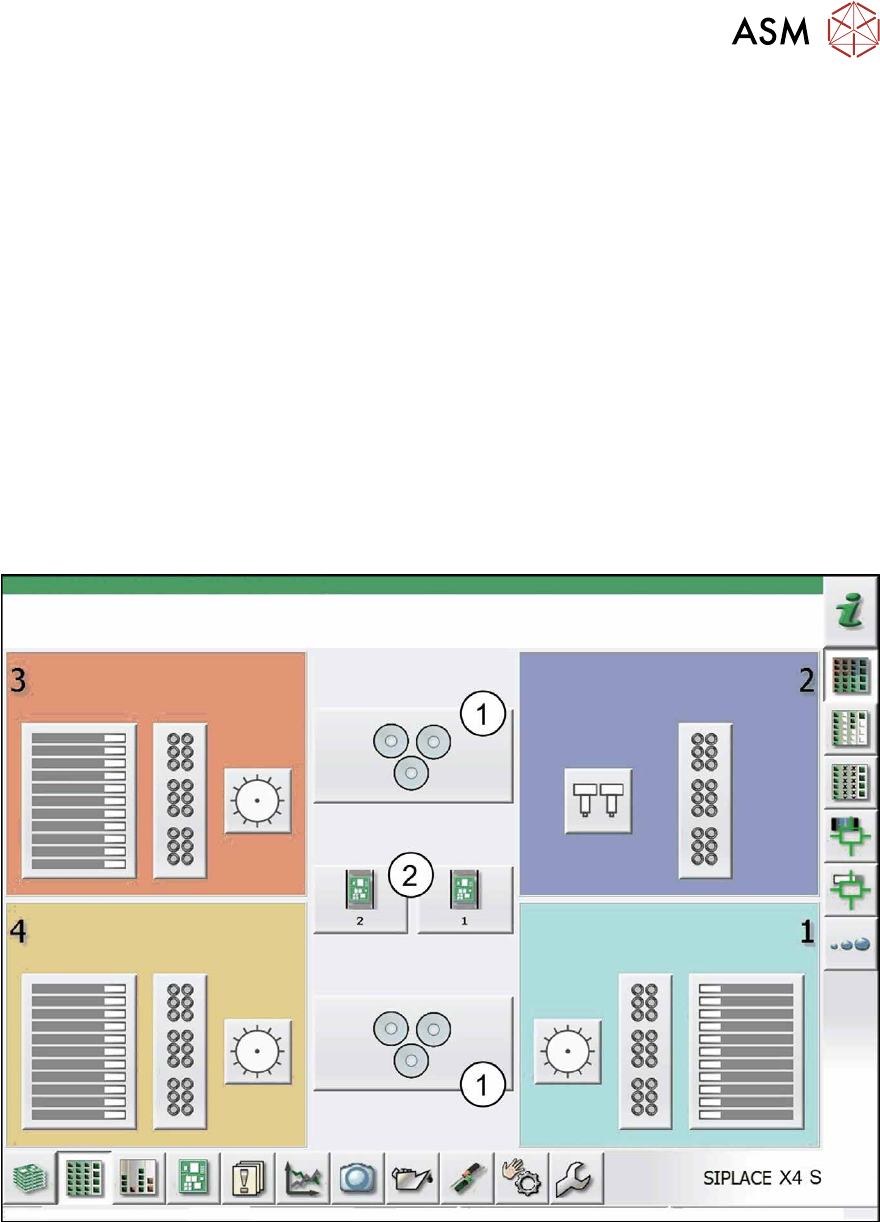

Fig.37: Setup – Locations (sample X4 S)
In the center, the Smart Pin Support Setup (1) will be displayed either below and/or above the
conveyor button (2).
► Click on the Smart Pin Support Setup button (1).
The following dialog box will open.
