3 Configuring Smart Pin Support in SIPLACE Pro
3.3 Checking Production Parameters in the Recipe Editor
90 User Manual / Bedienungsanleitung SIPLACE X-Series S, SX1/SX2 V2 Smart Pin Support Operation and Configura-
tion 05/2019
3.3 Checking Production Parameters in the Recipe Editor
The production parameters for the defined support pin positions can be checked in the Recipe Ed-
itor. Additionally, you can set the Omit property for each support pin position per placement area.
For this, the board has to be moved through the different placement areas. The support pin posi-
tions are saved for each processing area for the stations in the selected line.
If you don't make any changes in the Recipe Editor, the support pin positions that are defined in the
Board Editor are active for the board and are sent to the stations on which Smart Pin Support is in-
stalled and activated.
Meaning of the Markings
●
Required is ticked:
the support pin position has to be provided with a support pin before placement starts.
●
Omit is ticked:
the support pin position is omitted.
3.3.1 Setting Production Parameters
Prerequisites
●
SIPLACE Pro Desk is started.
●
A recipe is opened in the Recipe Editor.
●
The recipe contains a setup and a board with defined support pin positions.

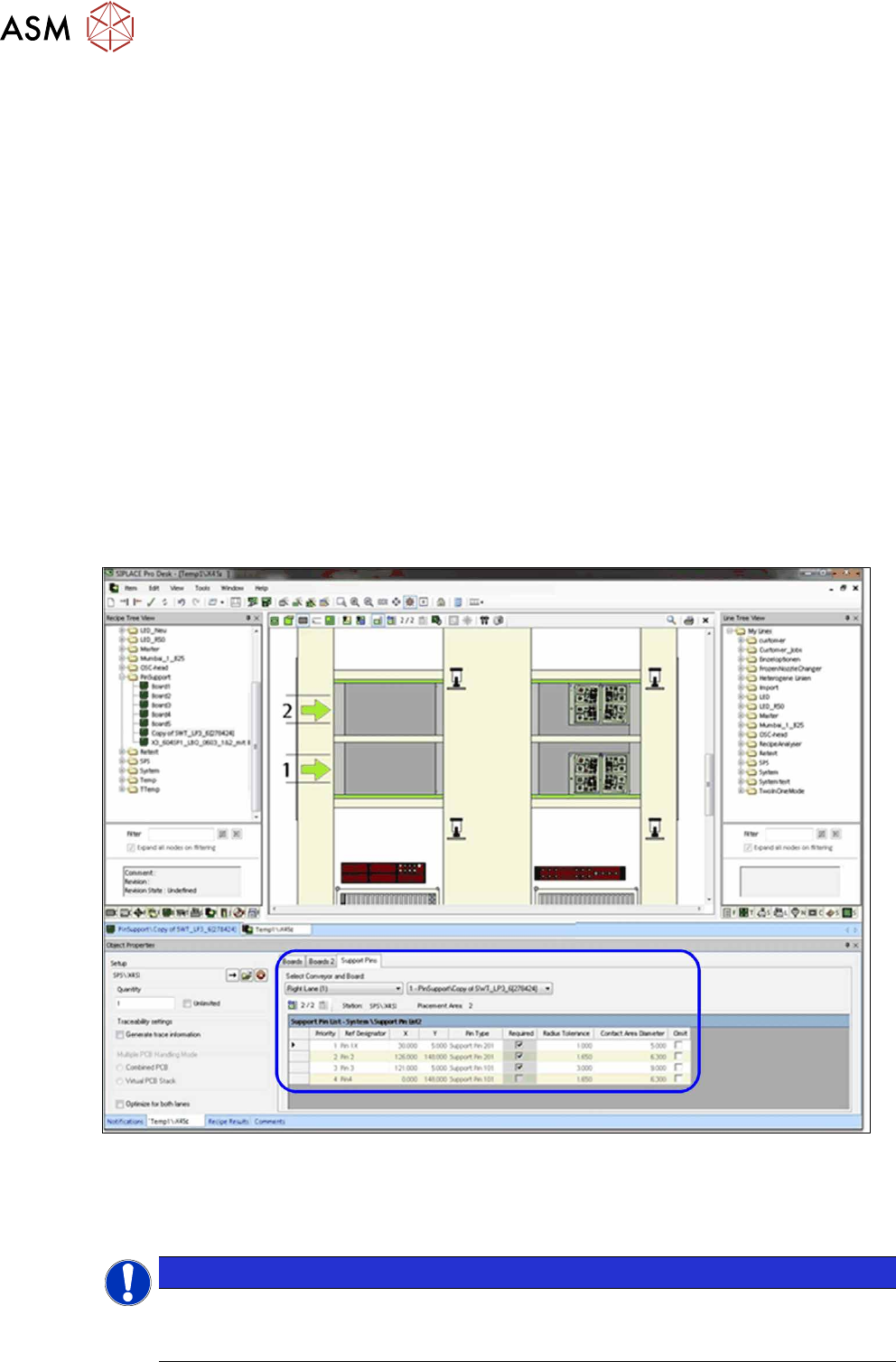

Fig.32: Recipe Editor – Board with support pin positions (sample X4iS)
► Switch to the Support Pins tab.
► Select the conveyor (already preset in single conveyor mode).
► Select a board with already defined support pin positions.
NOTICE
Support pin data is not displayed.
If the support pin data is not displayed during the first edit, click on the Create button to cre-
ate the support pin data.
3 Configuring Smart Pin Support in SIPLACE Pro
3.3 Checking Production Parameters in the Recipe Editor
User Manual / Bedienungsanleitung SIPLACE X-Series S, SX1/SX2 V2 Smart Pin Support Operation and Configura-
tion 05/2019
91

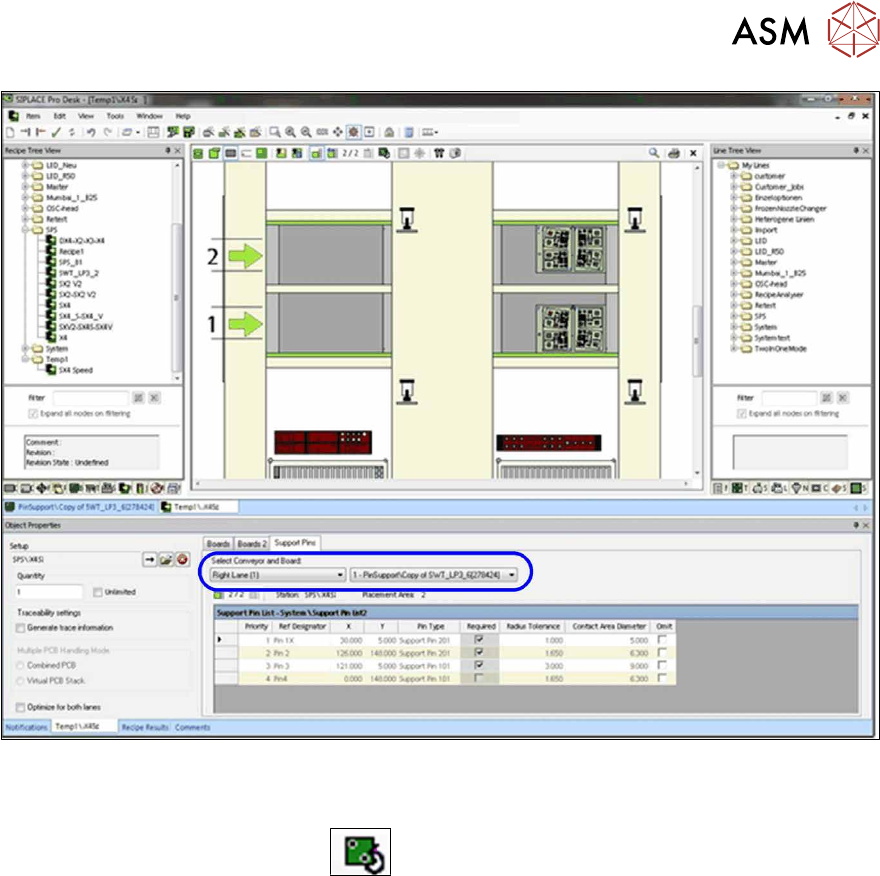

Fig.33: Recipe Editor – Selecting conveyor and board (sample X4iS)
The defined support pin positions are saved for each processing area. The settings for the currently
selected placement area are listed. In the graphic view you can switch back and forth between the
board top side and underside via the
button in order to verify both sides.
3 Configuring Smart Pin Support in SIPLACE Pro
3.3 Checking Production Parameters in the Recipe Editor
92 User Manual / Bedienungsanleitung SIPLACE X-Series S, SX1/SX2 V2 Smart Pin Support Operation and Configura-
tion 05/2019

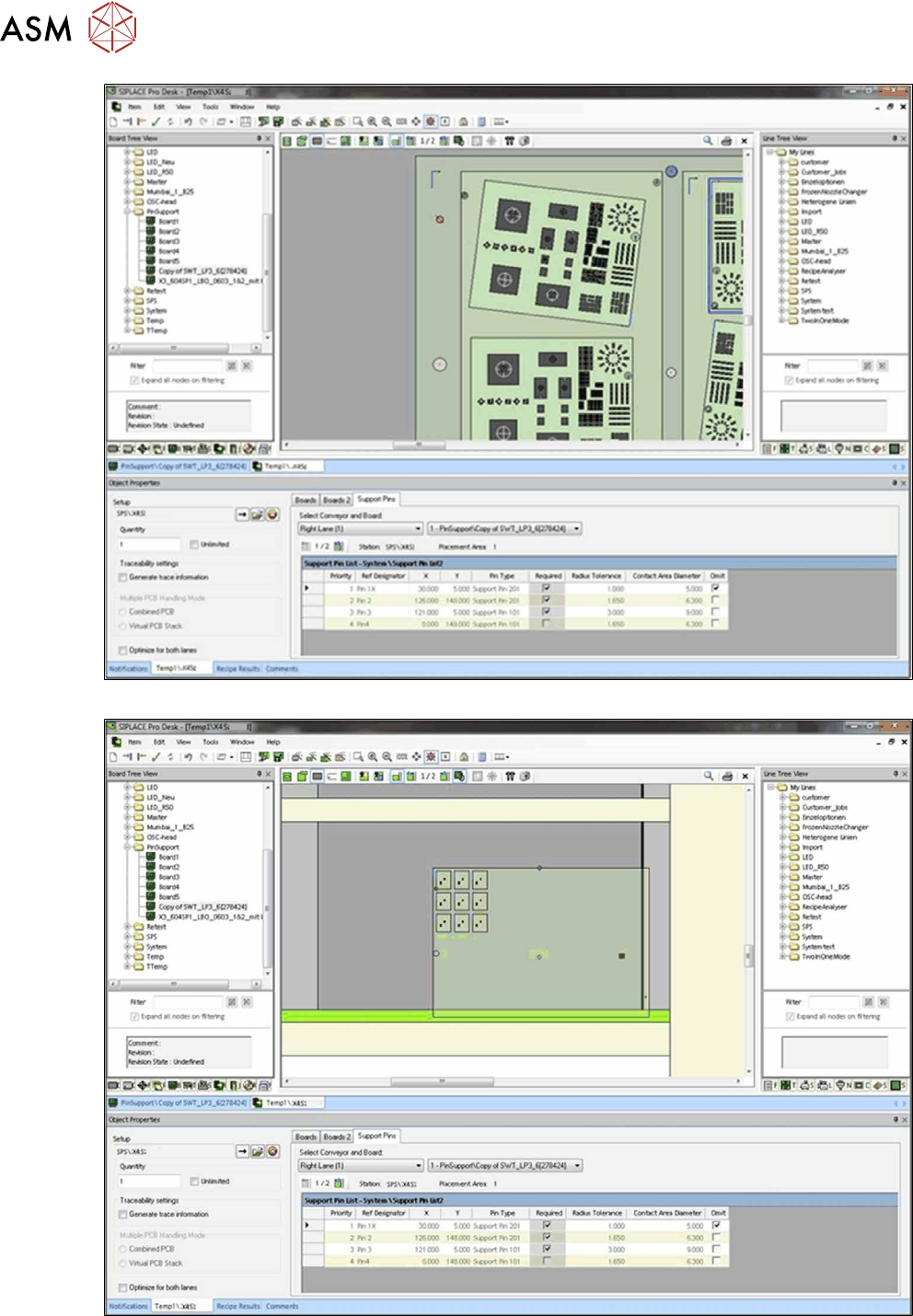

Fig.34: Recipe Editor – Board top side
Fig.35: Recipe Editor – Board underside
