3.2 Example 2 (Example of Placement Data Creation)

3.2.7 Priority Sorting Application for Multi-Model Repetitive Pat-

terns

The priority sorting function can also be used efficiently for production of

multi-model repetitive patterns where components for different programs must

be placed.

After entering placement data Un (1 to 99) in an independent form, the steps

(Un to Un) can be grouped into some blocks when the whole view of the P.C.B.

is considered, making it possible to specify placement order for each group.

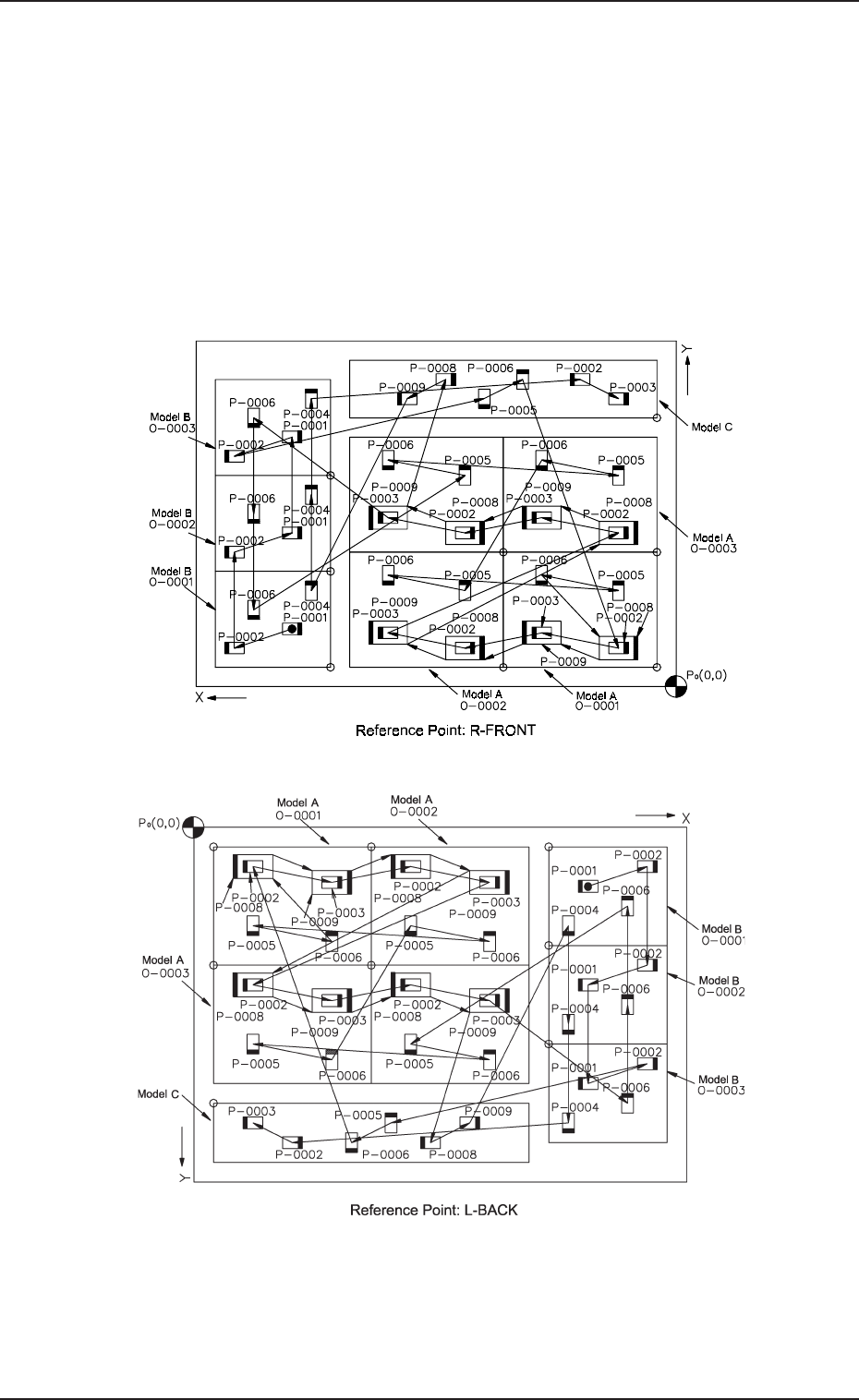

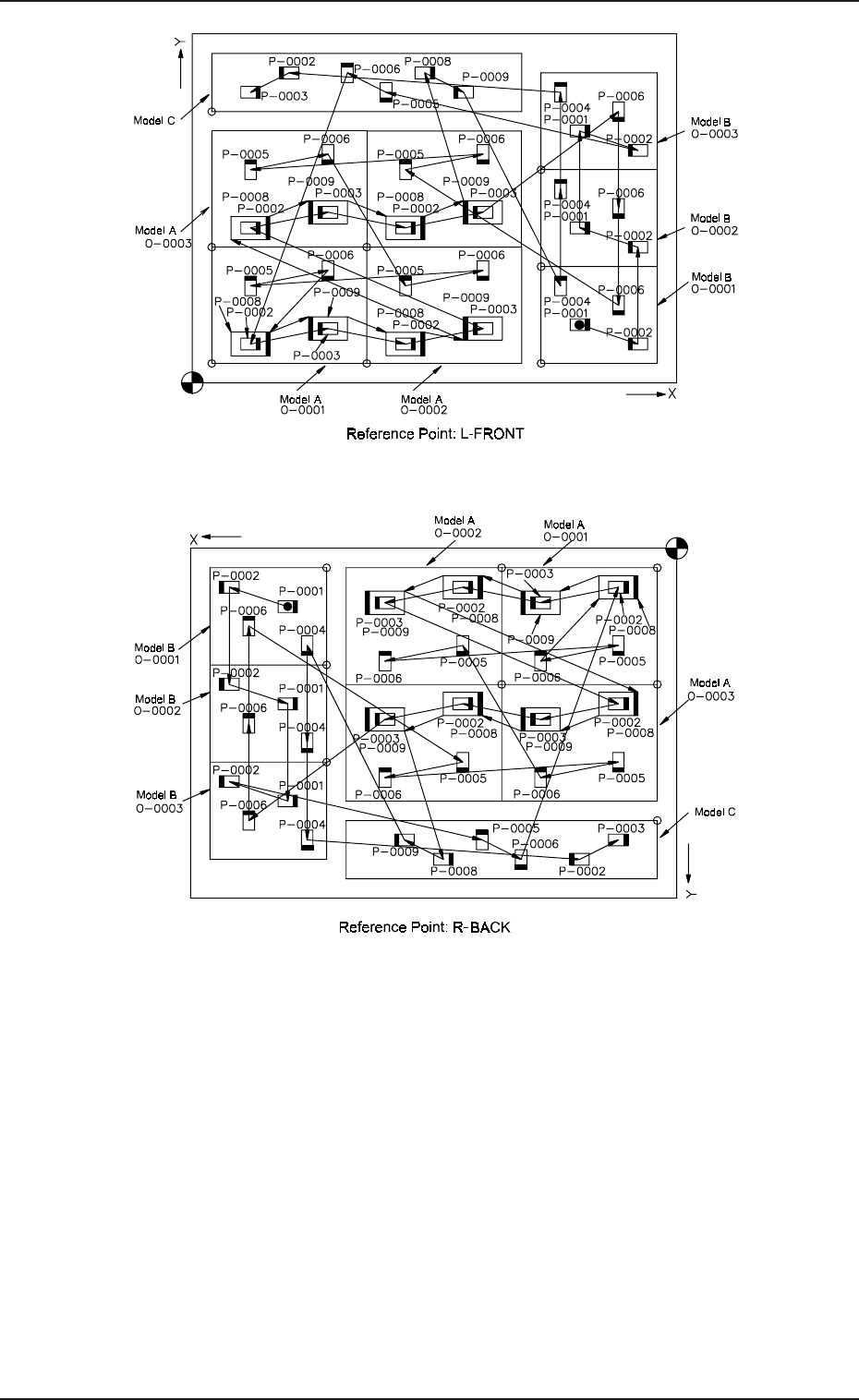

(1) Pattern Sample

2-90

Fig. 2B136

Fig. 2B135

0305-001 Tg0858-PM-PM

Fig. 2B137

Fig. 2B138

3.2 Example 2 (Example of Placement Data Creation)

2-91

0305-001 Tg0858-PM-PM

3.2 Example 2 (Example of Placement Data Creation)

(2) Example of Data Creation

Placement Data (P) U01: Model A

2-92

P-NO. X(mm) Y(mm) Z(THETA) H(mm) FDR S V C COMMENT

0000 +0.00 +0.00 +0

00’ +0.00 000 - 00 -

0001 +0.00 +0.00 +0°00’ +0.00 000 - 00 9

0002 +20.00 +10.00 +180°00’ +0.00 301 - 00 -

0003 +10.00 +5.00 +0°00’ +0.00 601 - 00 -

0004 +0.00 +0.00 +0°00’ +0.00 000 - 00 0

0005 +45.00 +5.00 +270°00’ +0.00 401 - 00 -

0006 +35.00 +10.00 +90°00’ +0.00 501 - 00 -

0007 +0.00 +0.00 +0°00’ +0.00 000 - 00 5

0008 +55.00 +10.00 +0

00’ +0.00 301 - 00 -

0009 +65.00 +5.00 +180°00’ +0.00 601 - 00 -

0010 +0.00 +0.00 +0°00’ +0.00 000 - 00 P

Placement Data (P) U03: Model C

P-NO. X(mm) Y(mm) Z(THETA) H(mm) FDR S V C COMMENT

0000 +0.00 +0.00 +0°00’ +0.00 000 - 00 -

0001 +10.00 +10.00 +0°00’ +0.00 301 - 00 -

0002 +30.00 +5.00 +180°00’ +0.00 601 - 00 -

0003 +0.00 +0.00 +0°00’ +0.00 000 - 00 7

0004 +10.00 +20.00 +90°00’ +0.00 401 - 00 -

0005 +0.00 +0.00 +0

00’ +0.00 000 - 00 1

0006 +30.00 +15.00 +270°00’ +0.00 501 - 00 -

0007 +0.00 +0.00 +0°00’ +0.00 000 - 00 Q

Placement Data (P) U02: Model B

P-NO. X(mm) Y(mm) Z(THETA) H(mm) FDR S V C COMMENT

0000 +0.00 +0.00 +0°00’ +0.00 000 - 00 -

0001 +0.00 +0.00 +0°00’ +0.00 000 - 00 1

0002 +10.00 +5.00 +0°00’ +0.00 301 - 00 -

0003 +30.00 +9.00 +180°00’ +0.00 601 - 00 -

0004 +0.00 +0.00 +0°00’ +0.00 000 - 00 2

0005 +10.00 +20.00 +90°00’ +0.00 401 - 00 -

0006 +30.00 +24.00 +270°00’ +0.00 501 - 00 -

0007 +0.00 +0.00 +0°00’ +0.00 000 - 00 5

0008 +10.00 +5.00 +0°00’ +0.00 302 - 00 -

0009 +30.00 +9.00 +180°00’ +0.00 602 - 00 -

0010 +0.00 +0.00 +0°00’ +0.00 000 - 00 P

Table 2B41

Table 2B42

Table 2B43
