Pilot Stopper Action Mode

This sets the change of the pilot stopper action when the al-

ready placed P.C.B. is output from the positioning section.

[STANDARD] : The pilot stopper is lowered and P conveyor

and R conveyor are turned normally to output

the P.C.B.

[EXIT POS] : This setting prevents the pilot stopper from

rising until the P.C.B. detection photosensor

has detected the P.C.B., so that the pilot stop

per does not push up the P.C.B.

Pilot Stopper Position

Sets the P.C.B. stopper position when the components are

placed.

[STANDARD] : The stopper is operated in normal se

quence, as follows.

P.C.B. Clamp - Placement - Stopper Down -

Output

[LOW. POS] : The P.C.B. stopper is moved to the low

est position during the component place

ment. It operates as follows:

P.C.B. Clamp - Stopper Down - Place

ment - Output

3-11

2. P.C.B. TRANSFER MODE SET-UP Display

Fig. 2C22

0305-001 Tg0858-PM-PM

Fig. 2C23

LINE LETTER

Set a line letter (interface address to the programming device

(option)) in the component placement system.

• Data Input Range: A to Z (Internal Data: ASCII)

DEVICE NUMBER

Set a device number in the component placement system line.

This data is used to identify the object machine when several

machines (same models) are assembled, forming one system

line.

(Interface Address to Programming Device)

• Data Input Range: 01 to 26 (Internal Data: ASCII “A to Z”)

3. MACHINE COMM. ADDRESS SET-UP Display

3-12

3. MACHINE COMM. ADDRESS SET-UP Display

When data is exchanged between a machine and an external device such as a

programming device (option), it is required to specify the machine (line letter

and device No.).

*1 When a component placement system line is constructed, it is advisable

that a common line letter be used in one system (combination of input,

main, and output machines).

*2 “Device Number” is an address data used to identify the object machine

when there is another machine of the same type in the same line.

Notes: (a) When data is exchanged between the main machine and the pro-

gramming device (option), the same line letter must be entered on

the programming device side.

(b) Even if a machine address data is changed, machine operation

remains unchanged. However, if an address data is changed after

each offset data for the machine is stored in the programming

device, the offset data may not be reloaded to the machine.

When the [MACHINE COMM. ADDRESS SET-UP] key is pressed at the

“DEVICE DATA” display, the following display appears on the screen.

Fig. 2C24

Fig. 2C25

0305-001 Tg0858-PM-PM

4. Description of Pallet Direction Detect Mode Selection Display

3-13

4. Description of Pallet Direction Detect Mode Selec-

tion Display

This decides whether or not the pallet direction should be detected.

When the [PALLET DIRECTION DETECT MODE] key is pressed in the

“DEVICE SETTING DATA” display, the following display appears:

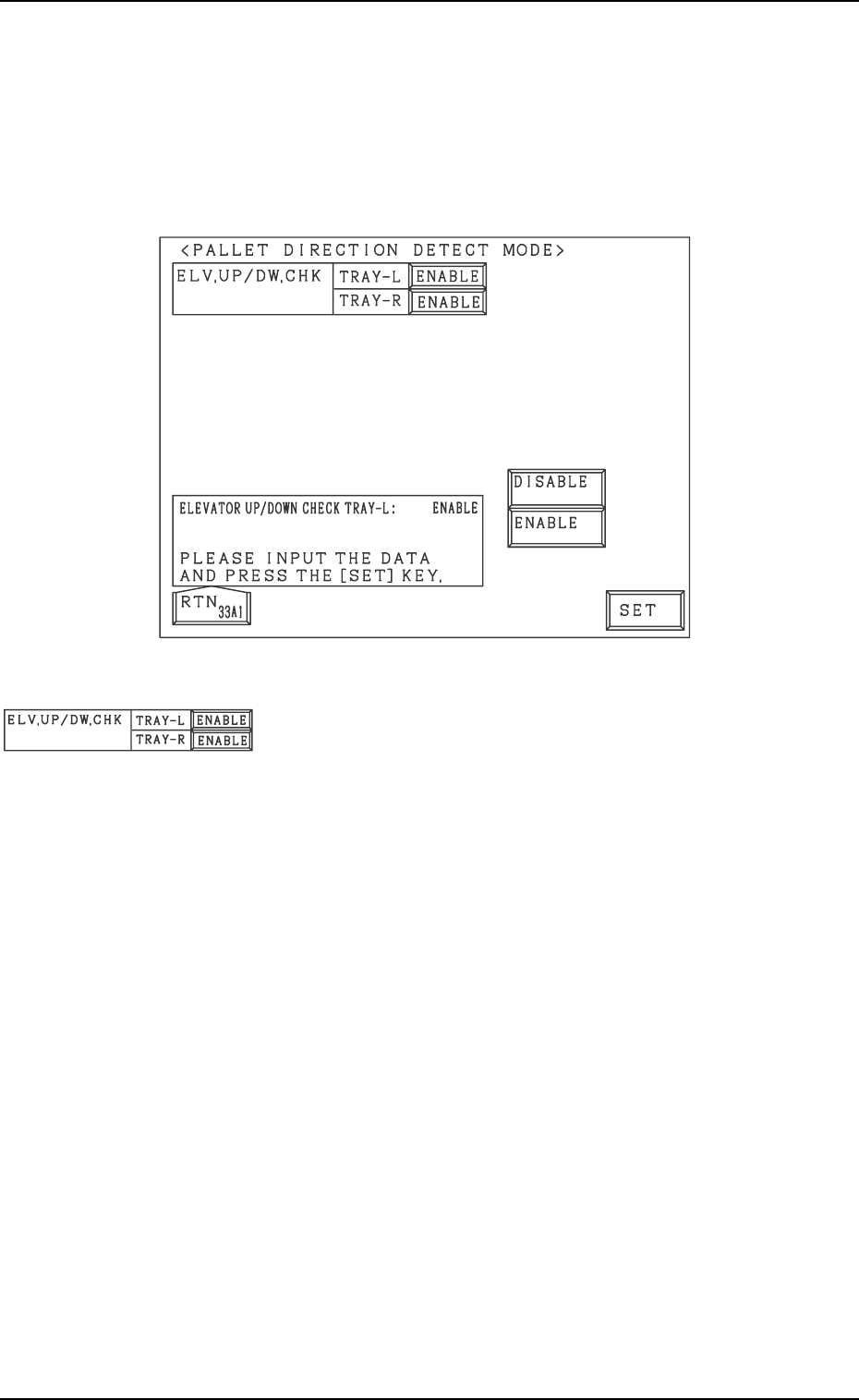

Fig. 2C26

ELV.UP/DW.CHK, TRAY L, TRAY R

This determines whether or not the pallet direction should be

detected for each tray before the elevator is lifted.

Select from [ENABLE] and [DISABLE].

Note: If the pallet direction detection sensor has not been

correctly adjusted and then [ENABLE] is selected

when in that condition, the operation is not available

because of the detection error.

Fig. 2C27
