4.5 COMPONENT DATA Display
4.5.5 OFFSET X AUTO SETTING Display (Option)
Press the [OFFSET X AUTO SET] key at the “TRAY (L) STEPS INFOR-

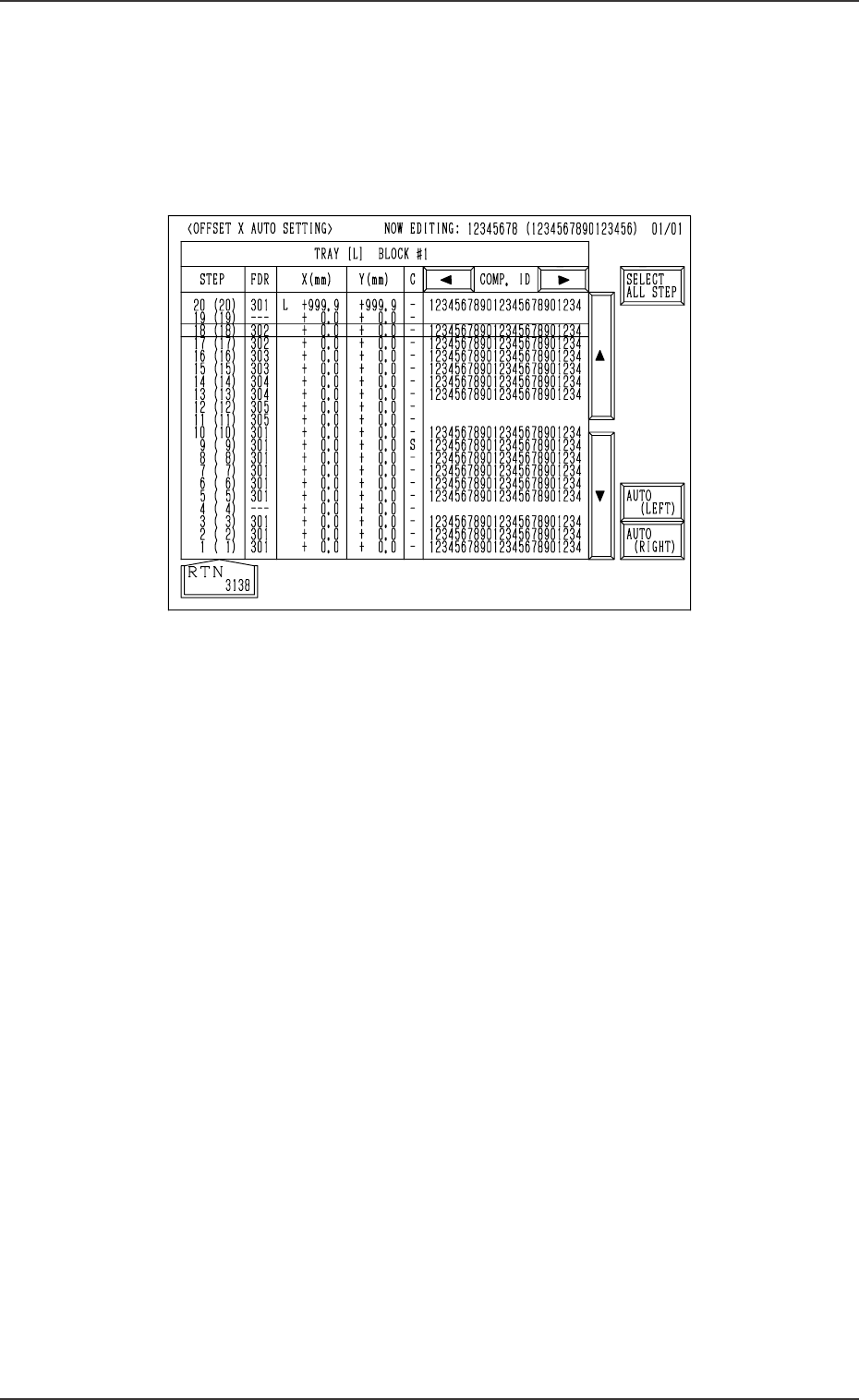

MATION” display (Fig. 2B163). The following display appears on the screen.
When the [OFFSET X AUTO SET] key is pressed at the “TRAY (R) STEPS
INFORMATION” display, the “OFFSET X AUTO SETTING” display for
Tray R appears on the screen.
2-116
Fig. 2B167
Operation Procedure
• Batch Setting
(1) Press the [SELECT ALL STEP] key.
All steps are selected and the background color turns blue.
(To cancel the selection of all steps, press the [SELECT ALL STEP]
key again.)
(2) Press the [AUTO (LEFT)] or the [AUTO (RIGHT)] key.
All X offset parameters are set at a time.
• Individual Selection
(1) Move the line cursor to the step No. for parameters to be set.
(2) Press the [AUTO (LEFT)] or the [AUTO (RIGHT)] key.
(3) X offset parameters are set for the step No. where the line cursor was
located.
After the above operation, “L” or “R” appears before the X offset parameter.
0305-001 Tg0858-PM-PM
4.6 PLACEMENT DATA (P) Display
(1) Press the [PLACEMENT DATA U01] key at the “PATTERN PRO-

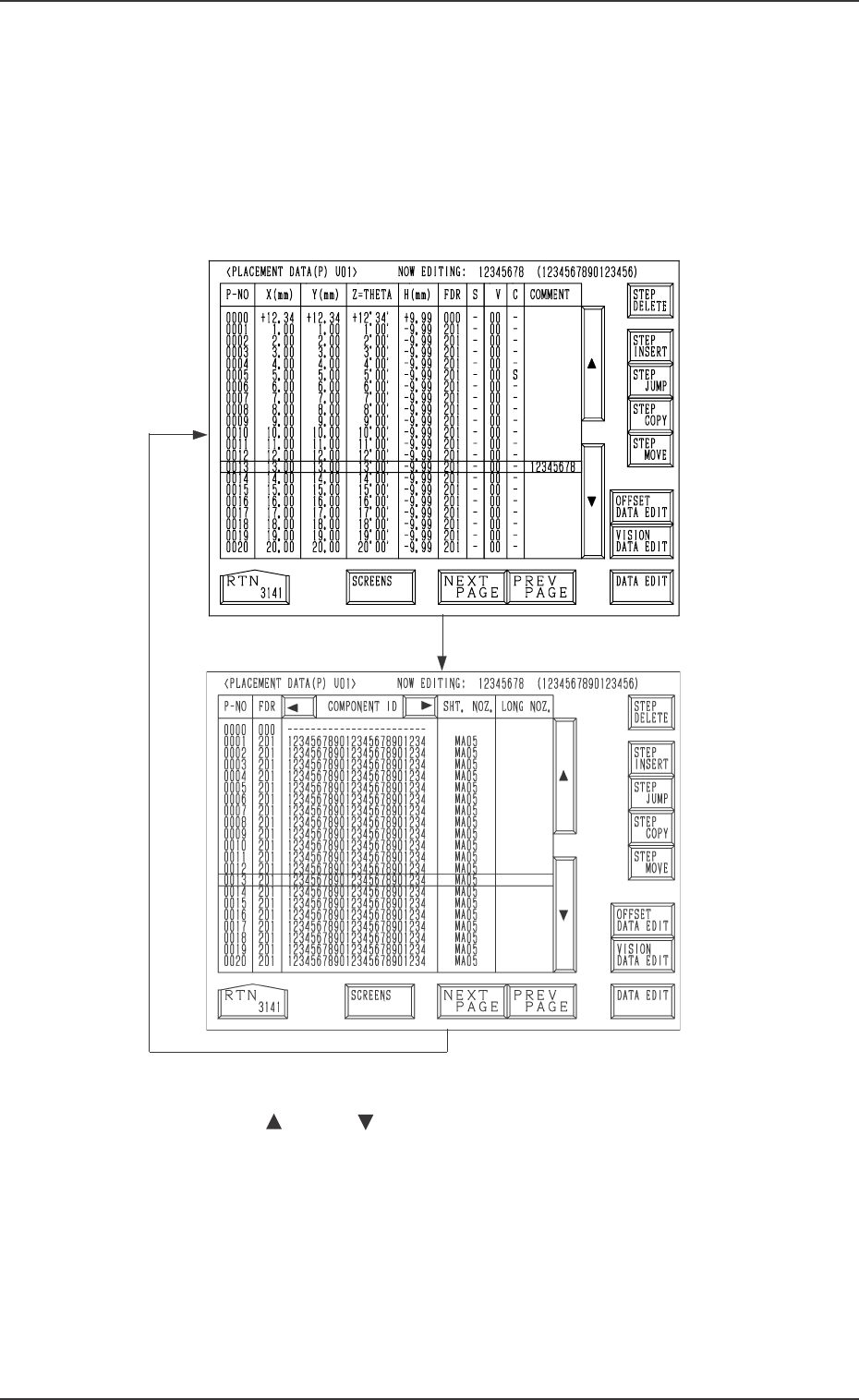

GRAM EDIT” display. The following display appears on the screen.
Pressing the [SCREENS] key at this display opens another “PLACE-
MENT DATA (P) U01” display.
The “PLACEMENT DATA (P) U02” and the subsequent dis-
plays look almost the same.
Fig. 2B168
Fig. 2B169
[SCREENS] Key
[SCREENS] Key
4.6 PLACEMENT DATA (P) Display
2-117
(2) Move the line cursor to the step No. of the data to be edited.
(Use the [ ] or the [ ] key. )
(3) Press the key required for editing.
[OFFSET DATA EDIT] Key
[VISION DATA EDIT] Key
[DATA EDIT] Key
(4) Open the display required for your editing.
Ref.: Similar procedures can be followed for data editing at the “PLACE-
MENT DATA (O) U01” and “PLACEMENT DATA (V) U01” dis-
plays.
0305-001 Tg0858-PM-PM
*1
2-118
4.6.1 Special Operation (Step Delete) for Placement Data
(1) Move the line cursor to the step No. of the data to be deleted.
(2) Press the [STEP DELETE] key.
The data of the step No. at the line cursor is deleted.
The line at the line cursor position is deleted and the subsequent lines
scroll up.
4.6.2 Special Operation (Step Insert) for Placement Data
(1) Move the line cursor to the step No. of the data to be inserted.
(2) Press the [STEP INSERT] key.
A new step line (placement data) is inserted below the step No. at the
cursor position.
4.6.3 Special Operation (Step Jump) for Placement Data

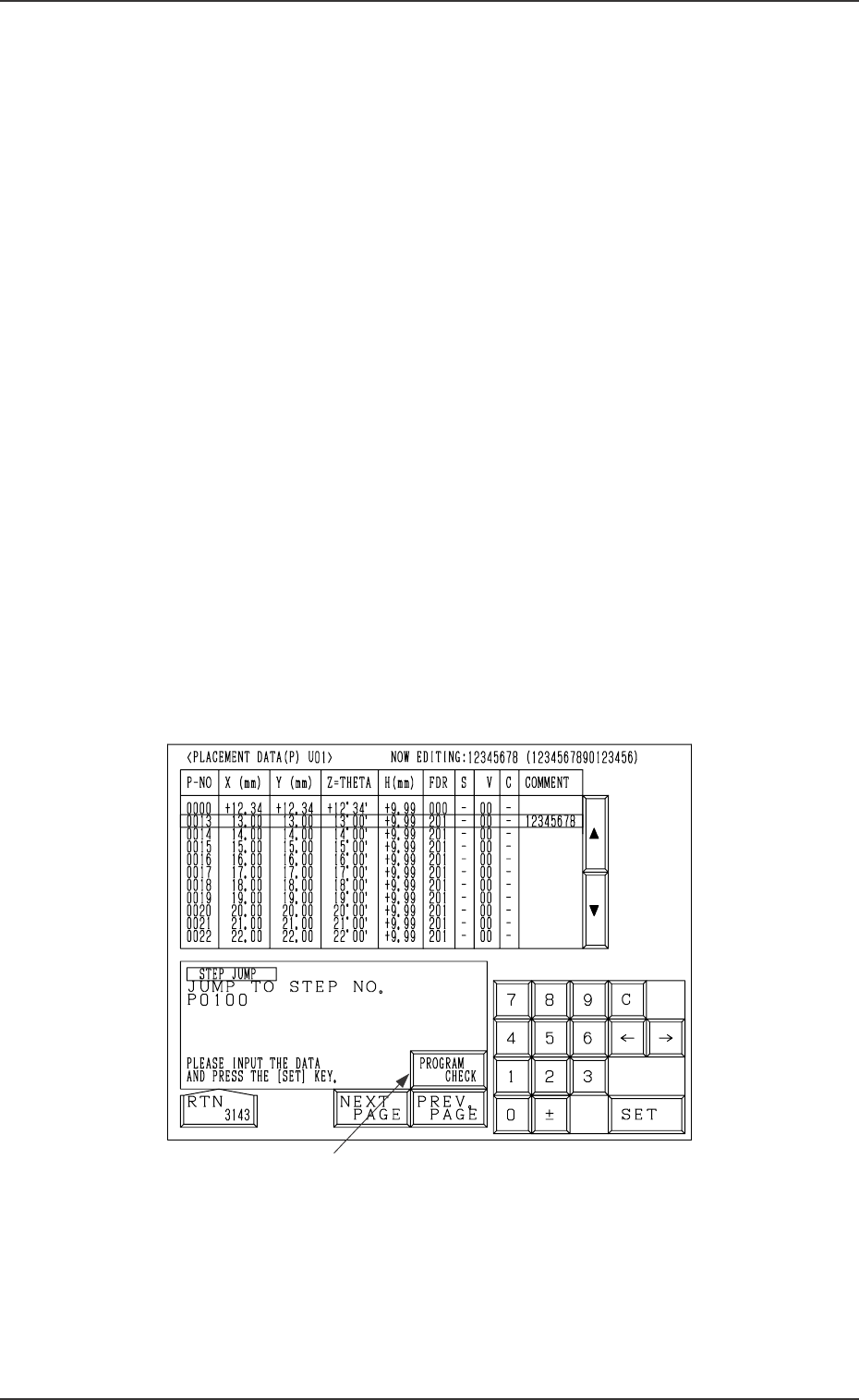

(1) When the [STEP JUMP] key is pressed at the “PLACEMENT DATA
(P) U01” display (Fig. 2B168 or Fig. 2B169), the following display ap-
pears on the screen.
Pressing the [STEP JUMP] key at the “PLACEMENT DATA
(O) U01” or the “PLACEMENT DATA (V) U01” display follows
the similar hierarchical sequence.
4.6 PLACEMENT DATA (P) Display
Fig. 2B170
(2) Enter the step No. to jump to, using the ten-key pad and press the [SET]
key.
