0305-001 Tg0858-PM-PM
3.2 Example 2 (Example of Placement Data Creation)
Placement Data (O) U01
2-93
Notes: (a) Enter a numeral (0 to 9) as a delimiter (control command) in the
“C” data field for the priority sorting function.
• The machine does not place components for the steps where
block delimiters are set.
• One block starts from the step after a delimiter and ends at the
step before the next delimiter.
(b) The machine places components on a multi-unit P.C.B. (repeti-
tive patterns) in order of blocks “0, 1, 2, ... 9” (delimiters).
Placement Data (O) U03
Placement Data (O) U02
O-NO. X(mm) Y(mm) Z(THETA) H(mm) C COMMENT
0000 +0.00 +0.00 +0°00’ +0.00 -
0001 +5.00 +5.00 +0°00’ +0.00 -
0002 +45.00 +5.00 +0°00’ +0.00 -
0003 +5.00 +35.00 +0°00’ +0.00 -
0004 +45.00 +35.00 +0°00’ +0.00 -
0005 +0.00 +0.00 +0°00’ +0.00 E
O-NO. X(mm) Y(mm) Z(THETA) H(mm) C COMMENT
0000 +0.00 +0.00 +0°00’ +0.00 -
0001 +90.00 +5.00 +0
°
00’ +0.00 -
0002 +90.00 +30.00 +0°00’ +0.00 -
0003 +90.00 +55.00 +0°00’ +0.00 -
0004 +0.00 +0.00 +0°00’ +0.00 E
O-NO. X(mm) Y(mm) Z(THETA) H(mm) C COMMENT
0000 +0.00 +0.00 +0°00’ +0.00 -
0001 +5.00 +70.00 +0°00’ +0.00 -
0002 +0.00 +0.00 +0°00’ +0.00 E
Table 2B44
Table 2B45
Table 2B46
0305-001 Tg0858-PM-PM
Order of Placement
(2.1) P-0001 and P-0002 of U02: O-0001 → P-0002 and P-0001 of U02: O-
0002 → P-0001 and P-0002 of U02: O-0003
(2.2) P-0005 and P-0006 (Block “0”) of U03
(2.3) P-0002 and P-0003 of U01: O-0001 → P-0003 and P-0002 of U01: O-
0002 → P-0002 and P-0003 of U01: O-0003 → P-0003 and P-0002
(Block “1”) of U01: O-0004
(2.4) P-0006 of U02: O-0001 → P-0006 of U02: O-0002 → P-0006 (Block
“1”) of U02: O-0003
(2.5) P-0005 and P-0006 of U01: O-0001 → P-0006 and P-0005 of U01: O-
0002 → P-0005 and P-0006 of U01: O-0003 → P-0006 and P-0005
(Block “2”) of U01: O-0004
(2.6) P-0008 and P-0009 of U01: O-0001 → P-0009 and P-0008 of U01: O-
0002 → P-0008 and P-0009 of U01: O-0003 → P-0009 and P-0008
(Block “5”) of U01: O-0004
(2.7) P-0008 and P-0009 (Block “5”) of U03
(2.8) P-0004 of U02: O-0001 → P-0004 of U02: O-0002 → P-0004 (Block
“7”) of U02: O-0003
(2.9) P-0002 and P-0003 (Block “9”) of U03
3.2 Example 2 (Example of Placement Data Creation)
2-94
0305-001 Tg0858-PM-PM
3.2 Example 2 (Example of Placement Data Creation)
3.2.8 Data for Polar Coordinate Conversion Function
When unit P.C.B.’s are arranged at arbitrary angles on a multi-unit P.C.B., this
function converts polar coordinates after parameters (arrangement angle of
each pattern) are entered in the “Z (THETA)” data field of the placement data
(O).

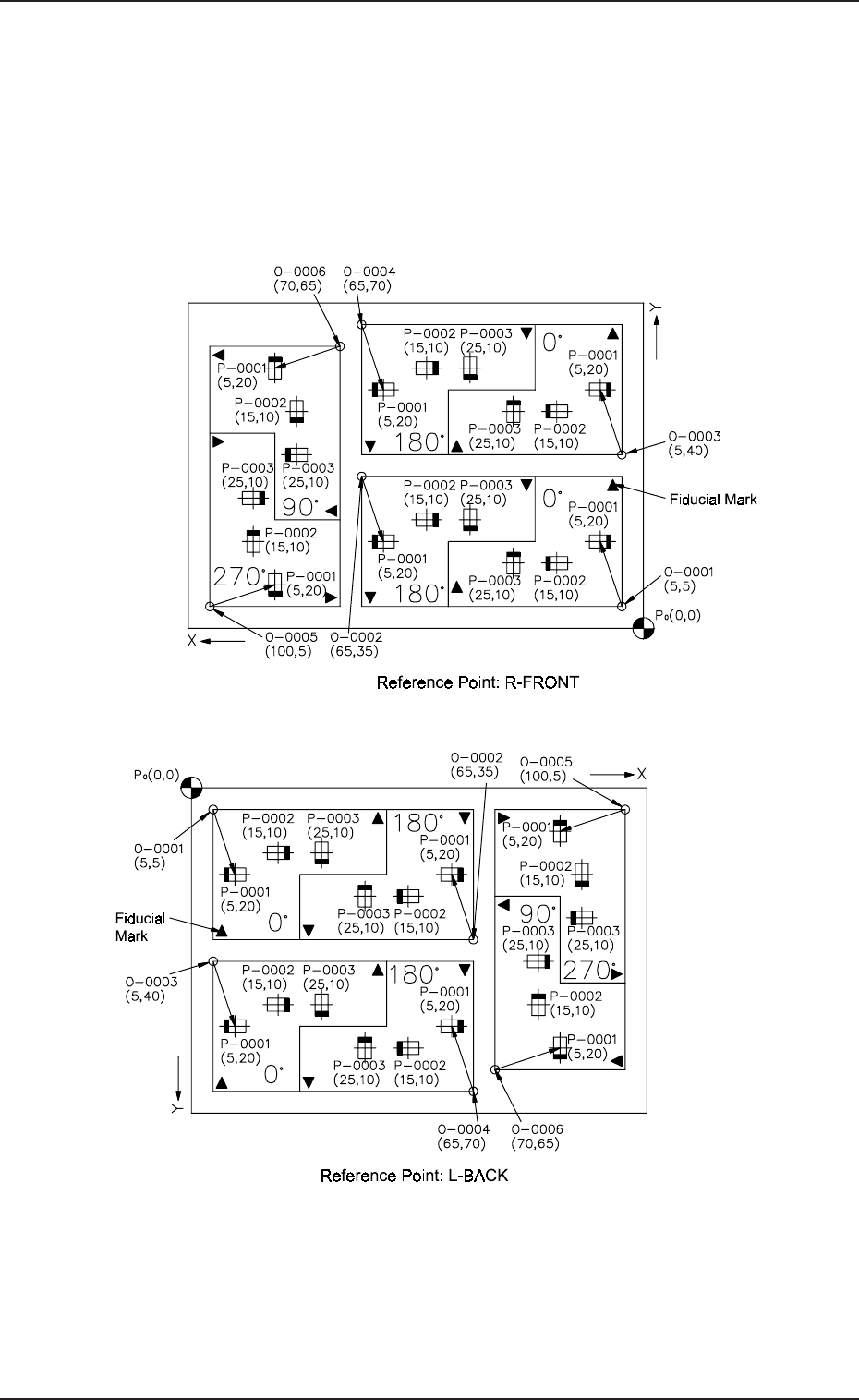

(1) Pattern Sample
2-95
Fig. 2B140
Fig. 2B139
