0305-001 Tg0858-PM-PM Fig. 2E105 TRA Y L TRA VERSE X, Y This offset data is used to adjust the position where a pallet is drawn out from the magazine by the traverse shaft. The devia- tion from the design position can be…
0305-001 Tg0858-PM-PM
13. ROOM TEMPERATURE AT LIGHTING TEACHING
Display
When the [ROOM TEMPERATURE AT LTG TEACHING] key is pressed at
the “OFFSET DATA” display, the following display appears on the screen.
13. ROOM TEMPERATURE AT LIGHTING TEACHING Display
5-43
Fig. 2E104
Reserved Data
0305-001 Tg0858-PM-PM
Fig. 2E105
TRAY L TRAVERSE X, Y
This offset data is used to adjust the position where a pallet is
drawn out from the magazine by the traverse shaft. The devia-
tion from the design position can be set in these data boxes.
X (Horizontal)
When a pallet is drawn out, the traverse shaft moves as far as
the specified distance where the parameter set in this data box
is added.
To increase the stroke in the pallet drawing direction, a plus
value must be entered.
Y (Vertical)
The set value is added to the travel of Beam A when compo-
nents are picked up from the tray.
As the traverse shaft is driven in one direction due to the me-
chanical structure, the adjustment of the Y direction is per-
formed using the Y axis of Beam A.
When the actual tray drawing position is located at the lower
left area (viewed from the top), compared with the design po-
sition (P.C.B. Positioning Reference: PO), plus values must be
entered in the “X” and “Y” data boxes.
14. TRAY FEEDER OFFSET Display (Option)
When the [TRAY FEEDER OFFSET] key is pressed at the “OFFSET DATA”
display, the following display appears on the screen.
14. TRAY FEEDER OFFSET Display (Option)
Fig. 2E107
5-44
Fig. 2E106
TC
+576.000 mm
+325.000 mm
+535.000 mm
PO
Tray L
+755.000 mm (Design Stroke of Pallet Movement)
Y(+)
X(+)
Offset Signs
0305-001 Tg0858-PM-PM

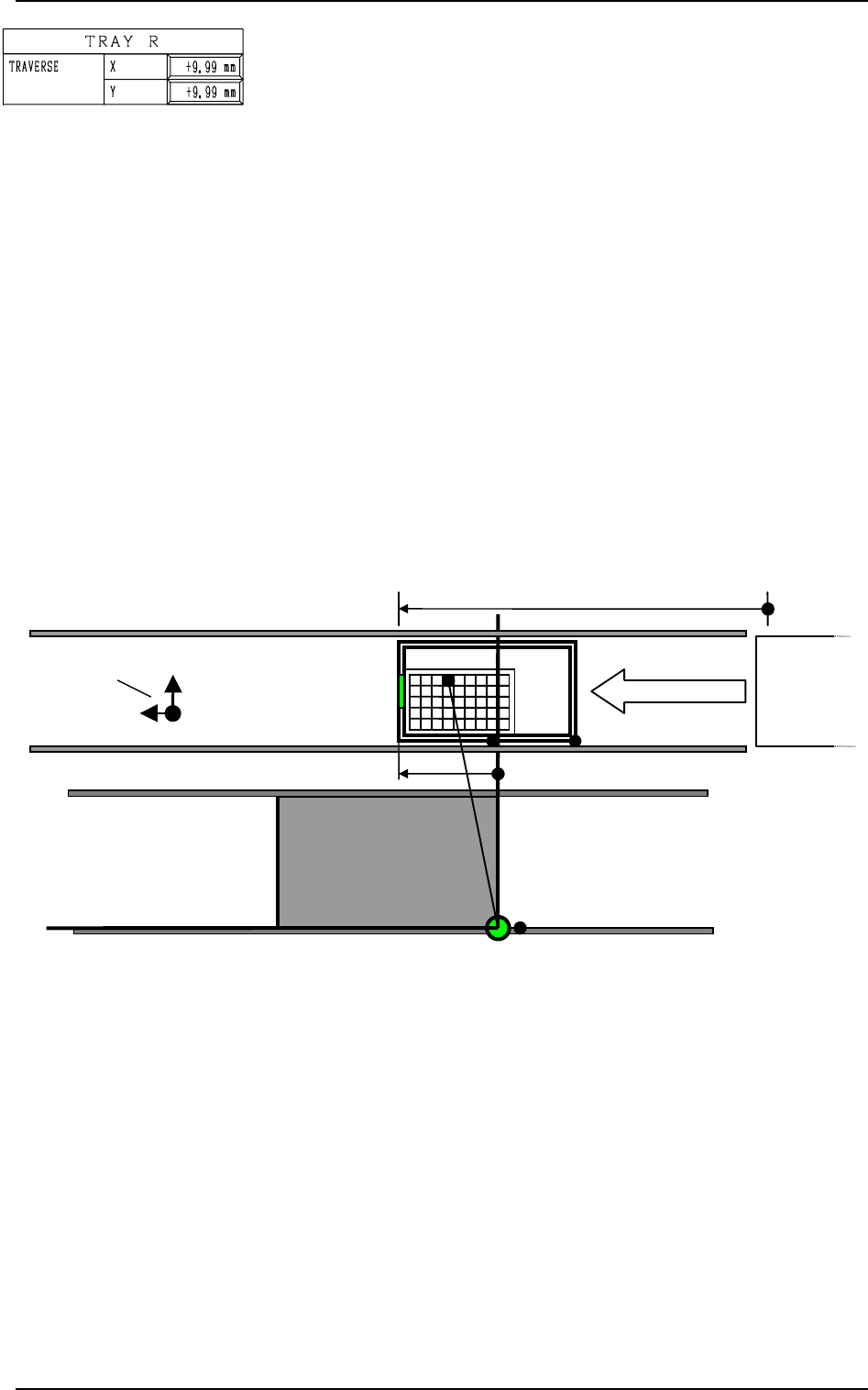

TRAY R TRAVERSE X, Y
This offset data is used to adjust the position where a pallet is
drawn out from the magazine by the traverse shaft. The devia-
tion from the design position can be set in these data boxes.
X (Horizontal)
When a pallet is drawn out, the traverse shaft moves as far as
the specified distance where the parameter set in this data box
is added.
To increase the stroke in the pallet drawing direction, a plus
value must be entered.
Y (Vertical)
The set value is added to the travel of Beam A when compo-
nents are picked up from the tray.
As the traverse shaft is driven in one direction due to the me-
chanical structure, the adjustment of the Y direction is per-
formed using the Y axis of Beam A.
When the actual tray drawing position is located at the lower right
area (viewed from the top), compared with the design position
(P.C.B. Positioning Reference: PO), plus values must be entered
in the “X” and “Y” data boxes.
14. TRAY FEEDER OFFSET Display (Option)
5-45
Fig. 2E109
Other offset data is used for Tray R and the contents are the same
as Tray L.
Fig. 2E108
PO
TC
+755.000 mm
(Design Stroke of Pallet Movement)
Tray R
Y(+)
X(+)
Offset Signs
+135.000 mm
