2.6.4 PLACEMENT DATA (V) Display [P.E.C. Data for Each Repeti-
tive Pattern]
When the [VISION DATA EDIT] key is pressed a the “PLACMENT DATA
(P) U01” display (Fig. 2B105 or Fig. 2B106), the following display appears on
the screen.
A list of P.E.C. data for each repetitive pattern is displayed.
Parameters can be edited at the display opened by pressing the [DATA EDIT]
key *13.
*2
*8
*9
*10
*12
*11
*16
*13
*3
*5
*4
*1
2.6 Placement Data
2-65
Fig. 2B113
Description of Parameters
V-NO
This shows the step Nos. of the placement data (V).
(Only V-0000 is used.)
V
[Setting of Repetitive Patterns]
When multi-unit P.C.B.s (repetitive pattern) are used and the P.C.E. func-
tion is implemented for each such P.C.B., then set “*2” into the text field of
the V data (units digit) for V-0000 step.
*0: B.B.R. P.E.C. Recognition Function “OFF”
*1: B.B.R. P.E.C. Recognition Function “ON” (1-Point Recognition)
*2: B.B.R. P.E.C. Recognition Function “ON” (2-Point Recognition)
Ref.: As both V data shown at the placement data (V) and (P) displays
are the same, the V data can be entered at either display.
[Setting of Each Individual Placement Points]
Set each individual placement points in the text field labeled “V” of the
placement step.
*0: P.E.C. Recognition “OFF”
*1: P.E.C. Recognition “ON” (1-Point Recognition)
*2: P.E.C. Recognition “ON” (2-Point Recognition)
Note: Set “ON” in the “P.E.C. RECOGNITION” data box and in the “LO-
CAL” data box of the label “P.E.C. RECOGNITION MODE” at the
“OPERATION DATA” display.
0305-001 Tg0858-PM-PM
2.6 Placement Data
2-66
[Setting the Beam Mediation]
For beam mediation, set “1*” or “2*” in the text field of the V data (tens
digit) for P-0000 step.
The beam mediation function makes the beam remain as it is until another
beam occupies the placement area, when the placement area is empty after
the component recognition is completed.
0*: Beam Mediation not performed
1*: Beam Mediation always performed
2*: Beam Mediation performed, except in the case of exceptional pro
cessing such as recovery action.
Ref.: In the case that there is any remarkable difference between each of
the placement points obtained by Beam A and Beam B, the setting
of “1*” will allow a shorter PCB finishing time.
X1 (mm) and Y1 (mm)
Set the coordinates of the first fiducial mark for the P.E.C. image recogni-
tion function.
F1
Set the mark data # of the first fiducial mark for the P.E.C. image recogni-
tion function.
• The mark data # registered at the “P.E.C. MARK DATA EDIT” display
(Operation Data) can be selected and set as F1 parameters.
X2 (mm) and Y2 (mm)
Set the coordinates of the second fiducial mark for the P.E.C. image recog-
nition function.
F2
Set the mark data # of the second fiducial mark for the P.E.C. image recog-
nition function.
• The mark data # registered at the “P.E.C. MARK DATA EDIT” display
(Operation Data) can be selected and set as F2 parameters.
C
Set a control command.
Ref.: The same control commands as used in placement data (P) can be
set.
0305-001 Tg0858-PM-PM
3. Example of Pattern Program Creation
2-67
3. Example of Pattern Program Creation
3.1 Example 1

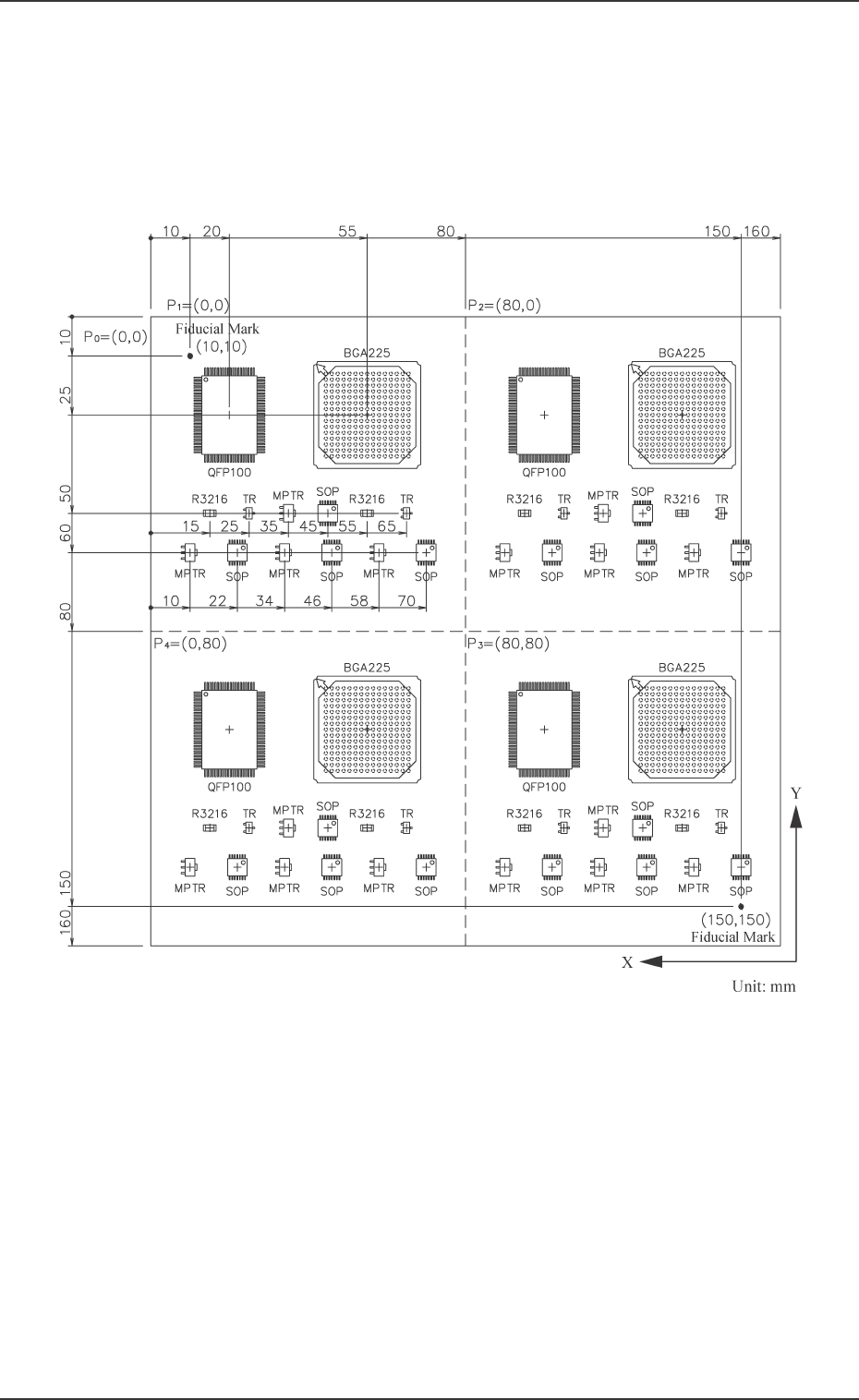

Example 1 shows how to create the pattern program when the components are
placed under the following deployment pattern.
Fig. 2B114
