0305-001 Tg0858-PM-PM
3.2 Example 2 (Example of Placement Data Creation)
(2) Example of Data Creation
• Use placement data (P) U01 and placement data (O) U01.
• Do not enter any parameters in placement data (V) because it is not
used.
PLACEMENT DATA (P) U01
2-78
O-NO. X(mm) Y(mm) Z(THETA) H(mm) C COMMENT
0000 +0.00 +0.00 +0°00’ +0.00 -
0001 +5.00 +5.00 +0°00’ +0.00 -
0002 +50.00 +5.00 +0°00’ +0.00 -
0003 +5.00 +40.00 +0°00’ +0.00 -
0004 +50.00 +40.00 +0°00’ +0.00 -
0005 +0.00 +0.00 +0
°
00’ +0.00 E
Enter “0” (zero) in all data fields of the last step and “P” or
“Q” as a control command.
PLACEMENT DATA (O) U01
Enter “0” (zero) in all data fields of the last step and “E”
as a control command.
P-NO. X(mm) Y(mm) Z(THETA) H(mm) FDR S V C COMMENT
0000 +0.00 +0.00 +0°00’ +0.00 000 - 00 -
0001 +10.00 +20.00 +0°00’ +0.00 101 - 00 -
0002 +20.00 +10.00 +180°00’ +0.00 201 - 00 -
0003 +30.00 +20.00 +90°00’ +0.00 301 - 00 -
0004 +0.00 +0.00 +0°00’ +0.00 000 - 00 P
Table 2B25
Table 2B26
0305-001 Tg0858-PM-PM
3.2 Example 2 (Example of Placement Data Creation)
2-79
Fig. 2B124
Fig. 2B123

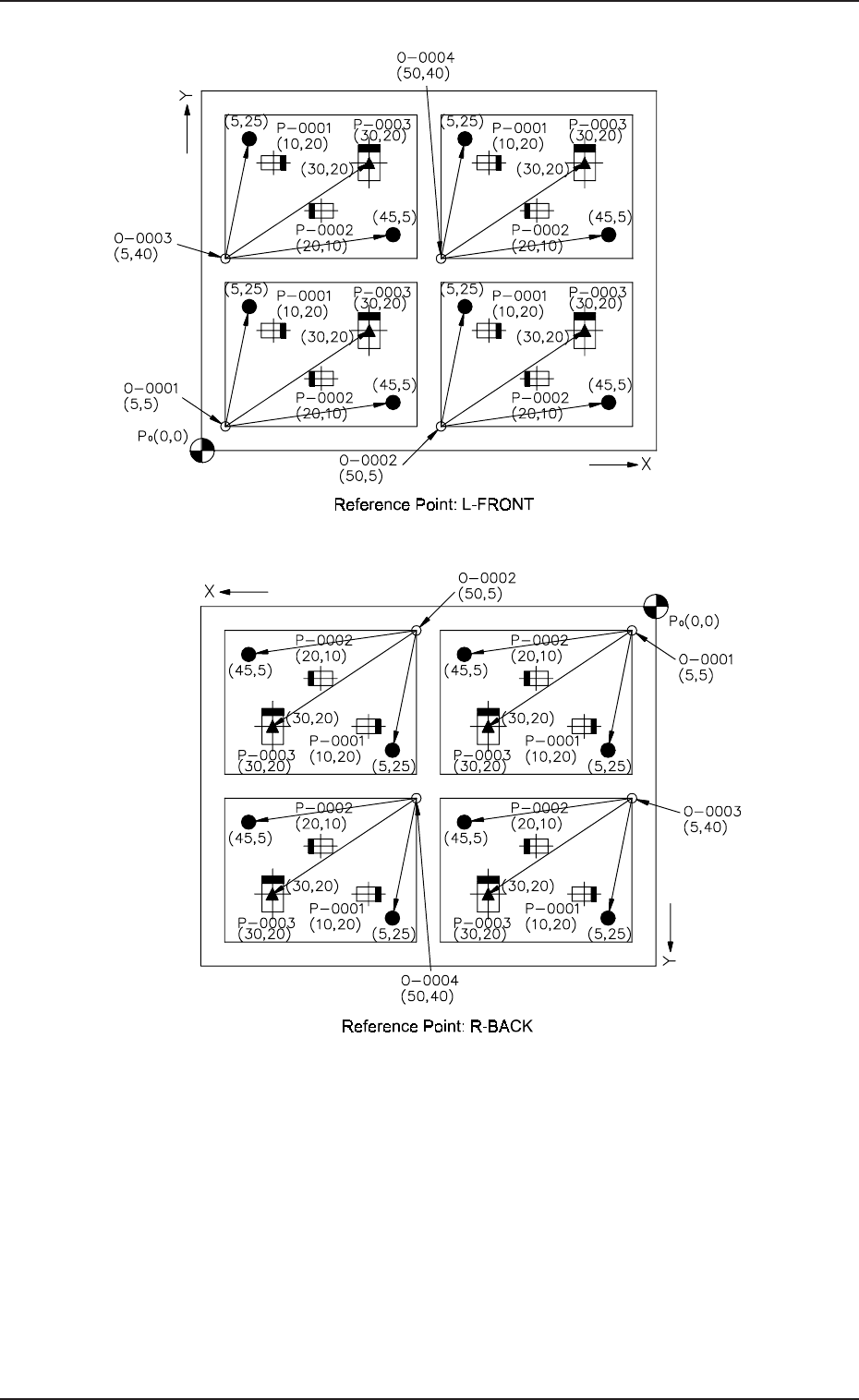

3.2.4 Repetitive Placement Data
[To set the P.E.C. recognition function for each individual
repetitive patterns]
(1) Pattern Sample
• The figure below shows components placed on each unit P.C.B. mak-
ing the same patterns (4 patterns) repeatedly.
0305-001 Tg0858-PM-PM
3.2 Example 2 (Example of Placement Data Creation)
Fig. 2B126
Notes: (a) P
0
shows the P.C.B. positioning reference.
(b) “O-0001”, “O-0002”, “O-0003”, and “O-0004” are called “Pat-
tern Origins”. Each coordinate measured from the P.C.B. posi-
tioning reference point must be entered.
(c) Measure the coordinates (distances) based on the pattern origins
and enter them for component placement.
(d) Measure the coordinates (distances) of the fiducial marks based
on the pattern origins and enter them.
2-80
Fig. 2B125
