0305-001 Tg0858-PM-PM
First Page
Second Page
Fig. 2B149
Fig. 2B150
4.3 Operation Procedures
4.3 Operation Procedures

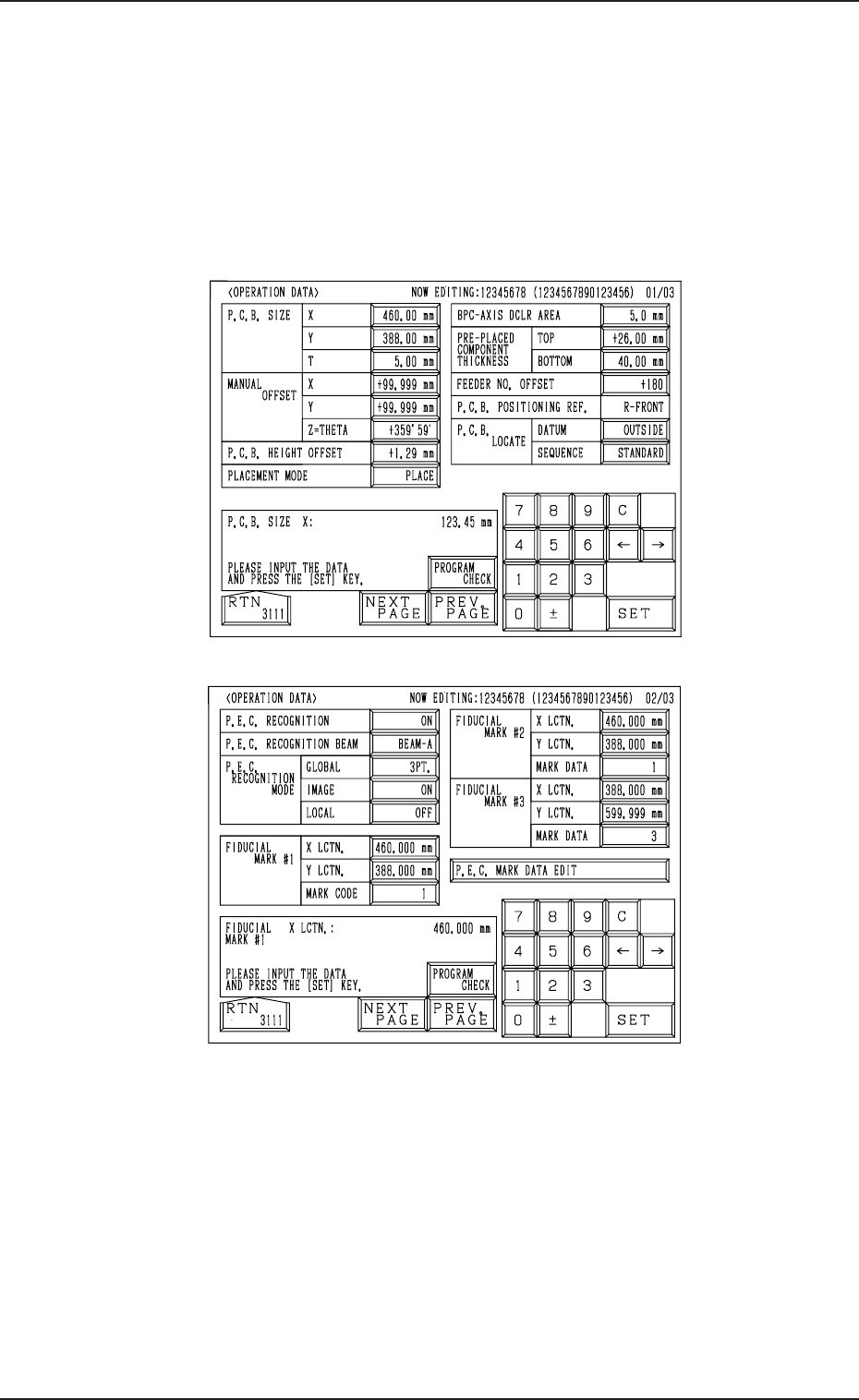

4.3.1 OPERATION DATA Display
(1) When the [OPERATION DATA] key is pressed at the “PATTERN PRO-
GRAM EDIT” display, the following display appears on the screen.
• Every time the [NEXT PAGE] or the [PREV. PAGE] key is pressed,
another or previous page appears on the screen.
2-104
0305-001 Tg0858-PM-PM

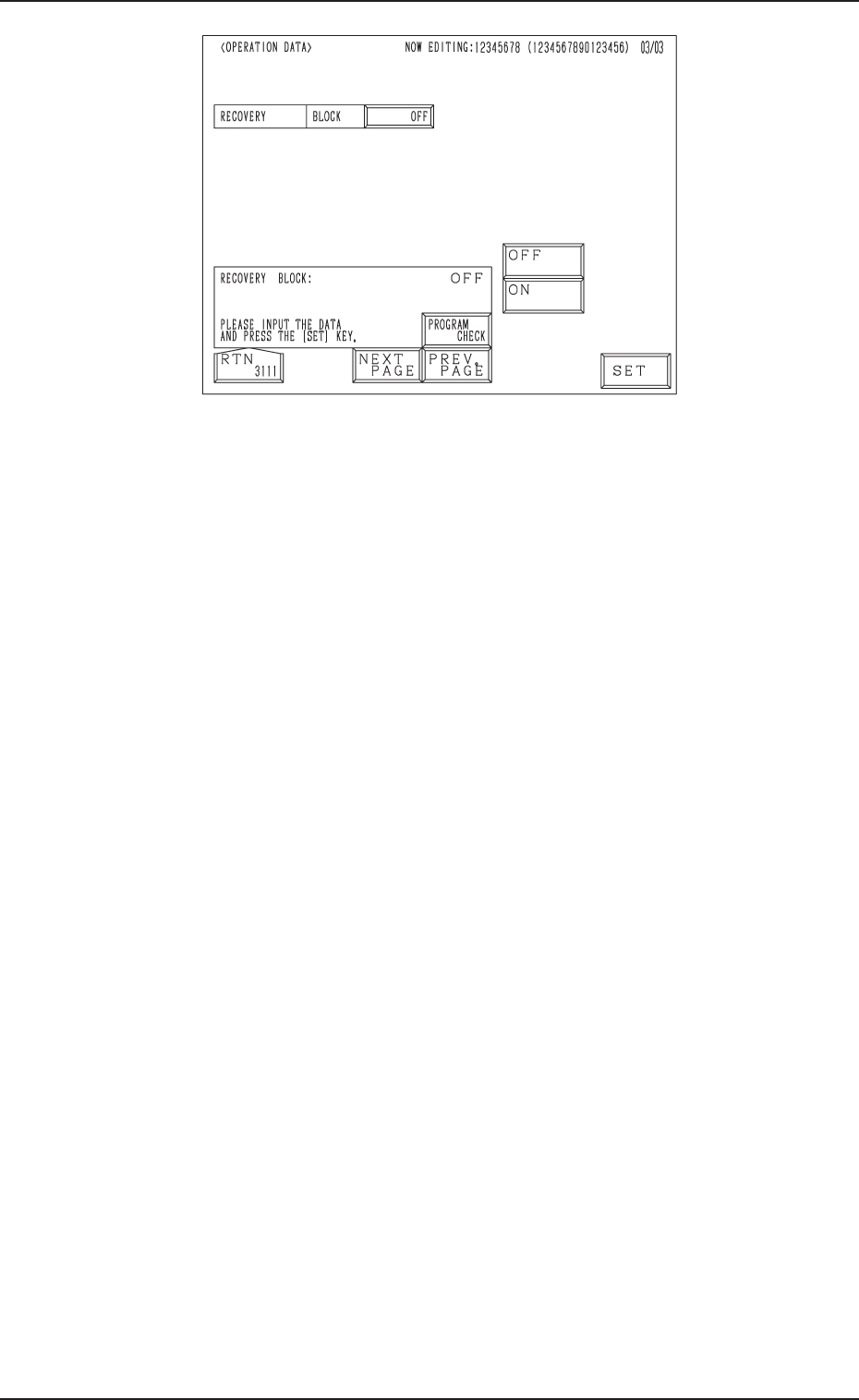

Third Page
Fig. 2B151
4.3 Operation Procedures
(2) Select the data to be edited.
(3) Enter a parameter and press the [SET] key.
(4) Press the [RTN] key. The “PATTERN PROGRAM EDIT” display ap-
pears on the screen.
• When the [PROGRAM CHECK] key is pressed, the edited pattern program
is checked.
2-105
0305-001 Tg0858-PM-PM
Fig. 2B153
Fig. 2B152
Fig. 2B154
[SCREEN] Key
[1]
4.3 Operation Procedures

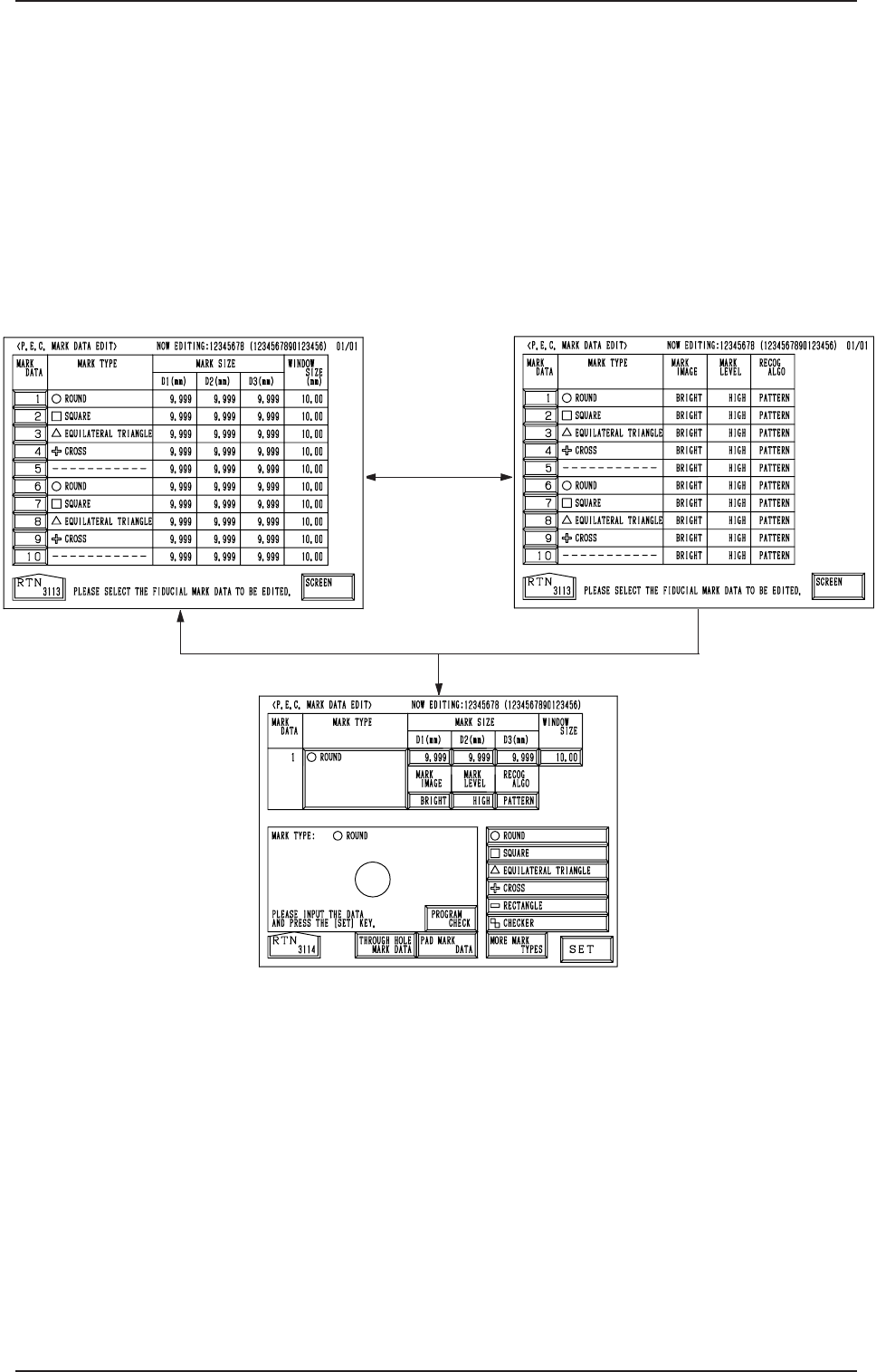

4.3.2 P.E.C. MARK DATA EDIT Display
(1) When the [P.E.C. MARK DATA EDIT] key is pressed at the “OPERA-
TION DATA 02/03” display (Fig. 2B151), the display, the following dispiay
appears on the screen.
Pressing the [SCREEN] key at this display opens another “P.E.C. MARK
DATA EDIT” display.
(2) When the [1] key under the label “MARK DATA” is pressed, the display
(Fig. 2B154) appears on the screen, enabling the editing of the P.E.C.
mark data.
(3) Select the data to be edited.
(4) Enter a parameter and press the [SET] key.
(5) Press the [RTN] key. The display (Fig. 2B152) appears on the screen.
• When the [PROGRAM CHECK] key is pressed, the edited pattern program
is checked.
2-106
