4.6 PLACEMENT DATA (P) Display
Example: Moving the data from P0013 step to P0100 step
(1) Open the “PLACEMENT DATA (P) U01” display (Fig. 2B174).
Move the line cursor to the P0013 step.
(2) Enter “0100”, using the ten-key pad and press the [SET] key.
The data is moved and appears as the parameters in Step No. 0100 under
Step No. 0000 as shown in the following figure.
Fig. 2B175
Ref.: When the [PROGRAM CHECK] key *1 is pressed, the current pat-
tern program is checked.
0305-001 Tg0858-PM-PM
*1
2-124
4.6.6 Editing of Placement Data
(1) When the [DATA EDIT] key is pressed at the “PLACEMENT DATA
(P) U01” display (Fig. 2B168 or Fig. 2B169), the following display ap-
pears on the screen.
Pressing the [DATA EDIT] key at the “PLACEMENT DATA (O)
U01” or the “PLACEMENT DATA (V) U01” display follows the
similar hierarchical sequence.
4.6 PLACEMENT DATA (P) Display
Fig. 2B176
(2) Move the line cursor to the step No. of the data to be edited.
(3) Press the desired key for the data to be edited.
The selected key turns blue.
(4) Enter a parameter, using the ten-key pad or select an option key. Then,
press the [SET] key.
(5) Move the line cursor to the step No. of the data to be edited subsequently
and continue the editing.
• When the [STEP JUMP] key is pressed, an arbitrary step No. appears
under step No. 0000 and the subsequent Nos. follow.
• When the line cursor is moved to the desired step No. and the [STEP IN-
SERT] key is pressed, a new line (step No.) is inserted.
• When the line cursor is moved to the desired step No. and the [STEP DE-
LETE] key is pressed, the data of the step No. is deleted.
(A line of parameters at the line cursor position is deleted and the subse-
quent step Nos. are shifted up.)
• When the [PROGRAM CHECK] key *1 is pressed, the current pattern
program is checked.
0305-001 Tg0858-PM-PM2-125
4.7 PLACE. DATA UNIT EDIT Display
4.7 PLACE. DATA UNIT EDIT Display
(1) When the [PLACE. DATA UNIT EDIT] key is pressed at the “PAT-
TERN PROGRAM EDIT” display, the following display appears on the
screen.
(2) Select one of the keys *1 to open the corresponding display.
4.7.1 Placement Data Unit Operation (Block Delete)

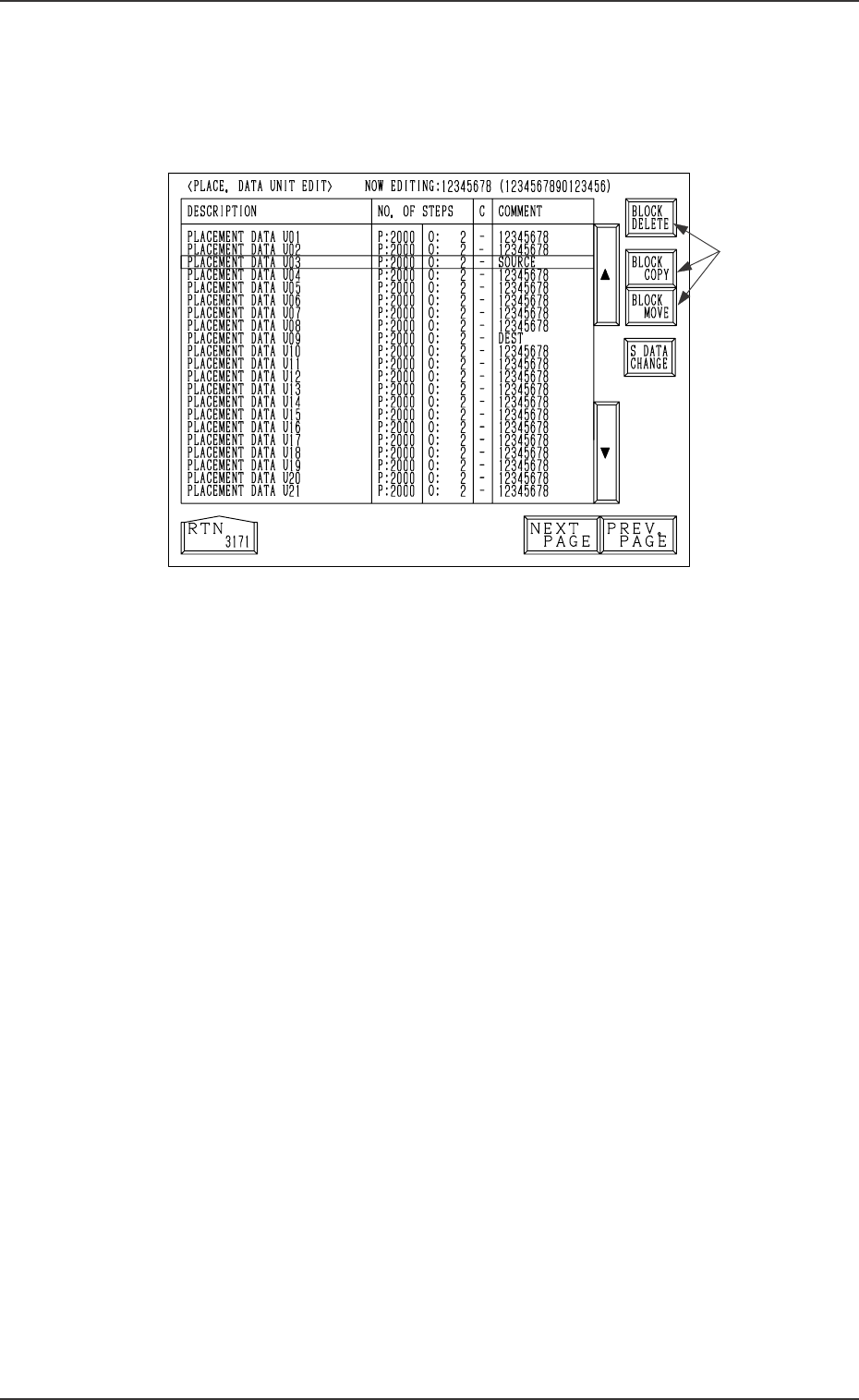

(1) Move the line cursor to the placement data to be deleted at the “PLACE.
DATA UNIT EDIT” display (Fig. 2B177).
(2) Press the [BLOCK DELETE] key.
The data of the block at the line cursor position is deleted and the subse-
quent data is shifted up.
*1
Fig. 2B177
