*1 [FDR] Key

Set the type of components (FDR NO) for each individual step Nos. and

blocks.

*2 OFFSET X (mm), Y (mm)

Set the coordinates of the tray origin corner to be positioned when a tray is

set in the pallet. The coordinates must be determined based on the pallet

reference position.

Note: The coordinates to be entered as positional offset are based on the

reference mark and fixed regardless of whether Tray L or R is used.

• When several trays are put on one pallet (when several blocks are used),

it is required to set positional offsets (X and Y) for each individual blocks.

By specifying the tray origin corner position, the pick-up position of

each tray is automatically calculated based on the component library data.

(“SIDE”, “PITCH”, “MATRIX”, etc.)

Case: Tray L

It is recommended that the tray should be set as shown the following figure

to ensure the X/Y-beam movable range as wide as possible. In this case,

select the [AUTO (LEFT)] key.

• When one tray is set on one pallet and brought to the left side, the posi-

tional offset (X, Y) is fixed as “X = -182.5 mm” and “Y = +0.0 mm”.

2.5 COMPONENT DATA Display

Fig. 2B98

0305-001 Tg0858-PM-PM

Magazine

Pallet Drawing Direction

Main Body of Machine

Pallet Supply Direction

Reference Mark (Rivet)

Tray Origin Corner

Matrix Y Direction

Matrix X Direction

Positional Offset X

Beam A Side

X(+)X (-)

Y (-)

(+)

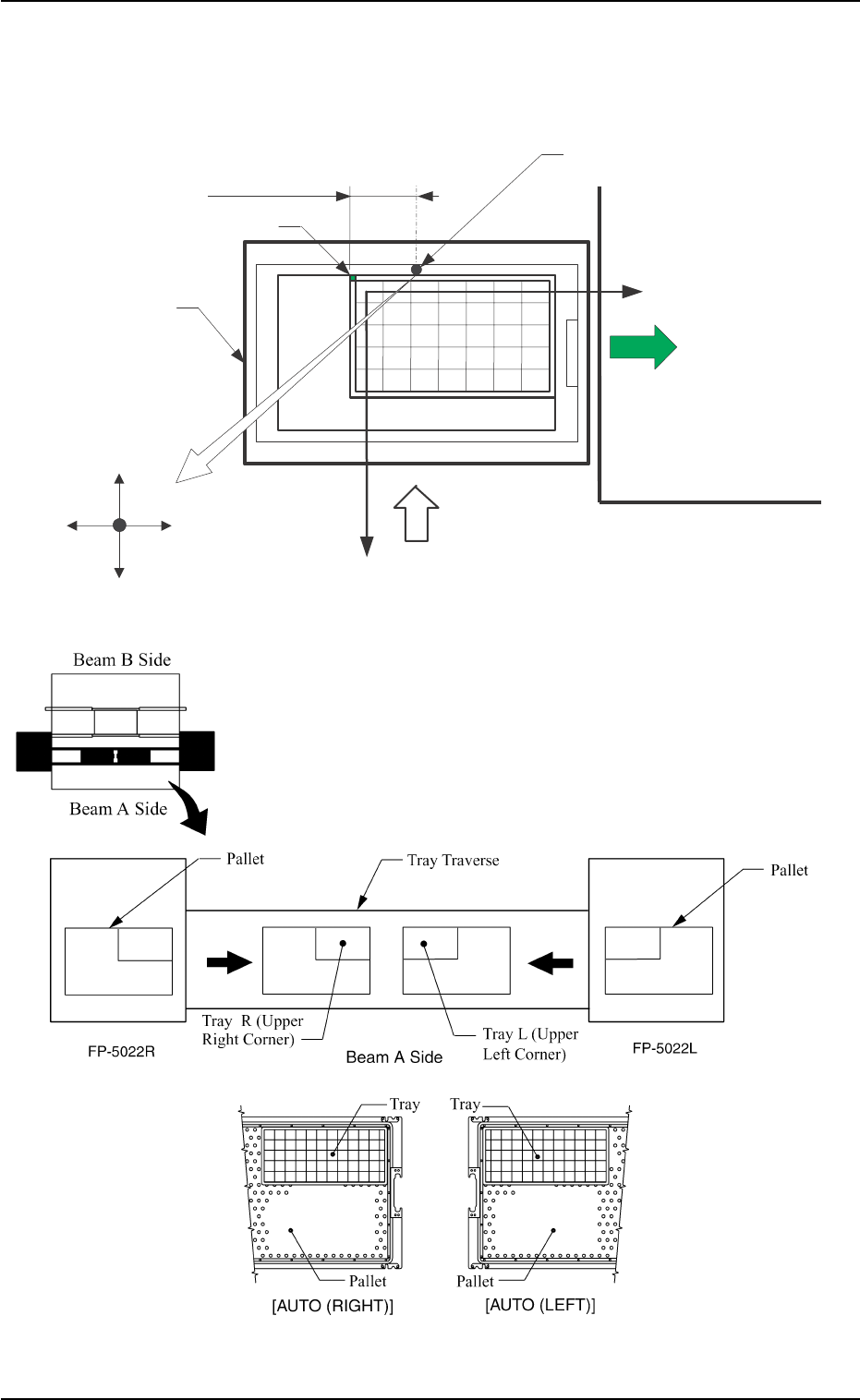

Fig. 2B99

Ref.: [AUTO (LEFT)] and [AUTO (RIGHT)] Keys

“LEFT” or “RIGHT” represents the direction in which a

tray should be pushed when it is set on the pallet.

Any wasteful motion can be suppressed when Tray R is

set at the upper right corner of the pallet and Tray L at the

upper left corner as shown in the following figure.

Fig. 2B100

2-48

2.5 COMPONENT DATA Display

Case: Tray R

It is recommended that the tray should be set as shown in the following

figure to ensure the X/Y-beam movable range as wide as possible. In this

case, select the [AUTO (RIGHT)] key.

0305-001 Tg0858-PM-PM2-49

2.5 COMPONENT DATA Display

2.5.5 TRAY OPERATION DATA Display (Option)

When the [TRAY (L) OPN DATA] key is pressed at the “TRAY (L) STEPS

INFORMATION” display (Fig. 2B95), the following display appears on the

screen.

While the tray L information is being edited, the “TRAY (L) OPERATION

DATA” display appears on the screen.

While the tray R information is being edited, the “TRAY (R) OPERATION

DATA” display appears on the screen.

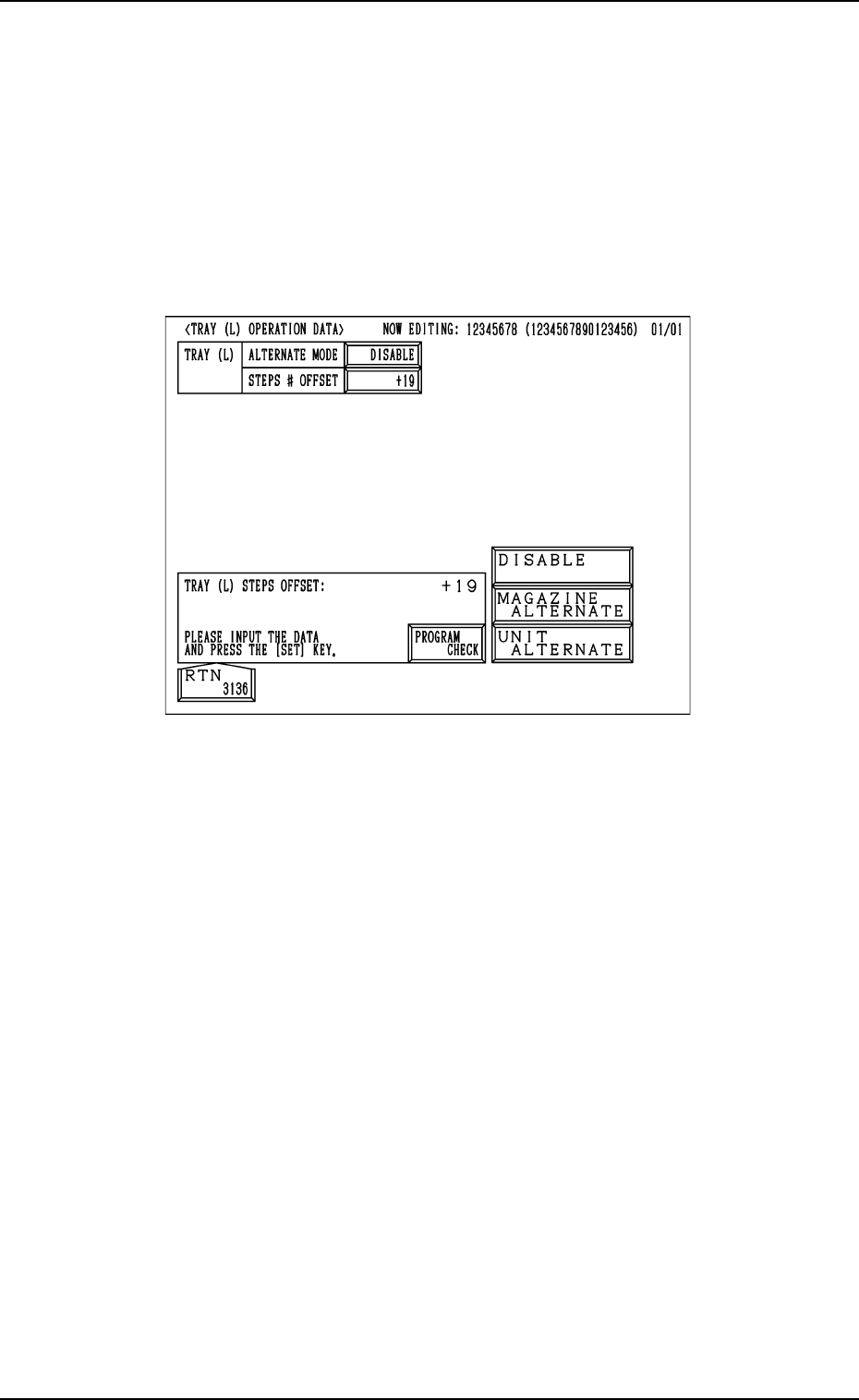

Fig.2B101

MAGAZINE ALTN

“ENABLE” or “DISABLE”can be set in the data box to determine whether

or not the magazine alternate function should be used.

[MAGAZINE ALTERNATE] :

The magazine alternate function becomes valid.

[UNIT ALTERNATE] :

The unit alternate function becomes valid.

About the magazine alternation function

When this function is used, components can be supplied during automatic

operation without stopping the machine.

STEPS # OFFSET

The steps # offset value can be entered in the data box.

Steps # Offset

This offset data is used to shift the current feeder (currently allocated com-

ponents) to the multi-layer tray feeder.

Based on the FDR No. and the component data indicated in the placement

data, the current feeder position is shifted as much as this offset.
