0305-001 Tg0858-PM-PM Note: The center of the mark is the reference point. 5-12 3. FEEDER (A) OFFSET and FEEDER (B) OFFSET Displays Fig. 2E40 When offset parameters are set with a plus ( + ) sign, the com- ponent pick-up…

0305-001 Tg0858-PM-PM

Fig. 2E38

FEEDER (A) OFFSET X (mm) and Y (mm)

The feeder (A) offset data is used to adjust the positional de-

viation based on the design dimensions representing the com-

ponent pick-up position for each individual feeder slot Nos.

(FDR. NO.).

The values based on the PL-XY coordinate system must be

entered in the data boxes.

These parameters must be measured, using the master jig and

set as the data for positional alignment with each feeder’s com-

ponent pick-up position.

Ref.: The manual alignment teaching operation is possible.

3. FEEDER (A) OFFSET and FEEDER (B) OFFSET Displays

3. FEEDER (A) OFFSET and FEEDER (B) OFFSET

Displays

• The feeder (A) offset data is used independently for the machine and repre-

sents the feeder’s component pick-up position indicated by each individual

feeder slot Nos. (FDR. NO.).

• The feeder (B) offset data is used to correct the variation in each feeder to be

installed.

When the [FEEDER (A) OFFSET] key is pressed at the “OFFSET DATA”

display, the following display appears on the screen.

5-11

Fig. 2E39

0305-001 Tg0858-PM-PM

Note: The center of the mark is the reference point.

5-12

3. FEEDER (A) OFFSET and FEEDER (B) OFFSET Displays

Fig. 2E40

When offset parameters are set with a plus (+) sign, the com-

ponent pick-up directions (position) are changed to “X (+)”

and “Y (+)” shown in the above figure.

Note: Both rear (Slot Nos. 101 to 139) and front (Slot Nos.

201 to 239) feeders are not based on the feeders them-

selves. They are based on the coordinate system of the

machine.

Ref.: When the [TEACHING] key *1 is pressed, the “UNIT

MANUAL ALIGNMENT TEACH” display appears

on the screen.

Refer to “6.8.2 Feeder (A) Offset of Section 3 in Volume

4” for details.

FEEDER (A) OFFSET L (mm)

The set parameters are used to adjust the deviation of the

feeder’s component pick-up height based on the design dimen-

sions for each individual feeder slot Nos. (FDR. NO.).

These parameters are reflected on the descending stroke of the

head required to pick up a component.

Fig. 2E41

When a value is entered with a plus (+) sign, the pick-up height

is changed to “L (+)” shown in the figure above, concluding

that the descending stroke has increased.

0305-001 Tg0858-PM-PM

Fig. 2E43

Option

3. FEEDER (A) OFFSET and FEEDER (B) OFFSET Displays

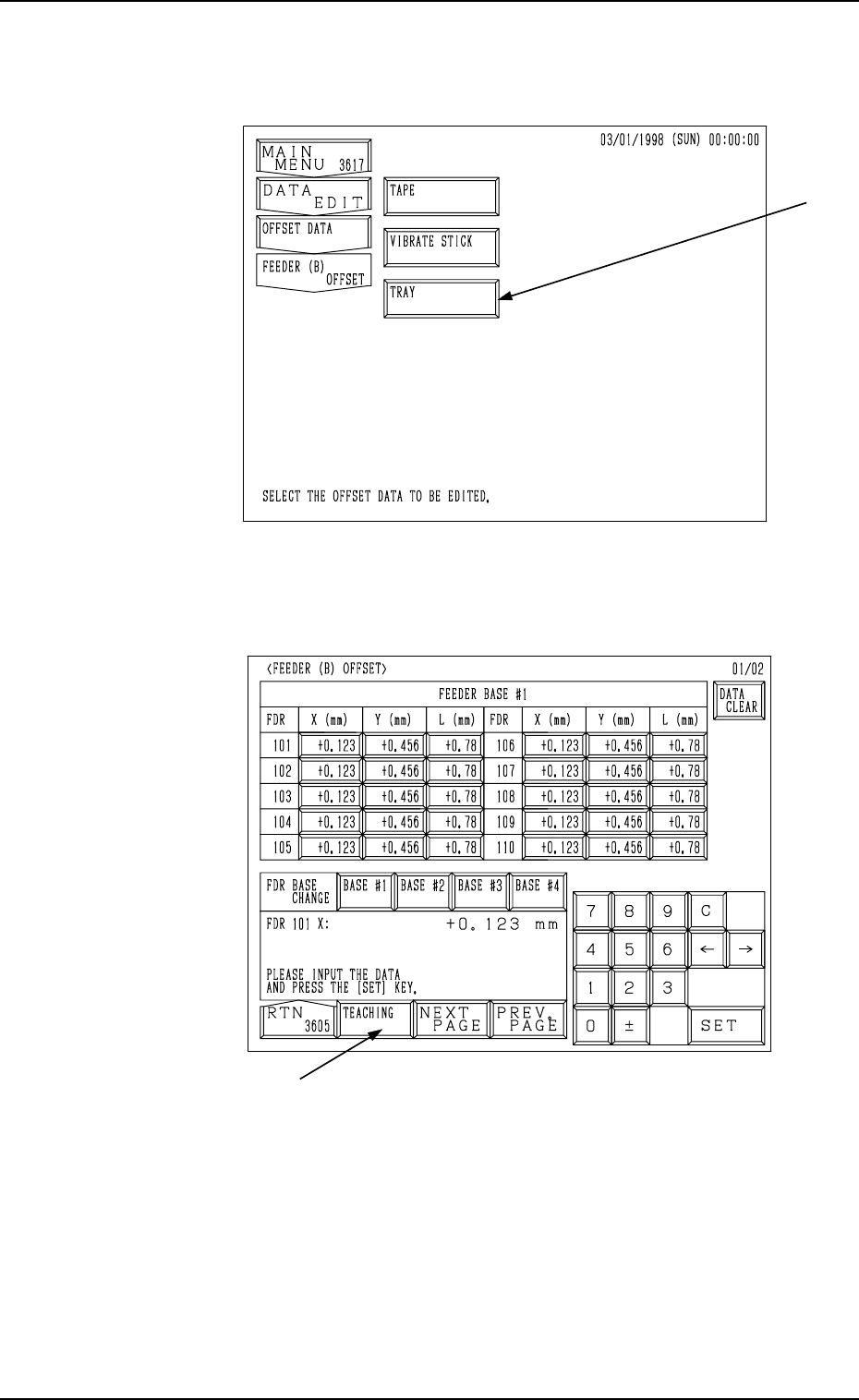

When the [FEEDER (B) OFFSET] key is pressed at the “OFF-

SET DATA” display, the following display appears on the screen.

5-13

Fig. 2E42

When the [TAPE] key is selected, the following display appears

on the screen.
