4.6.1 Special Operation (Step Delete) for Placement Data
(1) Move the line cursor to the step No. of the data to be deleted.
(2) Press the [STEP DELETE] key.
The data of the step No. at the line cursor is deleted.
The line at the line cursor position is deleted and the subsequent lines
scroll up.
4.6.2 Special Operation (Step Insert) for Placement Data
(1) Move the line cursor to the step No. of the data to be inserted.
(2) Press the [STEP INSERT] key.
A new step line (placement data) is inserted below the step No. at the
cursor position.
4.6.3 Special Operation (Step Jump) for Placement Data
(1) When the [STEP JUMP] key is pressed at the “PLACEMENT DATA
(P) U01” display (Fig. 2B168 or Fig. 2B169), the following display ap-
pears on the screen.
Pressing the [STEP JUMP] key at the “PLACEMENT DATA
(O) U01” or the “PLACEMENT DATA (V) U01” display follows
the similar hierarchical sequence.
4.6 PLACEMENT DATA (P) Display
Fig. 2B170
(2) Enter the step No. to jump to, using the ten-key pad and press the [SET]
key.
0305-001 Tg0858-PM-PM
*1
2-119
Example: Jumping to the P0100 Step
(1) Open the “PLACEMENT DATA (P) U01” display (Fig. 2B170).
(2) Enter “0100”, using the ten-key pad and press the [SET] key. The line
cursor jumps to the P0100 step as shown in the following figure.
4.6 PLACEMENT DATA (P) Display
Fig. 2B171
Ref.: When the [PROGRAM CHECK] key *1 is pressed, the current pat-
tern program is checked.
0305-001 Tg0858-PM-PM
*1
2-120
4.6 PLACEMENT DATA (P) Display
4.6.4 Special Operation (Step Copy) for Placement Data
(1) When the [STEP COPY] key is pressed at the “PLACEMENT DATA
(P) U01” display (Fig. 2B168 or Fig. 2B169), the following display ap-
pears on the screen.
Pressing the [STEP COPY] key at the “PLACEMENT DATA
(O) U01” or the “PLACEMENT DATA (V) U01” display follows
the similar hierarchical sequence.

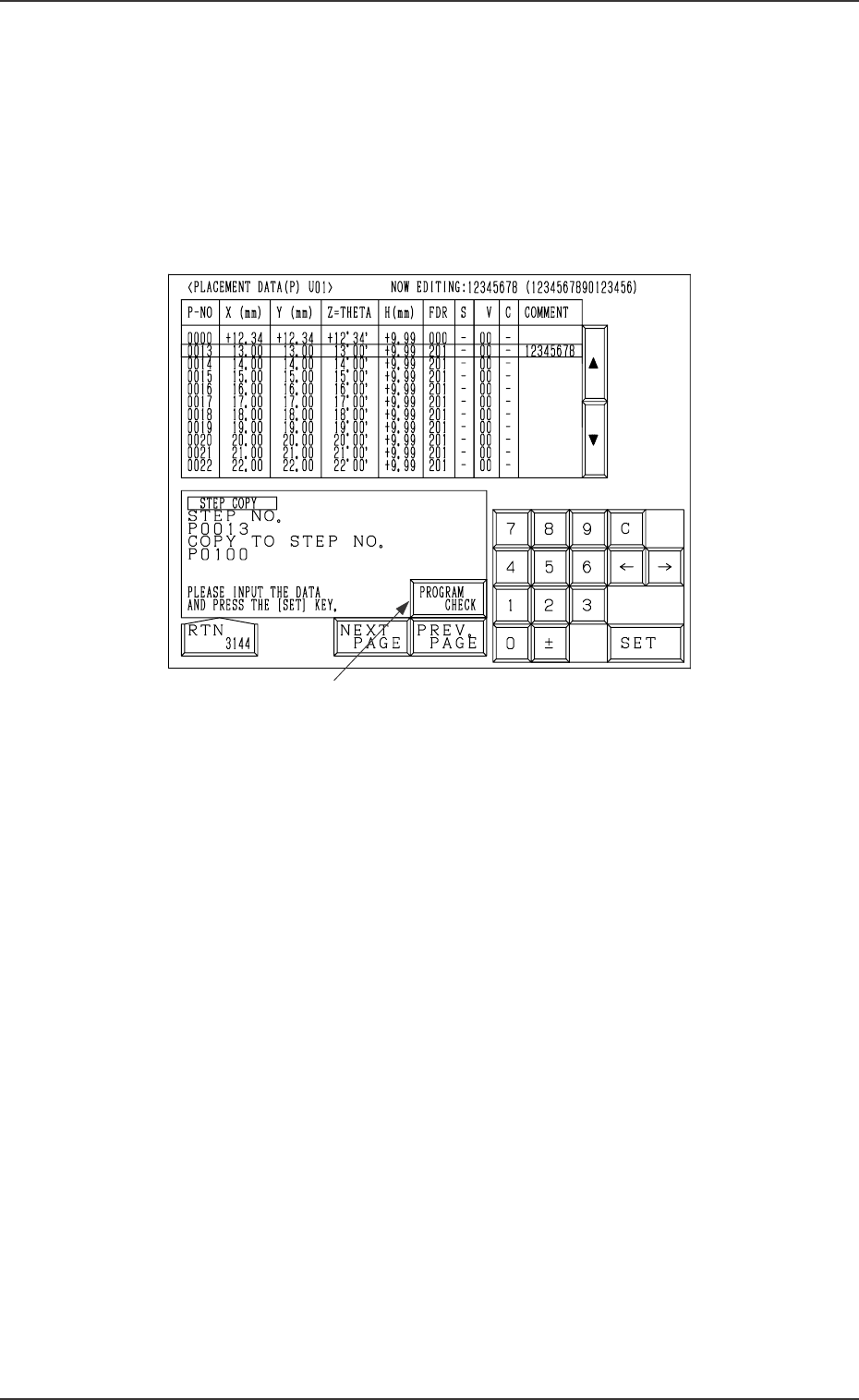

Fig. 2B172
(2) Move the line cursor to the step No. of the data to be copied.
(3) Enter the destination step No., using the ten-key pad and press the [SET]
key.
The parameters of the step No. (selected by the line cursor) are copied to
the text line of the destination step No.
The destination step No. appears under step No. 0000 and the subse-
quent Nos. follow.
