0305-001 Tg0858-PM-PM 4.4 SET-UP DA T A Display 4.4 SET-UP DA T A Display (1) When the [SET-UP DA T A] key is pressed at the “P A TTERN PROGRAM EDIT” display , the following display appears on the screen. Fig. 2B155 (2) …

0305-001 Tg0858-PM-PM

Fig. 2B153

Fig. 2B152

Fig. 2B154

[SCREEN] Key

[1]

4.3 Operation Procedures

4.3.2 P.E.C. MARK DATA EDIT Display

(1) When the [P.E.C. MARK DATA EDIT] key is pressed at the “OPERA-

TION DATA 02/03” display (Fig. 2B151), the display, the following dispiay

appears on the screen.

Pressing the [SCREEN] key at this display opens another “P.E.C. MARK

DATA EDIT” display.

(2) When the [1] key under the label “MARK DATA” is pressed, the display

(Fig. 2B154) appears on the screen, enabling the editing of the P.E.C.

mark data.

(3) Select the data to be edited.

(4) Enter a parameter and press the [SET] key.

(5) Press the [RTN] key. The display (Fig. 2B152) appears on the screen.

• When the [PROGRAM CHECK] key is pressed, the edited pattern program

is checked.

2-106

0305-001 Tg0858-PM-PM

4.4 SET-UP DATA Display

(1) When the [SET-UP DATA] key is pressed at the “PATTERN PROGRAM

EDIT” display, the following display appears on the screen.

Fig. 2B155

(2) Select the [ON] or the [OFF] key to determine whether or not the con-

veyor width should be set up automatically and press the [SET] key.

(3) Press the [RTN] key. The “PATTERN PROGRAM EDIT” display ap-

pears on the screen.

• When the [PROGRAM CHECK] key is pressed, the edited pattern program

is checked.

2-107

0305-001 Tg0858-PM-PM

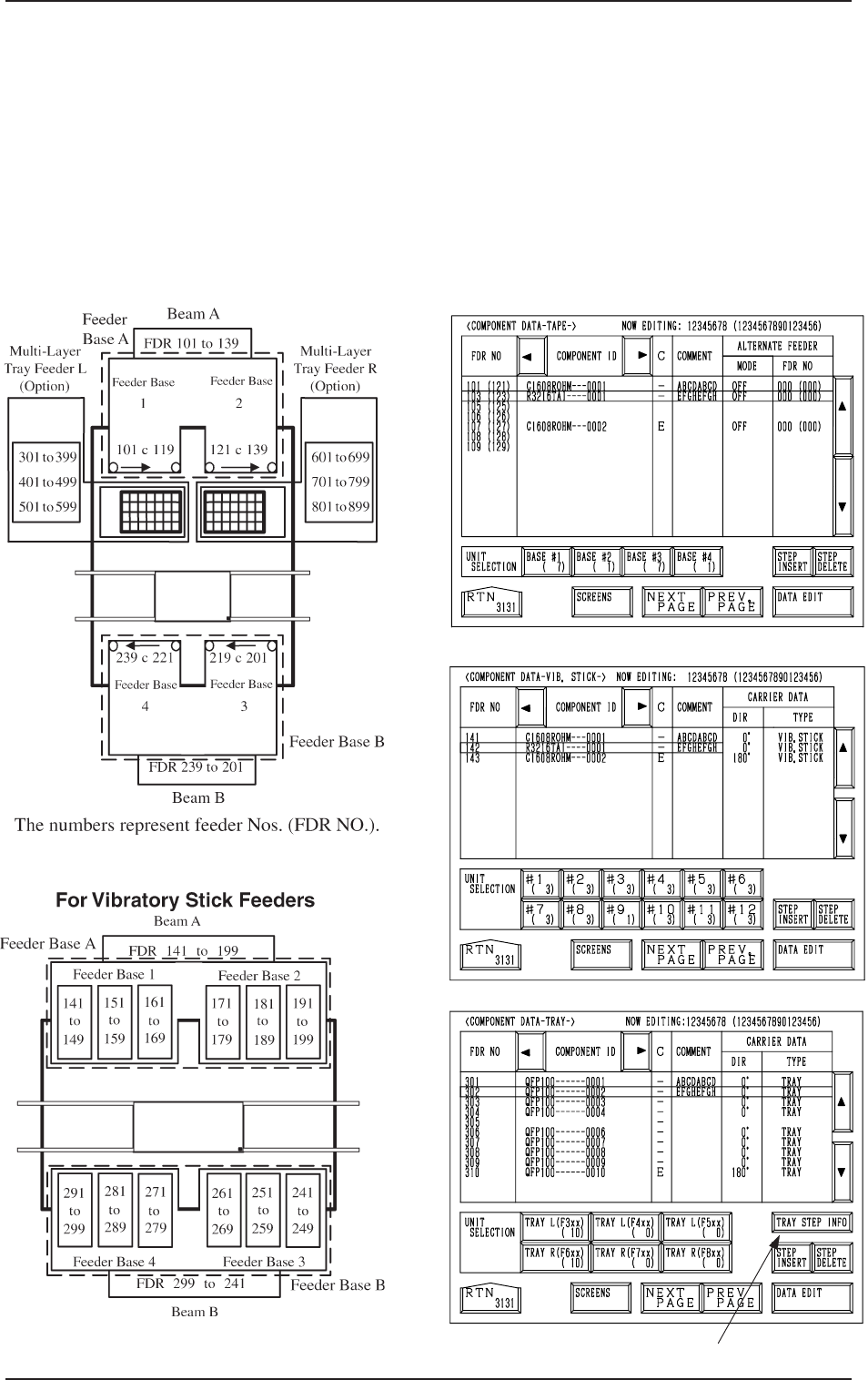

4.5 COMPONENT DATA Display

(1) When the [TAPE [A] (F101-F139)], the [VIB STICK [A] (F141-F199)],

or the [TRAY L (F301-F599)] key is pressed at the “PATTERN PRO-

GRAM EDIT” display, the corresponding display (Fig. 2B158, 2B159, or

2B160) appears on the screen.

When the [TAPE [B] (F201-F239)], the [VIB STICK B (F241-F299)], or

the [TRAY R (F601-F899)] key is pressed at the “PATTERN PROGRAM

EDIT” display, the corresponding display (similar to Fig. 2B158, 2B159, or

2B160) appears on the screen.

Fig. 2B158

[TAPE A]

[VIB. STICK A]

[TRAY L]

Fig. 2B159

Fig. 2B160

Fig. 2B156

Fig. 2B157

For Tape Feeder

4.5 COMPONENT DATA Display

2-108
