3. Example of Pattern Program Creation

2-67

3. Example of Pattern Program Creation

3.1 Example 1

Example 1 shows how to create the pattern program when the components are

placed under the following deployment pattern.

Fig. 2B114

0305-001 Tg0858-PM-PM

Tape Feeder

Fig. 2B115 Example of Component Arrangement

3.1 Example 1

2-68

0305-001 Tg0858-PM-PM

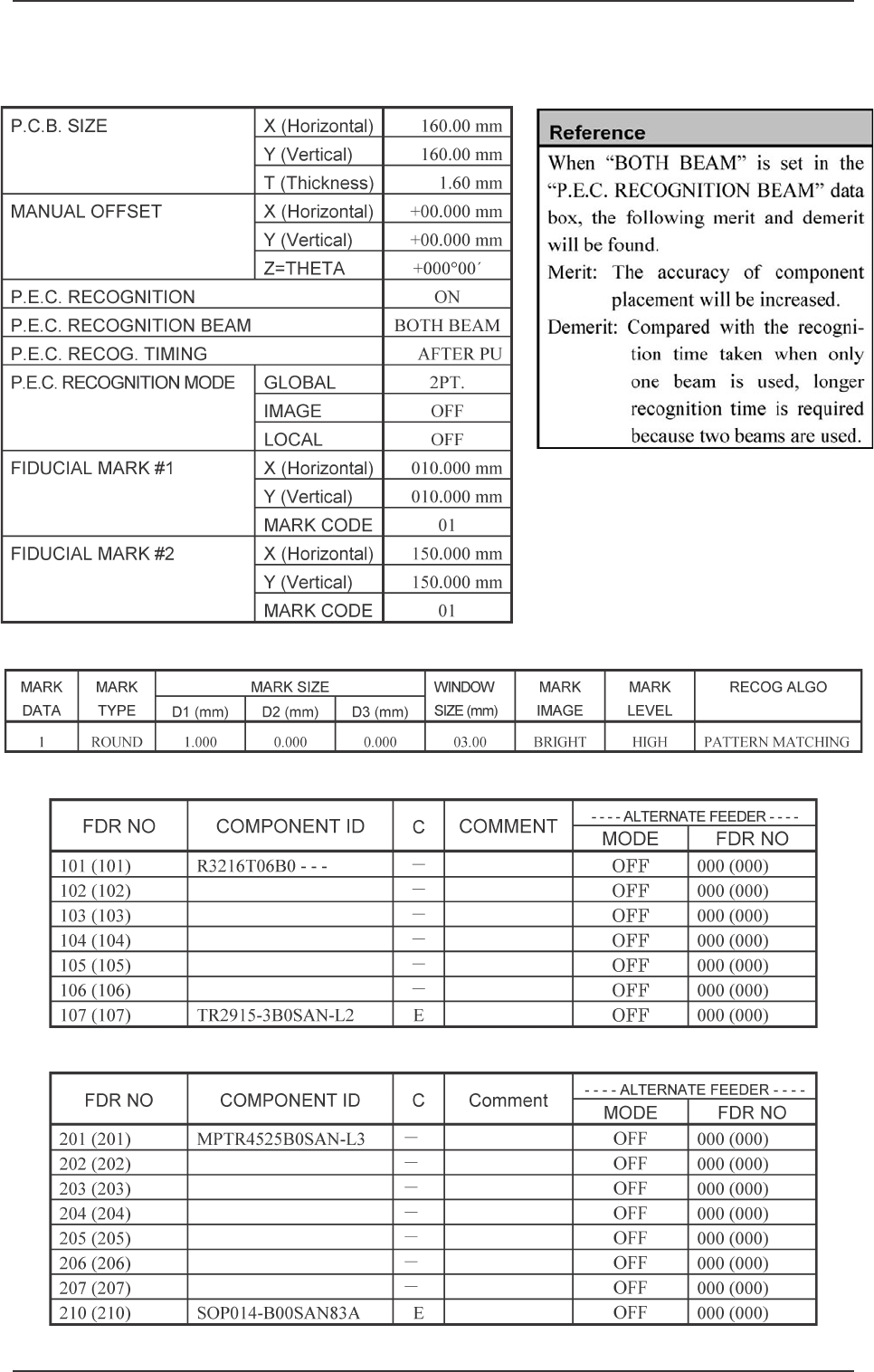

Example of Data Creation

Operation Data

3.1 Example 1

2-69

P.E.C. Mark Data

COMPONENT DATA: Tape A (F101-F139)

COMPONENT DATA: Tape B (F201-F239)

Table 2B8

Table 2B11

Table 2B10

Table 2B9
