2.3.4 P.E.C. Fiducial Marks
(1) Type and Size
Table 2B2
2.3 OPERATION DATA Display
0305-001 2-28 Tg0858-PM-PM
Table 2B3
2.3 OPERATION DATA Display
Mark Type D1 D2 Remarks
Checker
(rectangle)
0.5 to 2.0 mm (±10%) 0.5 to 2.0 mm (±10%)
z
Mark Reference:
Contact of Two
Rectangles
Through Hole
(
round
)
1.0 to 2.0 mm (±10%)
0.5 to 1.5 mm (±10%)
z
Mark Reference:
Center
z
D2: Size of a
punched hole
z
W: Min. 0.25 mm
Pad Mark
(rectangle)
0.5 to 2.0 mm (±10%) 0.5 to 2.0 mm (±10%)
z
Mark Reference:
Center of Gravity
D1
D2
OR
D1
D2
(Front Side of
Machine)
D1
D2
OR
D1
D2
(Front Side of
Machine)
Note a
D2
D1
(Front Side of
Machine)
D2
D1
(Front Side of
Machine)
D2
D1
W
(Front Side of
Machine)
D2
W
D1
(Front Side of
Machine)
Note a
0305-001 2-29 Tg0858-PM-PM
2.3 OPERATION DATA Display
(2) Material
• Copper Leaf
(Au and Ni plating possible but mirror surfaces cannot be used.)
• Solder Plating (Consult our sales personnel.)
• Solder Leveler (Consult our sales personnel.)

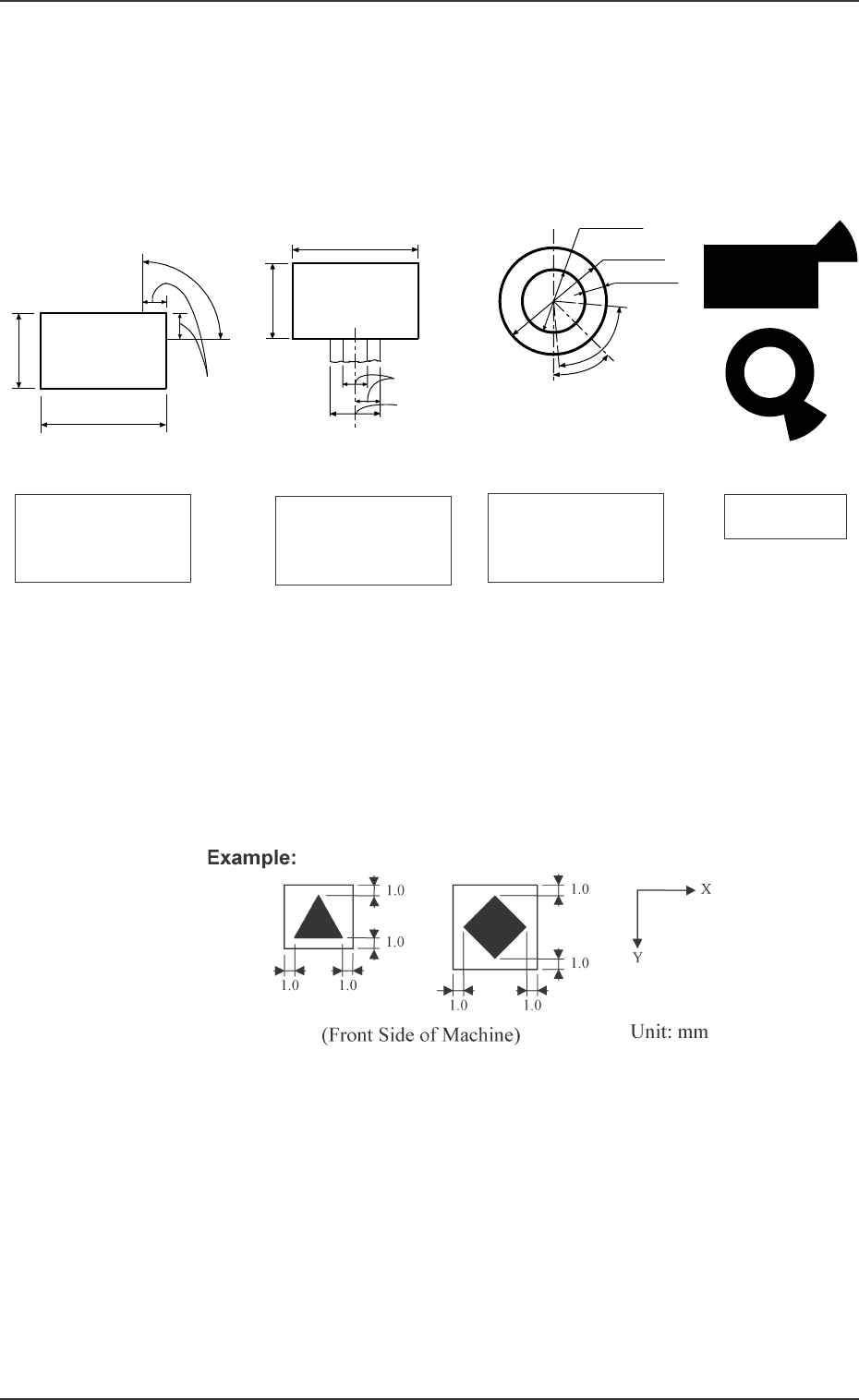

(3) Specifications of Lines extended from a Pad Mark or a Through Hole
(Unit: mm)
Fig. 2B67
(c) The shape of P.C.B. (a cutout, a punched hole), the exter-
nal elements (light reflected from a structure, light emitted
from an external device, etc.) may sometimes interfere with
recognition. Consult our sales personnel for details.
(d) A fiducial mark should make ample contrast with the sur-
roundings. (To prevent false recognition)
(e) Anything resembling a pattern similar to a fiducial mark
should not exist in the designated window. If one exists, it
may cause false recognition.
(f) A test may be required when the fiducial mark cannot be
recognized because of the extreme warpage of the P.C.B.
Fig. 2B66
Notes: (a) A through hole or a pad mark should have only one land
which is directed in increments of 45°. Consult our sales
personnel for details (dimensions, etc.).
(b) A copper leaf, a resist, a coating, a silk print, and a punched
hole should not exist in the range of 1.0 mm in both X and
Y directions from the outermost edges of a fiducial mark.
They may cause false recognition.
0305-001 2-30
Tg0858-PM-PM
Range between Lines
and Tangential Lines
1/3 of Shorter Side
0.5 to 2.0
0.5 to 2.0
0.5 to 2.0
0.5 to 2.0
1/3 of Shorter Side
Range between Lines
and Tangential Lines
0.5 to 1.5
1.0 to 2.0
Min. 0.25
80° (Range
between Lines
and Tangential
Lines)
(Front Side of Machine)
45°
Pad Mark 45°
Range of Land Location
in Increments of 45° for
Pad mark
Pad Mark 90°
Range of Land Location
in Increments of 90° for
Pad mark
Range of Land Location
for Through Hole
(45° at the bottom right
of the hole)
Examples of Land
Locations
(Front Side of Machine)
(Front Side of Machine)
(Front Side of Machine)
