0305-001 Tg0858-PM-PM
[VIBRATORY STICK A]
Every time the [SCREENS] key is pressed at the display (Fig. 2B80), another
display appears on the screen.
Fig. 2B82
Fig.2B81
Fig. 2B80
*1
[SCREENS] Key
2-36
2.5 COMPONENT DATA Display
*1 UNIT SELECTION [#1 ( X)] through [#12 ( X)] Keys
When one of these keys is pressed, the component data related to the se-
lected vibratory stick unit appears on the screen.
When parameters are set in the component data, the background color is
turned green.
The numbers in ( ) show the number of registered steps (number of feeder
Nos.)
.
0305-001 Tg0858-PM-PM
[TRAY L]
Every time the [SCREENS] key is pressed at the display (Fig. 2B83), another
display appears on the screen.
Fig. 2B84
*1
*2
Fig. 2B83
[SCREENS] Key
2.5 COMPONENT DATA Display
2-37
*1 UNIT SELECTION [TRAY L (F3xx) ( X)], [TRAY L (F4xx) ( X)], [TRAY
L (F5xx) ( X)], [TRAY R (F6xx) ( X)], [TRAY R (F7xx) ( X)], and [TRAY
R (F8xx) ( X)] Keys
It is a key which switches the display of component data to other units.
When parameters are set in the component data, the background color is
turned green.
The numbers in ( ) show the number of registered steps (number of feeder
Nos.).
*2 [TRAY STEP INFO] Key
When this key is pressed, the “TRAY (L) or (R) STEPS INFORMATION”
display appears on the screen.
0305-001 Tg0858-PM-PM

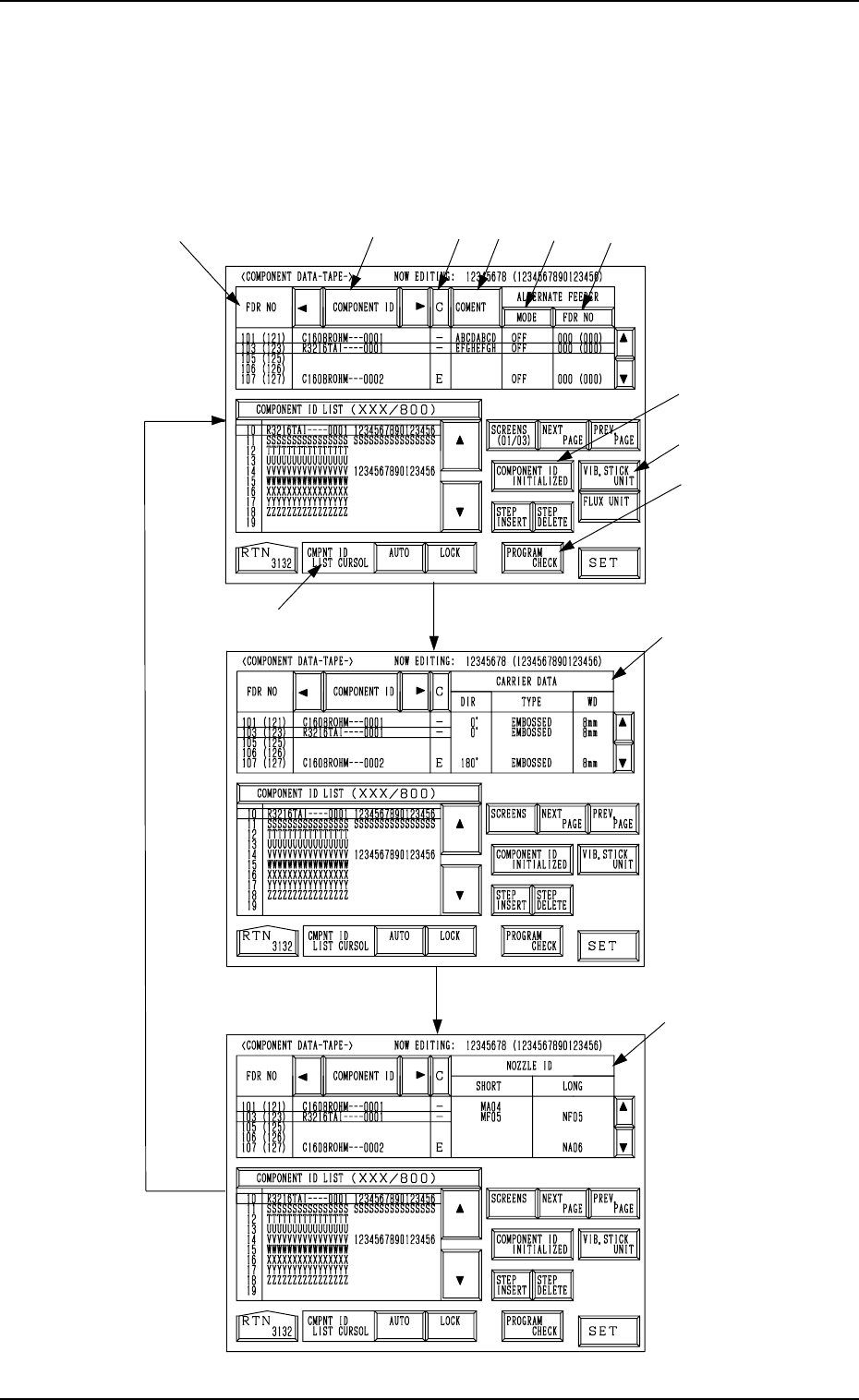

2.5.1 Tape Feeders
When the [DATA EDIT] key is pressed at the display (Fig. 2B76) for “TAPE
A”, the following display appears on the screen.
Every time the [SCREENS] key is pressed, another display appears on the
screen.
*1
*2
*3
*9
*8
*7
*4
*5
*6
*10
*11
*12
Fig. 2B85
[SCREENS] Key
Fig. 2B86
Fig. 2B87
2-38
2.5 COMPONENT DATA Display
