0305-001 Tg0858-PM-PM Fig. 2E83 REFERENCE GAIN/LEVEL: Used commonly for each cam- era All parameters are set through the automatic teaching opera- tion. Note: This is just an information display (editing impossible). 5-3…
0305-001 Tg0858-PM-PM
7. NOZZLE STOCKER OFFSET Display
NOZZLE STOCKER [B1] (BEAM-A)
The set offset data is used to adjust the positional deviations based on the
design dimensions representing the nozzle stocker unit position viewed from
the X/Y coordinate system (PL-XY: Origin P0) for P.C.B. positioning.
The values based on the PL-XY coordinate system must be entered in the
data boxes.
Set the values which represent the positional deviations of Nozzle Stocker
B1 based on Beam A for each individual addresses.
X (mm) and Y (mm)
When offset parameters are set with a plus (+) sign, the nozzle change
directions are changed to “X (+)” and “Y (+)” shown in the figure.
5-32
NOZZLE STOCKER [B1] (BEAM-B)
The set offset data is used to adjust the positional deviations based on
the design dimensions representing the nozzle stocker unit position
viewed from the X/Y coordinate system (PL-XY: Origin P0) for P.C.B.
positioning.
The values based on the PL-XY coordinate system must be entered in
the data boxes.
Set the values which represent the positional deviations of Nozzle
Stocker B1 based on Beam B for each individual addresses.
X (mm) and Y (mm)
When offset parameters are set with a plus (+) sign, the nozzle change
directions are changed to “X (+)” and “Y (+)” shown in the figure.
Fig. 2E81
Fig. 2E82
1
10
Y(+)
X(+)
Nozzle Stocker B1
1
10
Y(+)
X(+)
Nozzle Stocker B1
0305-001 Tg0858-PM-PM
Fig. 2E83
REFERENCE GAIN/LEVEL: Used commonly for each cam-
era
All parameters are set through the automatic teaching opera-
tion.
Note: This is just an information display (editing impossible).
5-33
8. CAMERA REFERENCE GAIN LEVEL Display
8. CAMERA REFERENCE GAIN LEVEL Display
When the [CAMERA REFERENCE GAIN/LEVEL] key is pressed at the “OFF-
SET DATA” display, the following display appears on the screen.
Fig. 2E84
0305-001 Tg0858-PM-PM
A
5-34

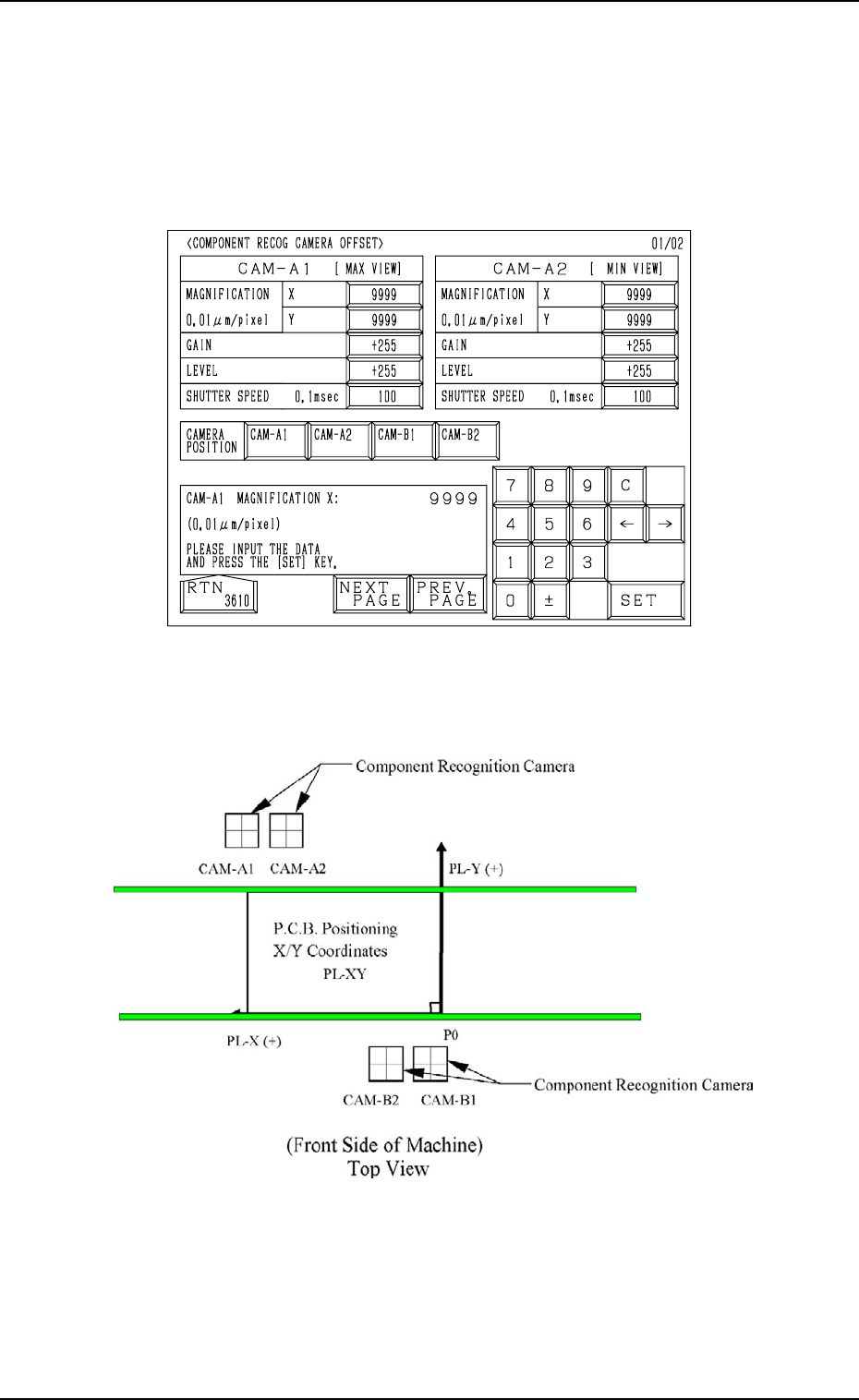

9. COMPONENT RECOG CAMERA OFFSET Display
9. COMPONENT RECOG CAMERA OFFSET Display
When the [COMP. RECOG CAMERA OFFSET] key is pressed at the “OFF-
SET DATA” display, the following display appears on the screen.
Every time the [NEXT PAGE] or the [PREV. PAGE] key is pressed, the next or
the previous page appears, enabling you to set parameters for different cam-
eras.
Fig. 2E85
• Parameters can be entered for each individual cameras “CAM-A1”, “CAM-
A2”, “CAM-B1”, and “CAM-B2”.
Fig. 2E86
