Page 3-24 Machine Adjustment 3-4-7 Input Check All the input addresses the machine uses are sampled every other second, and its state is dis- played in bit. List Display Display for Each Address • The states of the input…
Page 3-23
FUNCTIONS
3
3-4-6 Tray Adjustment
This is used to draw out the optional tray pallet and check how it puts back to the magazine.

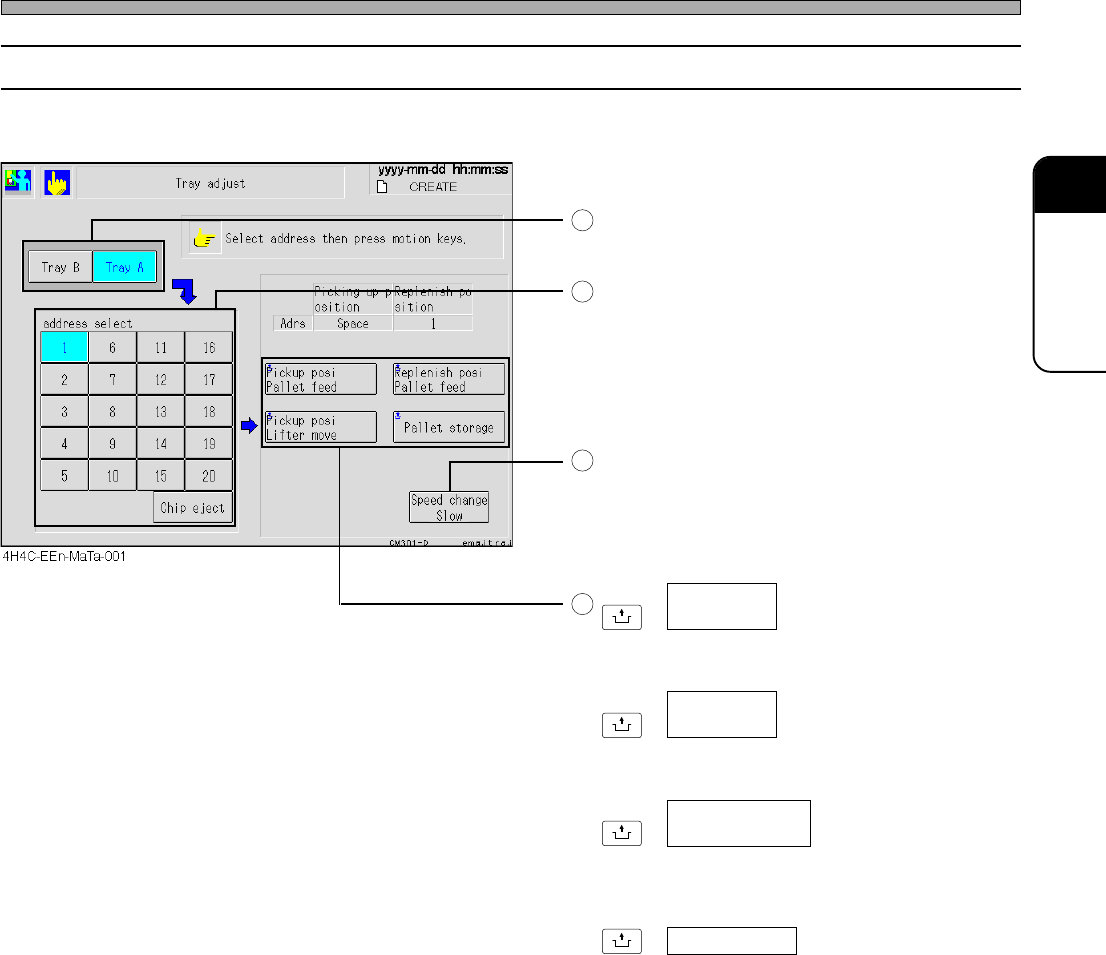

Select the tray feeder whose motion you will
check.
Select the tray address.
As the need arises, toggle the motion speed.
Every time this is pressed, the switch will
change over in sequence from: “Slow” → “Mid”
→ “Fast” → “Slow”.
UNLOCK
+
Draws out the specified tray pallet to the pick-
up position.
UNLOCK
+
Draws out the specified tray pallet to the lifter
position at that height.
UNLOCK
+
Draws out the specified tray pallet to the supply
area.
UNLOCK
+
Puts the tray pallets drawn out to the pick-up
position and the supply area back to the
magazine.
Machine Adjustment
4H4C-E-OMA03-A01-01
1
2
3
4
Pickup posi
Pallet feed
Pickup posi
Lifter move
Replenish posi
Pallet feed
Pallet storage
Page 3-24
Machine Adjustment
3-4-7 Input Check

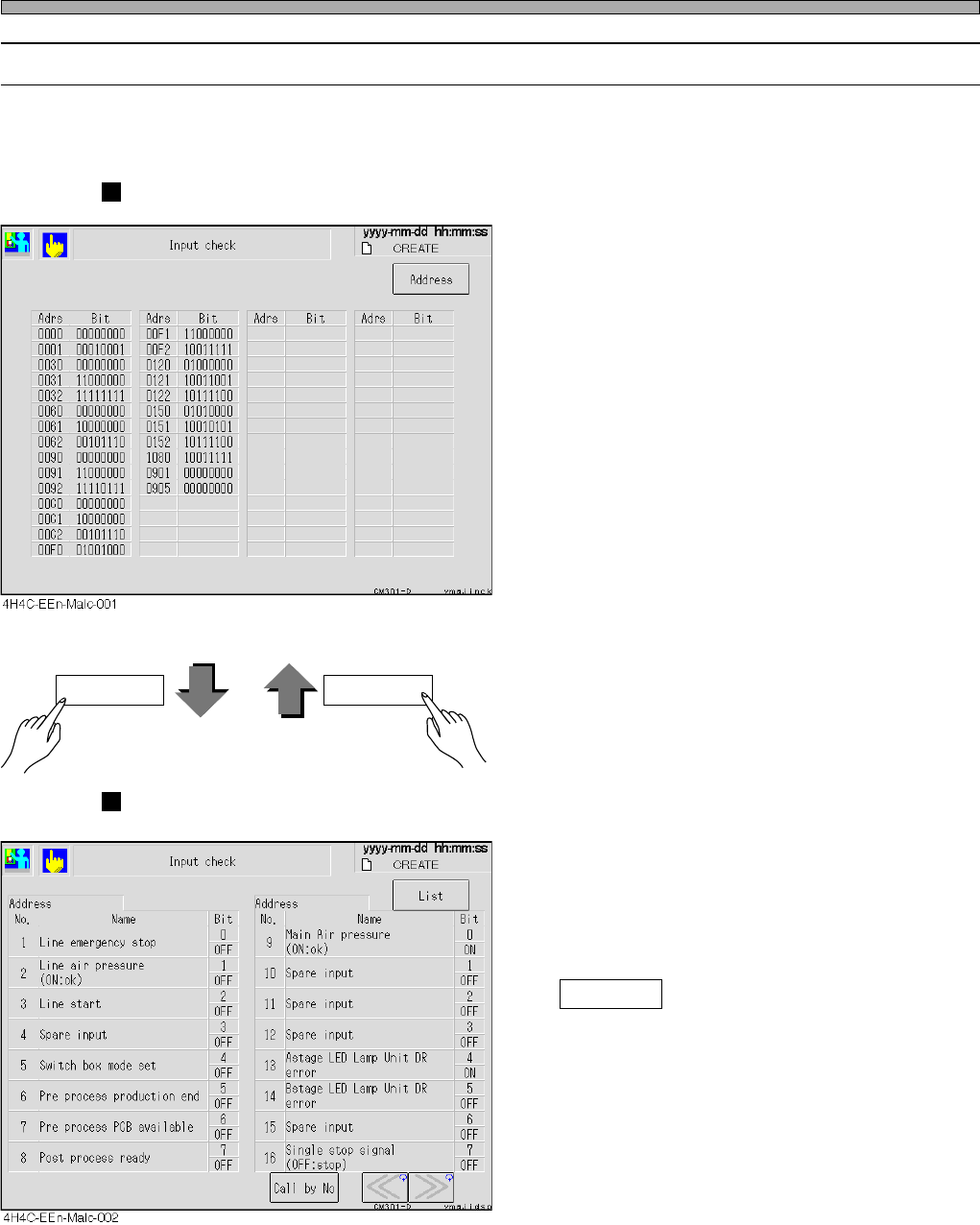

All the input addresses the machine uses are sampled every other second, and its state is dis-
played in bit.
List Display
Display for Each Address
• The states of the input addresses the machine
uses are displayed with names for each bit.
Highlighted name shows its bit is ON (1).
(When you press the “Name” button, the state
of that bit is checked and displayed again.
Call by No
Displays the address that includes the speci-
fied No. at the left side of screen.
Address List
4H4C-E-OMA03-A01-01
Page 3-25
FUNCTIONS
3
Machine Adjustment
3-4-8 Output Check

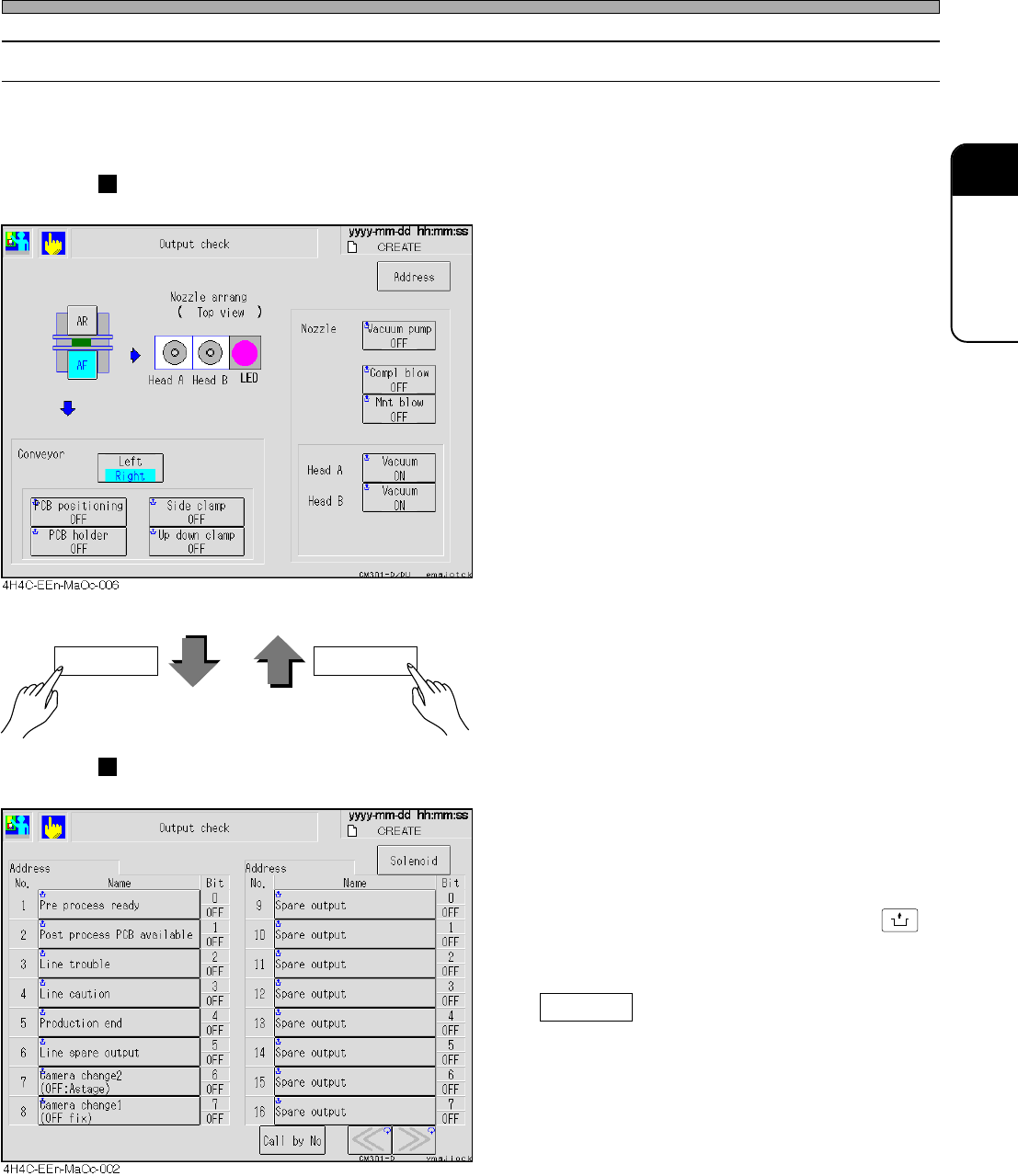

This is used to check the states of the valves which are used frequently in adjustment for each
stage and work each of them alone.
Solenoid Display
Nozzle
You can work each valve of compulsory blow
and vacuum.
Conveyor
You can work the board positioning of the
board holder, side clamp and upper/lower
clamp.
Head A / Head B
Works the vacuum valve of the head.
Display for Each Address
• The states of the output addresses the ma-
chine uses are displayed with names for each
bit.
Highlighted name shows its bit is ON (1).
When you press the “Name” button with
UNLOCK
pressed, the signal opposite to the current
state is output and displayed again.
Call by No
Displays the address that includes the speci-
fied No. at the left side of screen.
Address Solenoid
4H4C-E-OMA03-A01-05
