Page 4-3 PRODUCTION 4 4H4C-E-OMA04-A01-00 4-2 Before Production 4-2-1 Start-up Inspection Before starting operation, check the following points. Are all the covers closed? Are emergency stop buttons reset? ( SAFETY PRECA…

100%1 / 138
Page 4-2
4H4C-E-OMA04-A01-02
4-1 Production Work Flow
This section describes an operator’s work for production.
∗ Entrust the operations inside to an engineer.
1 Preparations
• Start-up inspection (
4-2-1 Start-up
Inspection)
• Setting production materials ( Chapter 5
SETTING PRODUCTION MATERIALS)
Preparation
OK
5 Finishing production
( 4-6 Completion of Production)
• Perform the operation to finish production.
Production finishes.
3 Starting production
( 4-3-2 Starting Operation)
• Perform the operation to start production.
Production starts.
File operation (Data loading, etc.)
Troubleshooting of board recognition
error, etc.
2 Starting up machine
( 4-3-1 Starting up Machine)
• Turn on the power supply switch to start up
the machine.
Adjust the equipment if it is in bad
condition.
4 Supplying chips ( Chapter 5 SETTING
PRODUCTION MATERIALS)
• Supply the chips when they are run out.
T
R
I
P
O
F
F
O
N
O
P
E
N
R
E
S
E
T
4H4C-AN00
Page 4-3
PRODUCTION
4
4H4C-E-OMA04-A01-00
4-2 Before Production
4-2-1 Start-up Inspection
Before starting operation, check the following points.
Are all the covers closed?
Are emergency stop buttons reset?
(
SAFETY PRECAUTIONS)
State of emergency stop
State of reset
Are there any foreign objects on conveyors or
feeder bases?
Chips
Tools
Emergency
stop button
433C-039E
433C-040E
Front View Rear View
∗ Pull it forward to reset.
Front Safety Cover
4H4C-AN00
4H4C-AN00
4H4C-AN00
4H4C-AO00
Rear Safety Cover
Side Safety Cover
Page 4-4
Before Production

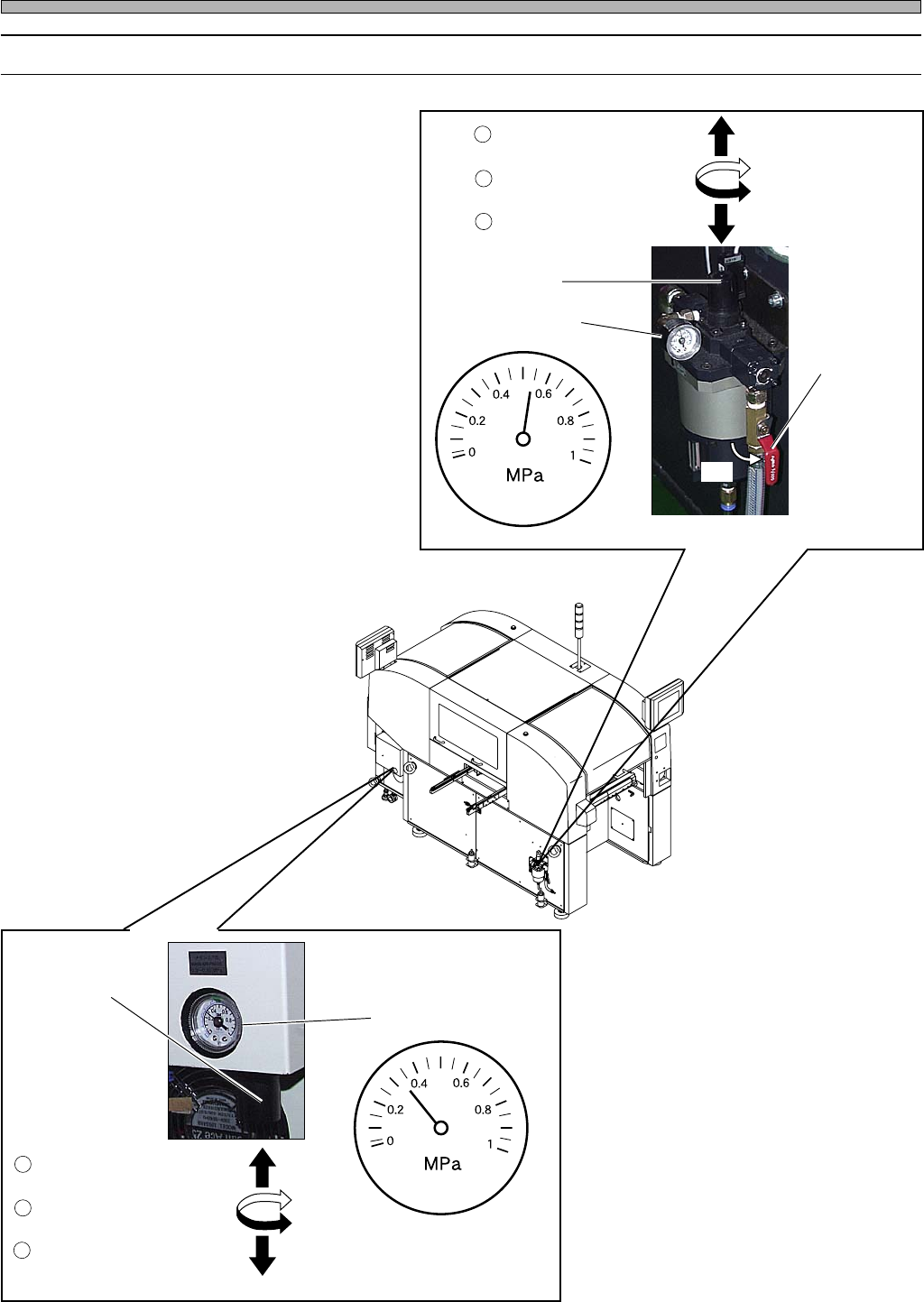

4-2-2 Checking Air Pressure
1. Remove the screw with a driver, and
open the cover at the lower side of
the rear operation area.
2. Make sure the pressure gauge
indications are within the following
ranges.
Main Body: 0.49 MPa or more
and 0.78 MPa or less
Tray Feeder: 0.30 MPa or more
and 0.35 MPa or less
∗ Make sure the lever is ON.
∗ If air pressure is improper, turn the valve
and adjust it.
1
Unlock the valve.
2
Adjust the air pressure.
3
Lock the valve.
Valve
Pressure Gauge
Lever
To turn it
ON, throw
it down.
4H4C-001P
ON
Front Side
4H4C-AN00
4H4C-E-OMA04-A01-00
4H4C-002P
3
Lock the valve.
2
Adjust the air pressure.
1
Unlock the valve.
Valve
Pressure Gauge
4H4C-017E
