Page 1-11
GENERAL DESCRIPTION
1
4M4C-AC00
Names and Mechanism of Each Unit
4H4C-E-OMA01-A01-00

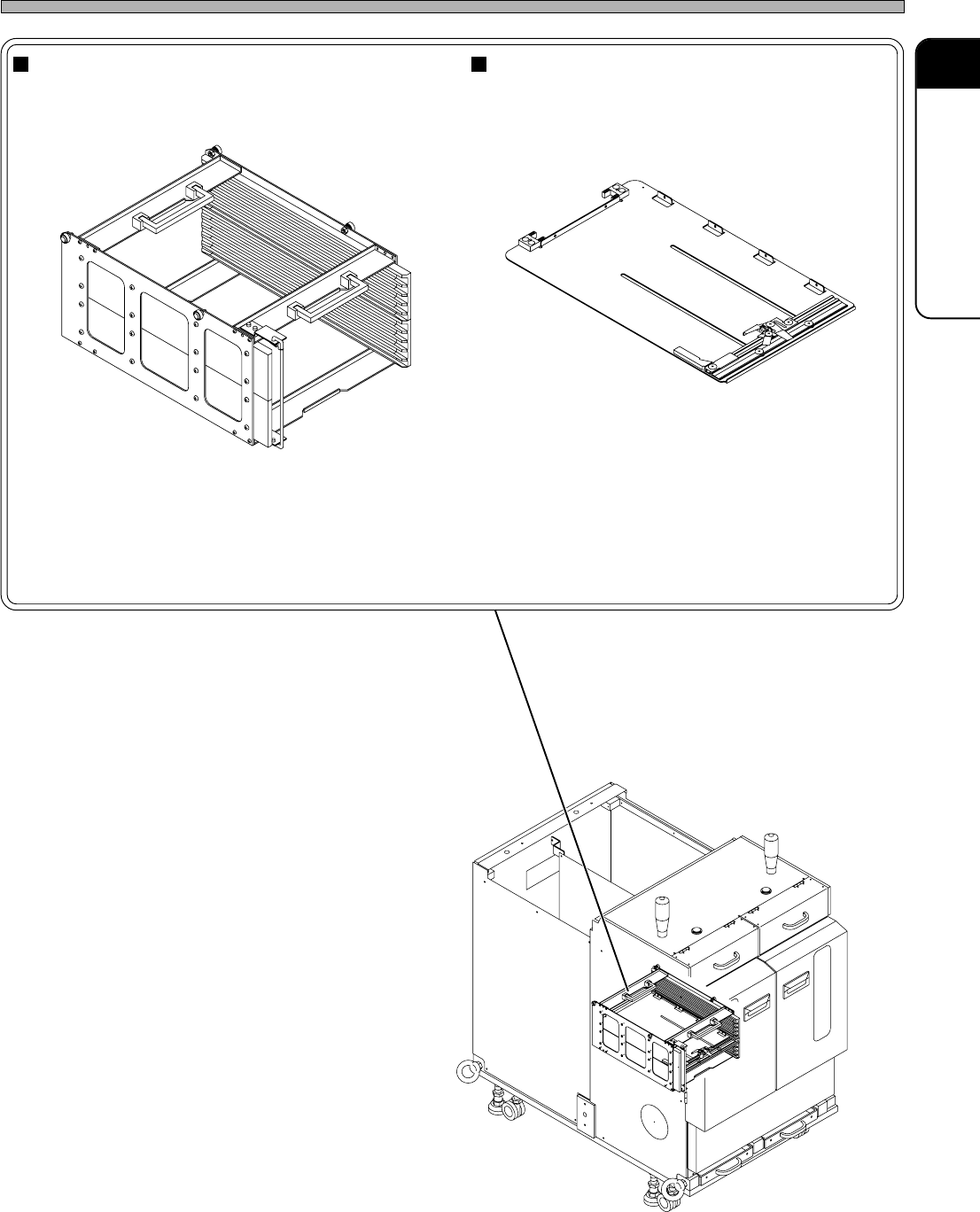

Multi-step Tray Magazine
Contains ten tray pallets.
Tray Pallet
Trays can be set on this pallet.
040KC0AA00
040JC0AA00
Page 1-12

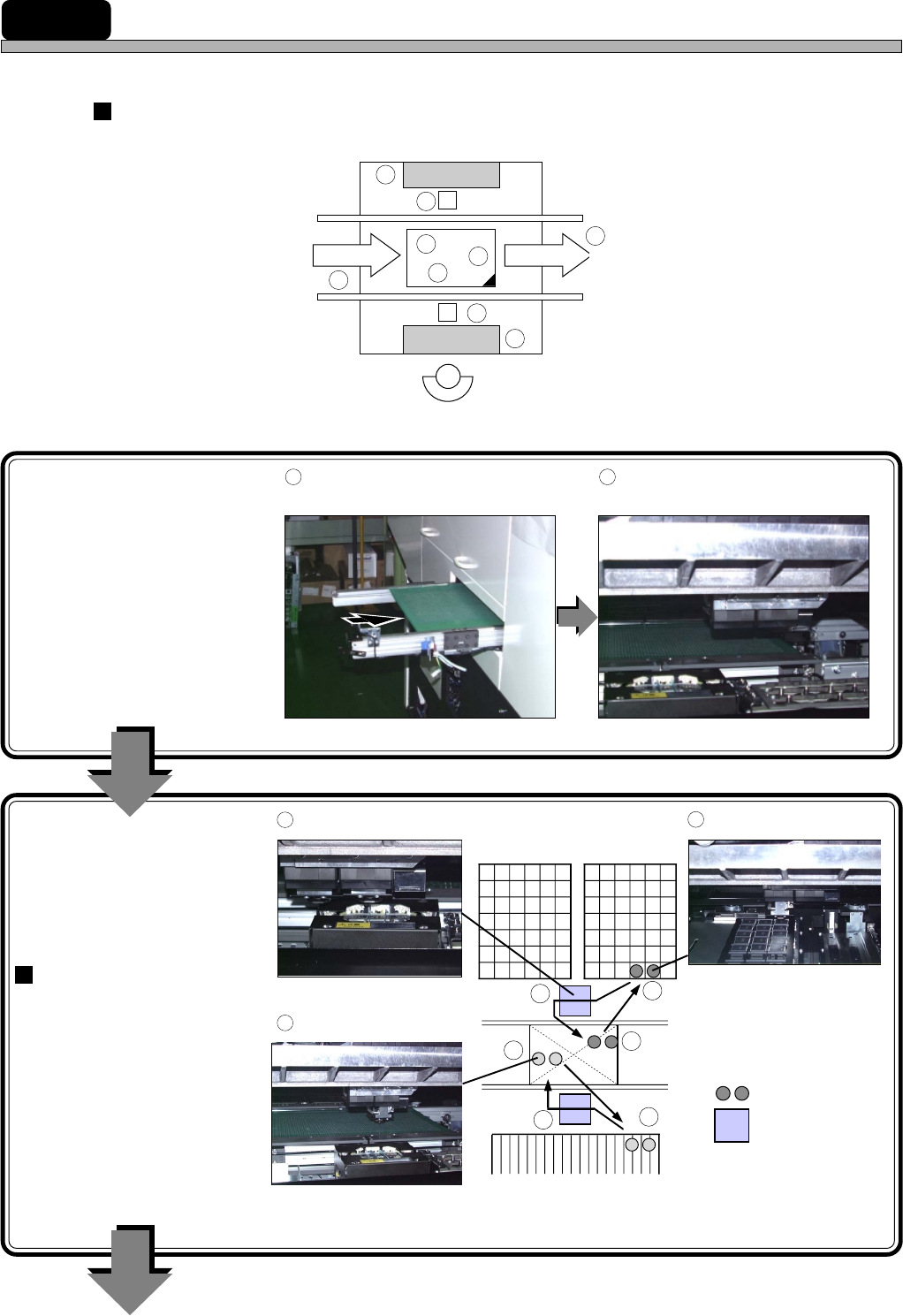

1-2 Mounting Mechanism
This section describes the mounting mechanism in due order.
Mobile Parts
1
The board transported in
from the previous process
is set in the board holder
on the stage A.
2
Two head units (four heads in
all) mount chips precisely.
Alternate mounting
While one head unit
recognizes and mounts
chips, the other head unit
picks up and recognizes
chips.
Transporting
board in
1
A board is transported in from
the previous process.
2
The board is clamped and
recognized.
Mounting chips
444C-106E
H2
From previous process
To next process
Rear side
Front side
H1
3
4
5
5
2
3
4
1
3
Picking up chips
4H4C-016P
4H4C-006E
Tray Feeder Supply Area
4H4C-006P
5
Mounting the chips
4H4C-017P
4
Recognizing the chips in a row
4H4C-015P4H4C-014P
4
3
5
5
4
3
4H4C-E-OMA01-A01-01
6
Tape Feeder Supply Area
: Head
: Line Camera
Page 1-13
GENERAL DESCRIPTION
1
Mounting Mechanism
3
After the chips have been
mounted on the board, it is
transported out to the next
process.

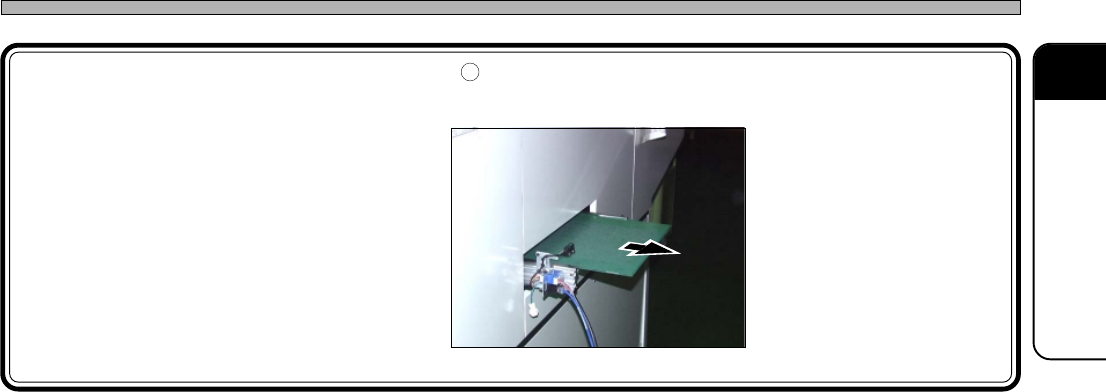

Transporting
board out
6
The board is transported out to
the next process.
4H4C-018P
