Page 3-8 Production Settings 3-2-4 Board T ransport This is used to perform each step from transporting board in to transporting it out to the next process. • The board on the conveyor is displayed as a green rectangle. …
Page 3-7
FUNCTIONS
3
Production Settings
Result of calculation
Stage Selection
Tray selection (Only when H2 is selected)
[Adrs]
The address No. of feeder table
Chip/Count
H1: The number of chips per reel
H2: The number of chips per pallet
Mount/Board
The number of the chips to be
mounted per board
Skip/Board
The number of the mounting skip
points per board
[Total Chip]
The consumption of chips to the
count of boards
[Reel]
H1: The number of tape reels required for the count of boards
H2: The number of pallets required for the count of boards
Chip/Count
Mounting/
Board
Skip/Board
4H4C-E-OMA03-A01-02
Board Count
Page 3-8
Production Settings
3-2-4 Board Transport
This is used to perform each step from transporting board in to transporting it out to the next
process.
• The board on the conveyor is displayed as a green rectangle. While it is being transported, its
image is blinking.
∗ After pressing PCB transfer on the production settings menu, make sure the servo switch is ON,
and then press
UNLOCK
→
START
.
UNLOCK
+ Carry in
Transports the board in from the previous
process to the left conveyor.
UNLOCK
+ Load
Transports the board from the left conveyor to
the right conveyor.
UNLOCK
+ Carry out
Transports the board from the right conveyor
out to the next process.
4H4C-E-OMA03-A01-01
Page 3-9
FUNCTIONS
3

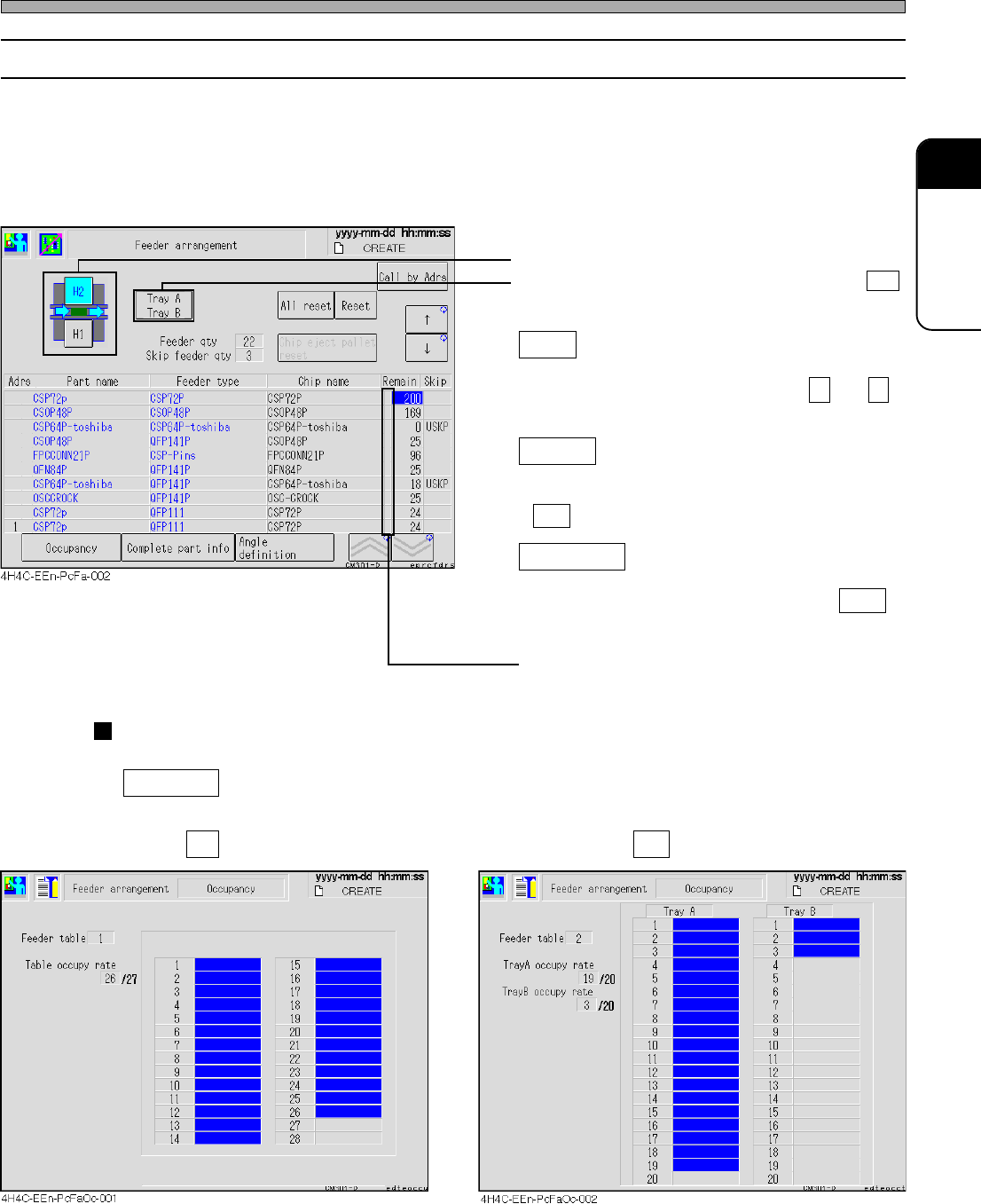

3-2-5 Feeder Arrangement
You can check which chip is on which feeder address.
First, check the state of the feeders arranged on the stage.
• The information of the chips on each feeder is displayed in the order of feeder address. Through
the state of occupancy, you can see which feeder address on the feeder table is used at a glance.
The number of the residual chips on each reel and tray is also displayed.
• Select the feeder table you will check.
• Select the tray you will check. (Only when H2
is selected)
Reset
Resets the number of the residual chips
pointed by a cursor now. (Pressing ↑ and ↓
moves a cursor up and down.)
All reset
Resets the number of the residual chips on all
the feeders. When the message appears, press
Yes .
Call by Adrs
Pressing this switch displays the input screen.
When you enter an address and press ENT ,
a cursor moves to the specified address.
Lights up in yellow when chips run out.
Occupancy
Occupancy : Pressing this switch displays the following screen.
The state of physical occupancy of table is displayed.
H1 selected H2 selected
Production Settings
4H4C-E-OMA03-A01-03
