3-2 Production Settings
This is used for the settings requisite for production and to check the motion.
1. Press
Product
config
on the main menu.

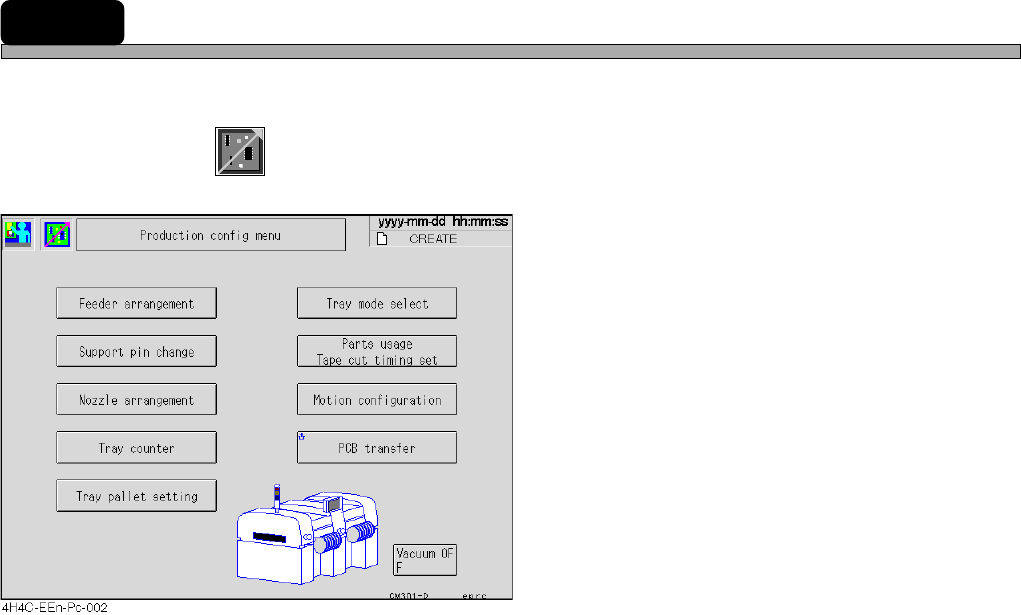

•“Production config menu” is displayed.
∗ Pressing a function switch displays each
setting screen.
4H4C-E-OMA03-A01-02
Page 3-5
FUNCTIONS
3
3-2-1 Nozzle Settings
You can check the nozzle arrangement of each head.

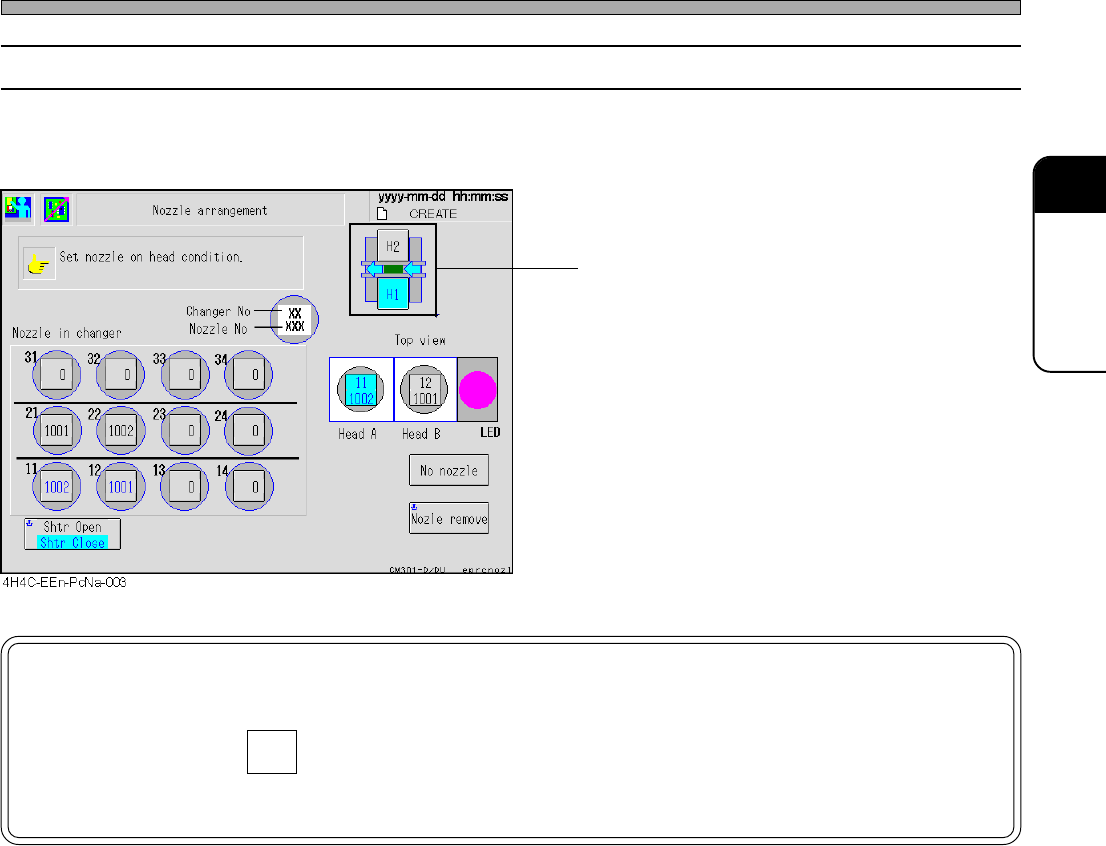

The names of the nozzles attached to each head currently are displayed.
• Press the head you would like to check.
∗ For information about how to change nozzles,
see “9-4 Nozzle Exchange”.
NOTICE
Take care not to misset the nozzle, or it will be damaged.
For example, when the nozzle is set on the head, the No. 11 on the nozzle changer is vacant.
If another nozzle is set in the No. 11 by mistake, the nozzles will collide with each other because the
machine will put the nozzle on the head back to the No. 11 in changing nozzles.
Production Settings
4H4C-E-OMA03-A01-03
11
1001
Page 3-6
Production Settings
3-2-2 Selecting Tray Mode
This is used to select the table that will work in the reserved mode.
∗ The table mode is switched on PT.
• Press the feeder table to be worked.
∗ The highlighted switch shows the table set
now.
∗ When the power is on, changing motion is
performed.
3-2-3 Calculating Chip Consumption
This machine can calculate the consumption of chips to the count of production boards beforehand.

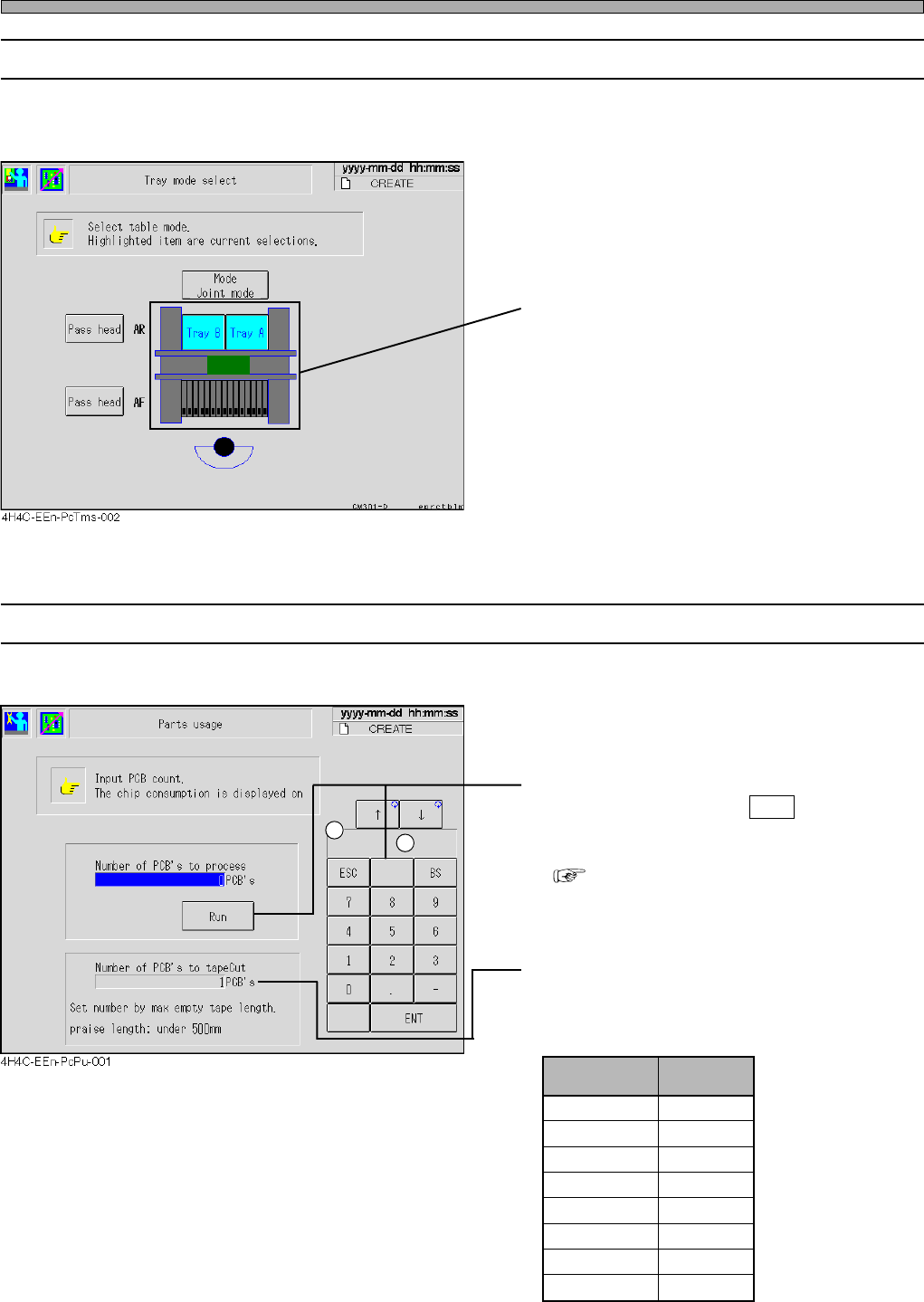

• Enter the count of production boards with
numeric keys, then press Run .
The number of the chips required to be set in
the feeder is calculated and displayed.
( Next Page)
• Tape Cut Timing Setting (Option)
When changing the number of times of cutting,
the length of the empty tape must be the value
or under in the following list.
4H4C-E-OMA03-A01-03
Tape Width Length
8 mm
12 mm
16 mm
24 mm
32 mm
44 mm
56 mm
72 mm
500 mm
500 mm
400 mm
400 mm
300 mm
300 mm
200 mm
200 mm
1
2
