Page 3-20 3-4 Machine Adjustment This is used when you check the motion and make an adjustment of each part of the machine. ∗ On the main menu (default state) in the operator mode, you cannot select this function. 1. Pre…
Page 3-19
FUNCTIONS
3
Production Information
3-3-4 Reset
This is used to reset production information.
Choose the information you would like to reset.
It is possible to choose more than a piece of
information at a time. When you press the
switch again, it is canceled.
Press Run .
Press Yes when the message appears.
1
2
4H4C-E-OMA03-A01-03
Page 3-20
3-4 Machine Adjustment
This is used when you check the motion and make an adjustment of each part of the machine.
∗ On the main menu (default state) in the operator mode, you cannot select this function.
1. Press
Machine
adjust
on the main menu.
•“Machine adjustment menu” is displayed.
∗ Pressing a switch displays each setting screen.
3-4-1 Returning to Origin
This is used to return all the axes to their origins.
∗ Make sure no board is on the conveyor beforehand.
∗ After you have pressed Return to origin on the machine adjustment menu, make sure the servo
switches are ON, and then press
UNLOCK
→
START
. All the axes return to their origins.
4H4C-E-OMA03-A01-01
Page 3-21
FUNCTIONS
3

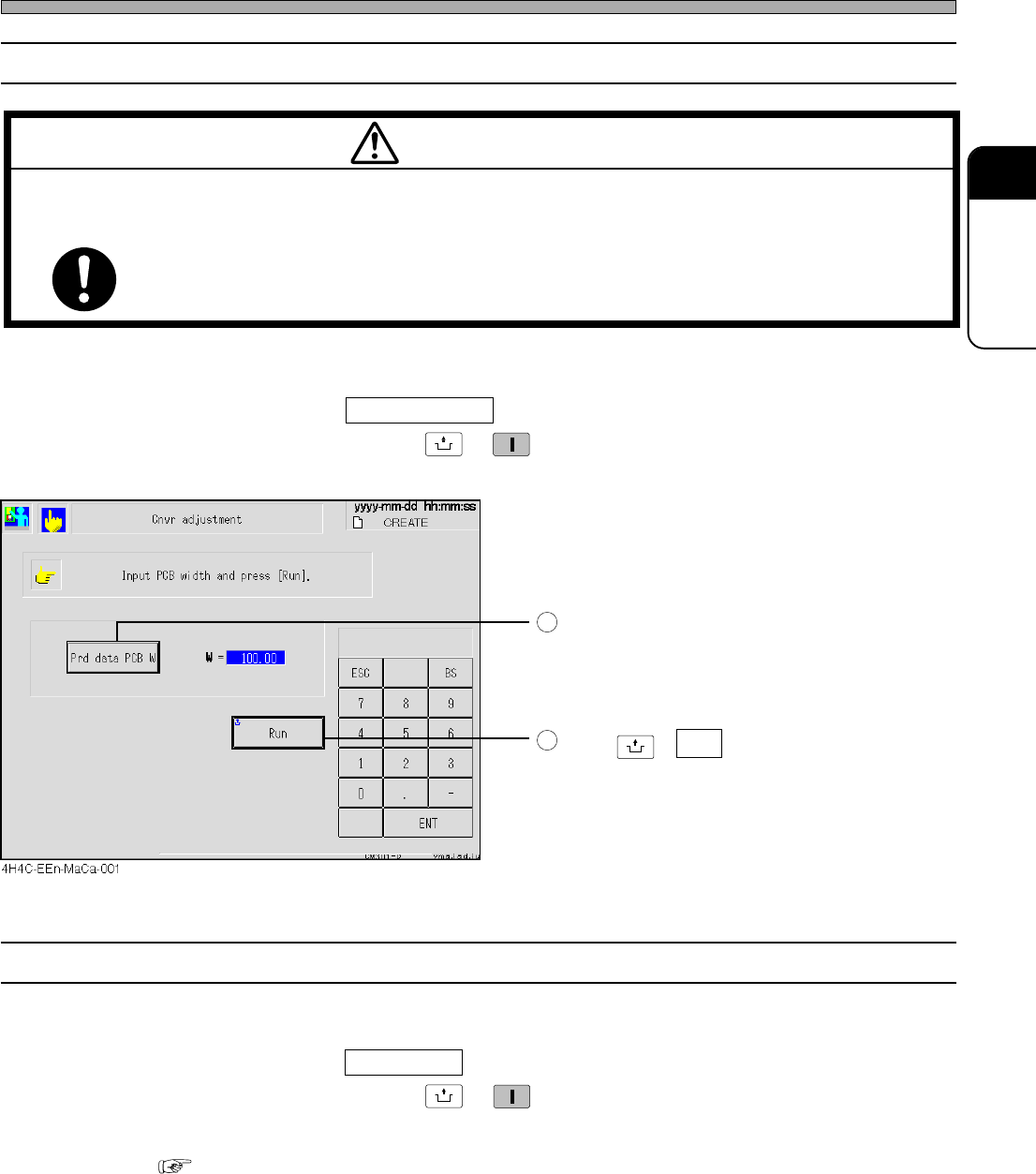

3-4-2 Conveyor Width Adjustment
This is used to adjust the widths of all the conveyors to the set size of board automatically.
∗ Make sure no board is on the conveyor beforehand.
∗ After you have pressed Cnvr adjustment on the machine adjustment menu, make sure the servo
switches are ON, and then press
UNLOCK
→
START
. The conveyor width adjustment screen is dis-
played.
Press this switch to adjust the width to the
board width of production data.
When you would like to set the optional board
width, enter it with numeric keys.
Press
UNLOCK
+ Run .
The rails are adjusted automatically.
3-4-3 Board Transport
This is used to perform each step from transporting board in to transporting it out to the next
process.
∗ After you have pressed PCB transfer on the machine adjustment menu, make sure the servo
switches are ON, and then press
UNLOCK
→
START
. The board transport screen is displayed.
∗ The operating method is the same as that of the board transport of production settings.
( 3-2-4 Board Transport)
Machine Adjustment
1
2
M35E
TURN OFF THE SERVO SWITCH BEFORE PLACING A BOARD ON OR
REMOVING IT FROM THE CONVEYOR.
You will have serious injury if the machine is actuated.
WARNING
4H4C-E-OMA03-A01-01
