Page 4-1
4H4C-E-OMA04-A01-00
Chapter 4
PRODUCTION
Safety during Production
Do not put hands into the machine while it is running. The machine is running in the
following states.
1. While the machine is considered actually running
2. During a stop to wait for a board
3. During a temporary stop
Depending on circumstances, the machine may begin running unexpectedly, espe-
cially “2. During a stop to wait for board” and “3. During a temporary stop”.
When putting hands into the machine, make sure servo switch is OFF or power
supply is OFF.
Daily Production
This chapter describes the basic operation for automatic operation, the basic work
against production stops and so on.
Page 4-2
4H4C-E-OMA04-A01-02

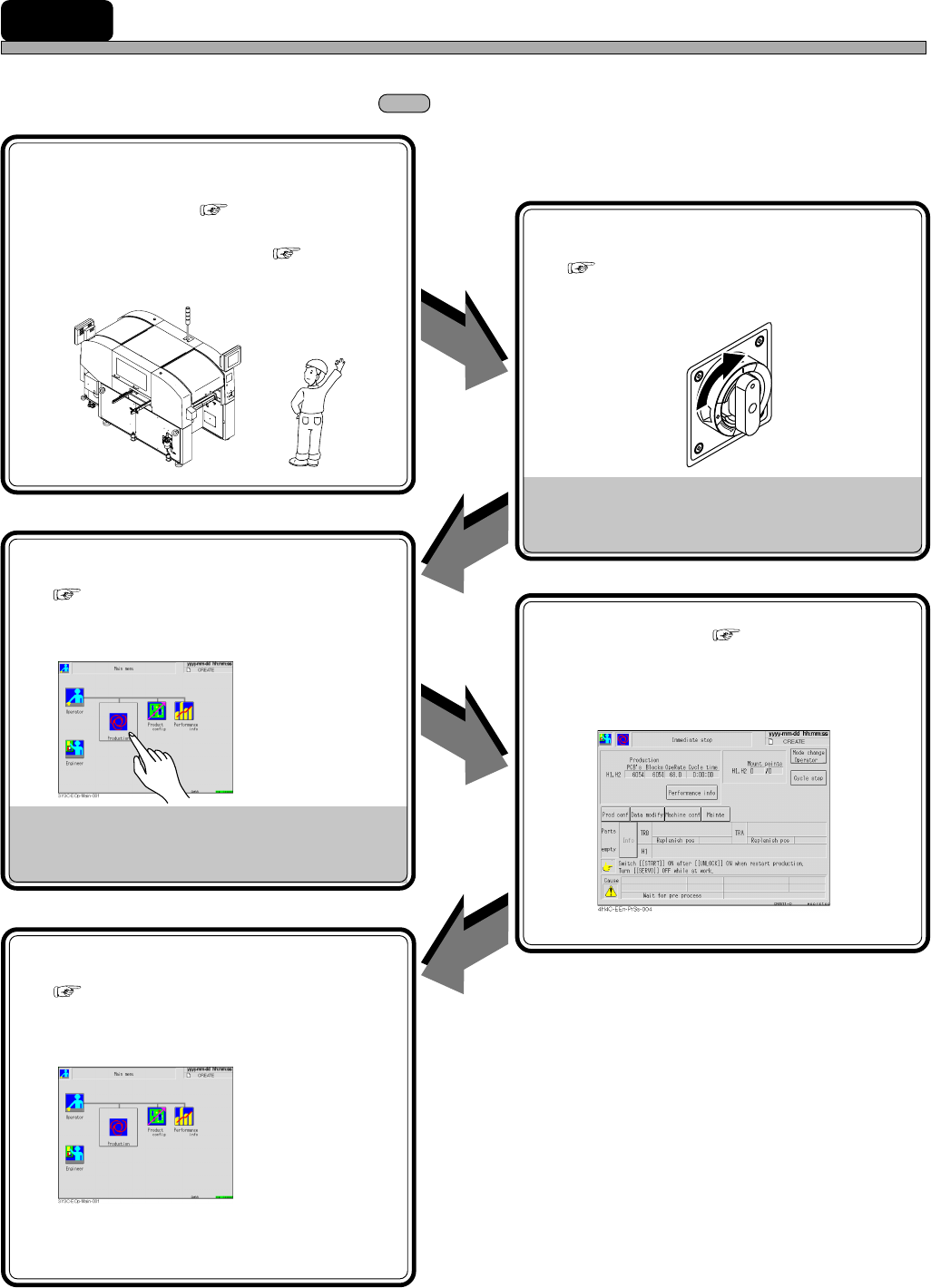

4-1 Production Work Flow
This section describes an operator’s work for production.
∗ Entrust the operations inside to an engineer.
1 Preparations
• Start-up inspection (
4-2-1 Start-up
Inspection)
• Setting production materials ( Chapter 5
SETTING PRODUCTION MATERIALS)
Preparation
OK
5 Finishing production
( 4-6 Completion of Production)
• Perform the operation to finish production.
Production finishes.
3 Starting production
( 4-3-2 Starting Operation)
• Perform the operation to start production.
Production starts.
File operation (Data loading, etc.)
Troubleshooting of board recognition
error, etc.
2 Starting up machine
( 4-3-1 Starting up Machine)
• Turn on the power supply switch to start up
the machine.
Adjust the equipment if it is in bad
condition.
4 Supplying chips ( Chapter 5 SETTING
PRODUCTION MATERIALS)
• Supply the chips when they are run out.
T
R
I
P
O
F
F
O
N
O
P
E
N
R
E
S
E
T
4H4C-AN00
Page 4-3
PRODUCTION
4
4H4C-E-OMA04-A01-00
4-2 Before Production

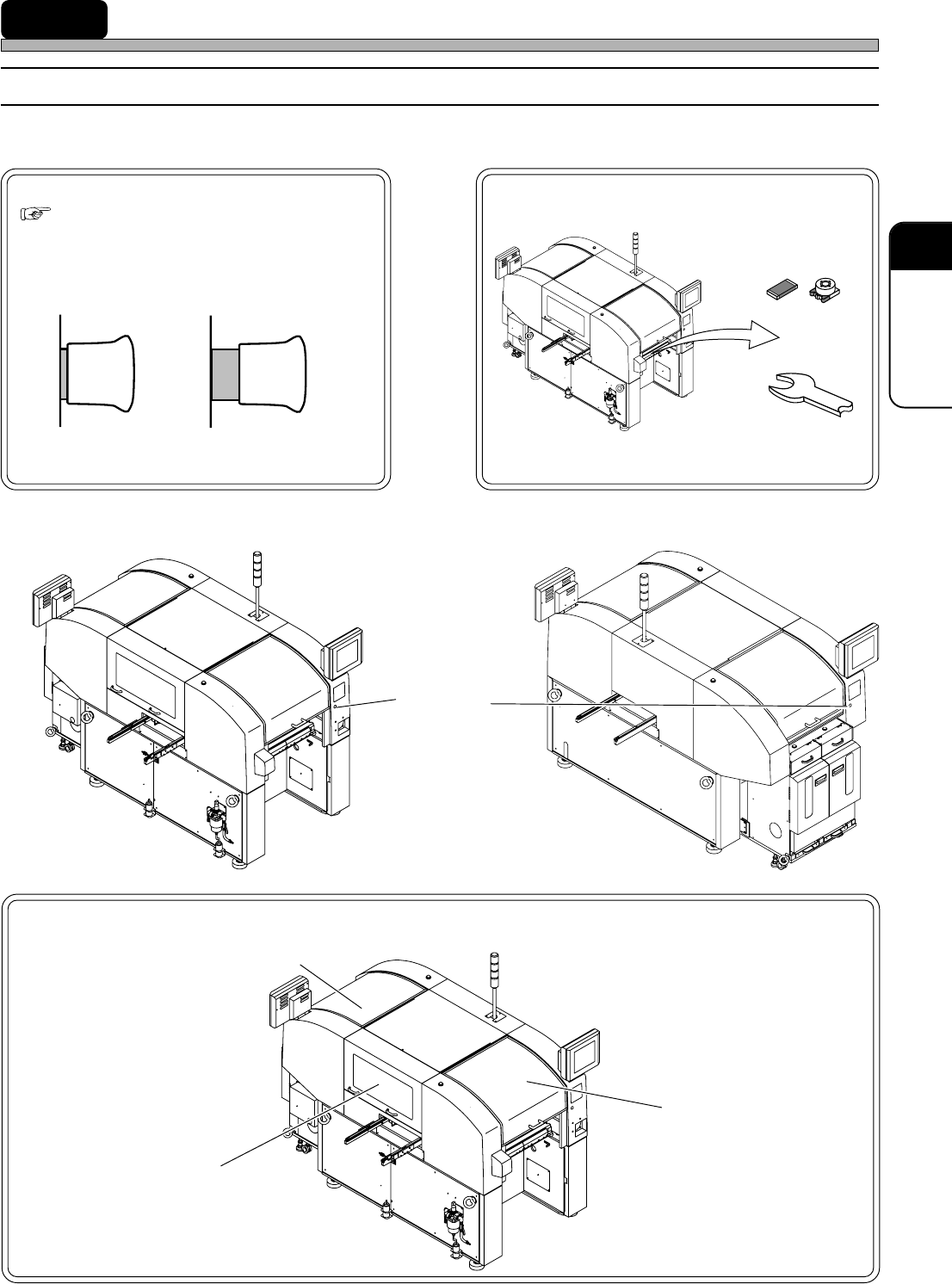

4-2-1 Start-up Inspection
Before starting operation, check the following points.
Are all the covers closed?
Are emergency stop buttons reset?
(
SAFETY PRECAUTIONS)
State of emergency stop
State of reset
Are there any foreign objects on conveyors or
feeder bases?
Chips
Tools
Emergency
stop button
433C-039E
433C-040E
Front View Rear View
∗ Pull it forward to reset.
Front Safety Cover
4H4C-AN00
4H4C-AN00
4H4C-AN00
4H4C-AO00
Rear Safety Cover
Side Safety Cover
