Page 2-3
BASIC OPERATION
2
F 1F 2F 3F 4F 5F 6F 7F 8
2-2 Touch Panel
This machine is operated by using the touch panel and operating panel. This section describes the
basic operation of touch panel.

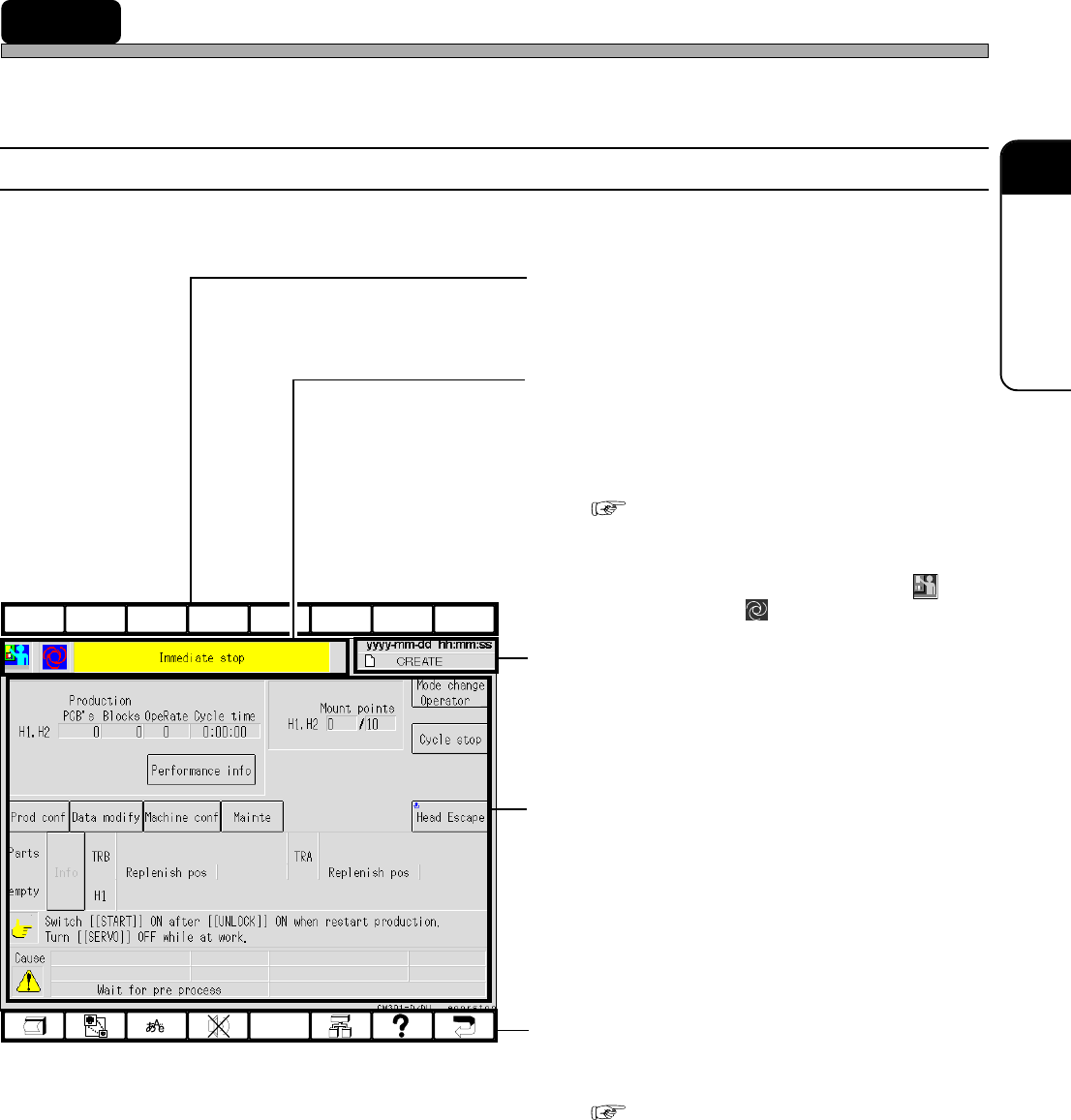

2-2-1 Touch Panel Configuration
Touch panel configuration is as follows.
a) Upper Function Keys
These are currently not used. They perform no
function if pressed.
b) Hierarchy, Mode and Menu Name
Display Area
The state of current displayed screen is
displayed by the icon and the item name. This
is the same icon as appears in the Main Menu.
( 2-3 Main Menu)
e.g.) The screen as shown left
This shows this machine has come to an
immediate stop in the engineer mode ( )
during production ( ).
c) Date, Time and Data Name Display
Area
Present date, time and data name are dis-
played.
d) State Display, Switches and Mes-
sages Area
The state of this machine, messages, the
switches for operation and so on are displayed.
e) Lower Function Keys
These are allotted the functions to be used
frequently.
( 2-2-2 Function Keys)
4H4C-E-OMA02-A01-04
4H4C-EEn-PrSs-005
Page 2-4
Touch Panel

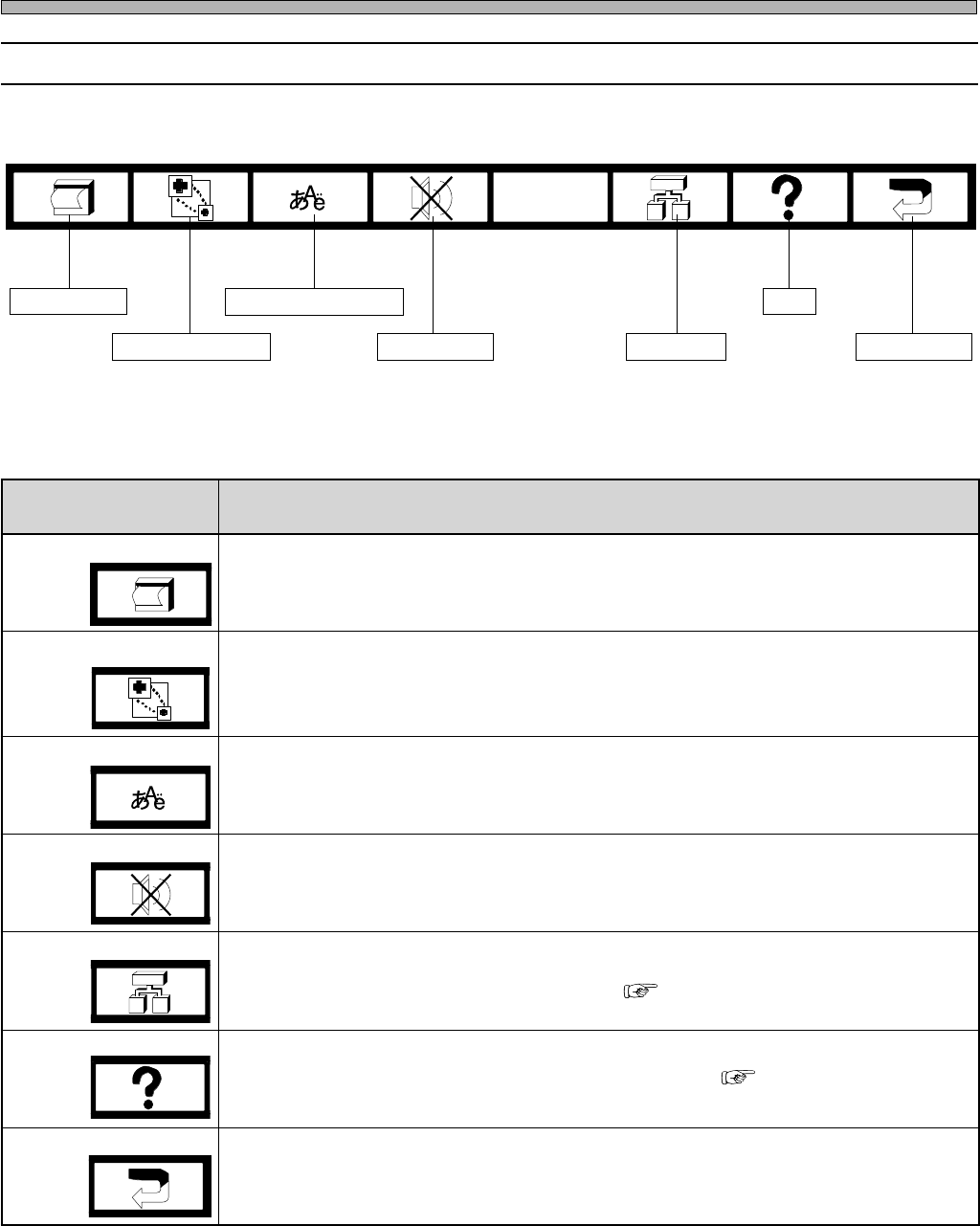

2-2-2 Function Keys
The lower function keys are allotted the following functions. When you press the key, it functions.
Screen print
Superimposition
Language selection
Buzzer stop
Tree jump
Help
Return key
4H4C-005TE
4H4C-E-OMA02-A01-01
yeknoitcnufrewoL noitcnuF
tnirpneercS
.yalpsidneercsfoypocdrahtnirpotdesU
.TPhtiwdetcennocretnirpehtmorftuodetnirpsitI•
noitisopmirepuS siyeksihtemityrevE.lenaphcuotehtnodesopmirepussineercsnoitingoceR
ezis-lluf:morfecneuqesnirevosegnahcneercsnoitingocer,desserp → ,ezis-2/1
tfelreppu → thgirreppu,ezis-2/1 → thgirrewol,ezis-2/1 → tfelrewol,ezis-2/1 → ton
.deyalpsid
noitcelesegaugnaL
.elggotlliw)esenapaJrohsilgnE(segaugnaleht,yeksihtsserpuoynehW
potsrezzuB
.gnidnuossitinehwrezzubapotsotdesU
pmujeerT
hcihw,deyalpsidsineercseertunemeht,neercsynatayeksihtsserpuoynehW
)pmujeerTegaptxeN(.neercsunemnesohcehtotgnipmujselbane
pleH
)pleHegaptxeN(.deyalpsidsineercsdeyalpsidtnerrucehtfonoitpircseD
yeknruteR
.neercssuoiverpehtotsnruteR
( Next Page Tree Jump)
( Next Page Help)
Page 2-5
BASIC OPERATION
2

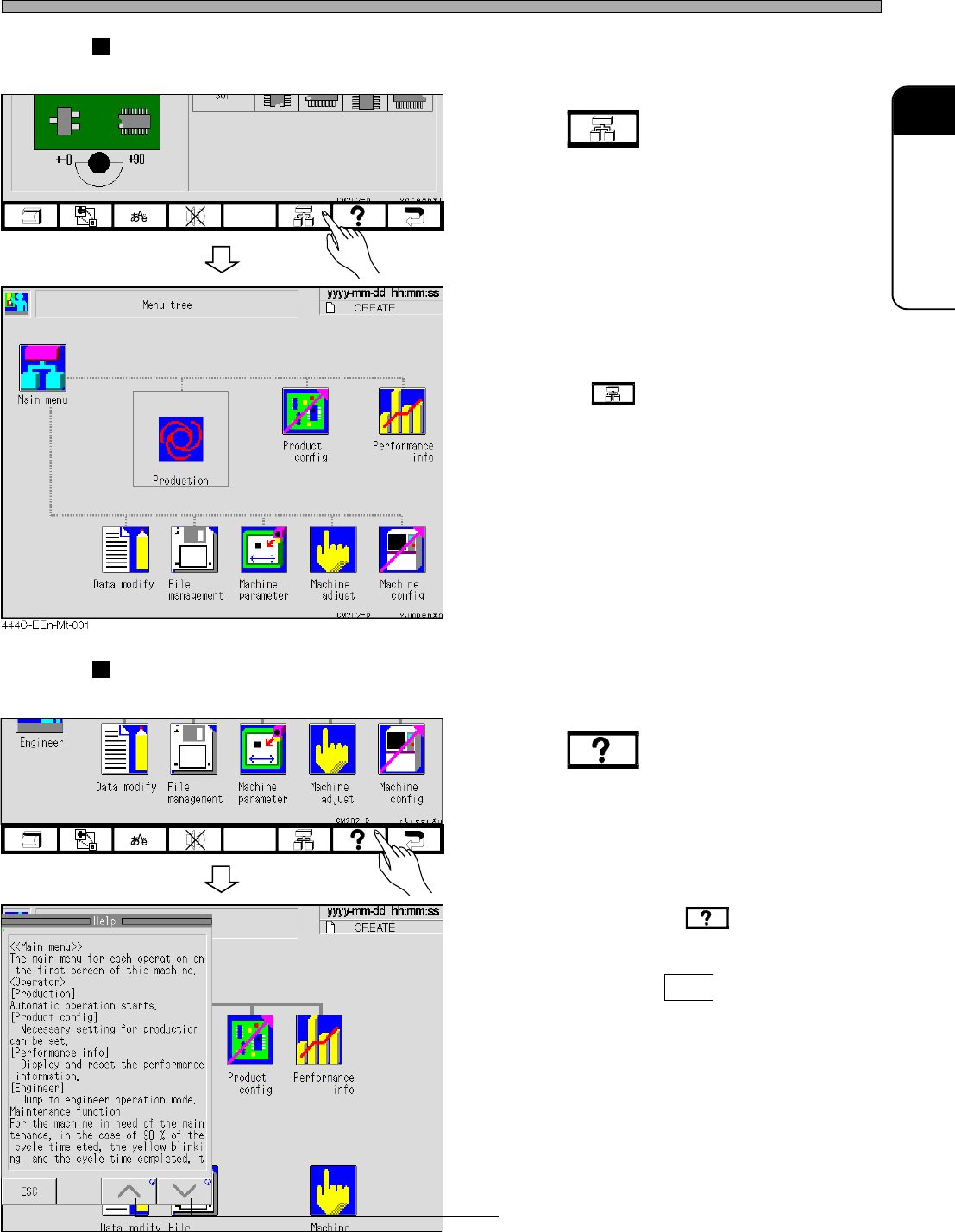

Tree Jump
This key is used to jump from the current screen to another screen immediately.
1. Press .
∗ Pressing at any screen displays the
menu tree screen.
Help
This key is used to display an explanation or operation instruction of a function.
1. Press .
• The help screen is displayed.
• Every time you press , the position of the
message changes alternately (Left ⇔ Right).
• To exit Help, press ESC .
Screen is scrolled in the direction of arrow.
Touch Panel
444C-EEn-DmAd-001
444C-EEn-Main-001
444C-EEn-Main-003
4H4C-E-OMA02-A01-01
