GENERAL DESCRIPTION
1
Names and Mechanism of Each Unit
Board Holder
Fixes a board by sandwiching it between Y and Z
directions, and hold it at the mount height, during
mounting.
X-Y Unit
Moves the head unit to the appointed position
quickly and precisely.
4H4C-AK00
010UC0AA01
4H4C-E-OMA01-A01-00
Nozzle Changer (Two in All)
Changes nozzles automatically during production.
15VHC0AA01
0503C0AA01
4H4C-AL00
Page 1-8
Names and Mechanism of Each Unit
Recognition Camera
This machine has two types of recognition camera: head camera and line camera.
a) Head Camera
The head camera is set on the head unit, and recognizes the precise position of a board.
b) Line Camera
The line camera is set on the frame of main body, and recognizes chips (positioning deviation,
inclination, chipping, etc.).
Line camera
Board
[Process]
Two chips are scanned and recognized in a row by
moving the head so that it will move across the line.
Start
Batch
recognition
4H4C-004E
Line width : 50 mm
4H4C-002E
Recognition image
Reference position
Board
Y
X
4H4C-003E
016JC0AA
4H4C-E-OMA01-A01-00
Recognition
Mounting
Chip pick-up
Page 1-9
GENERAL DESCRIPTION
1

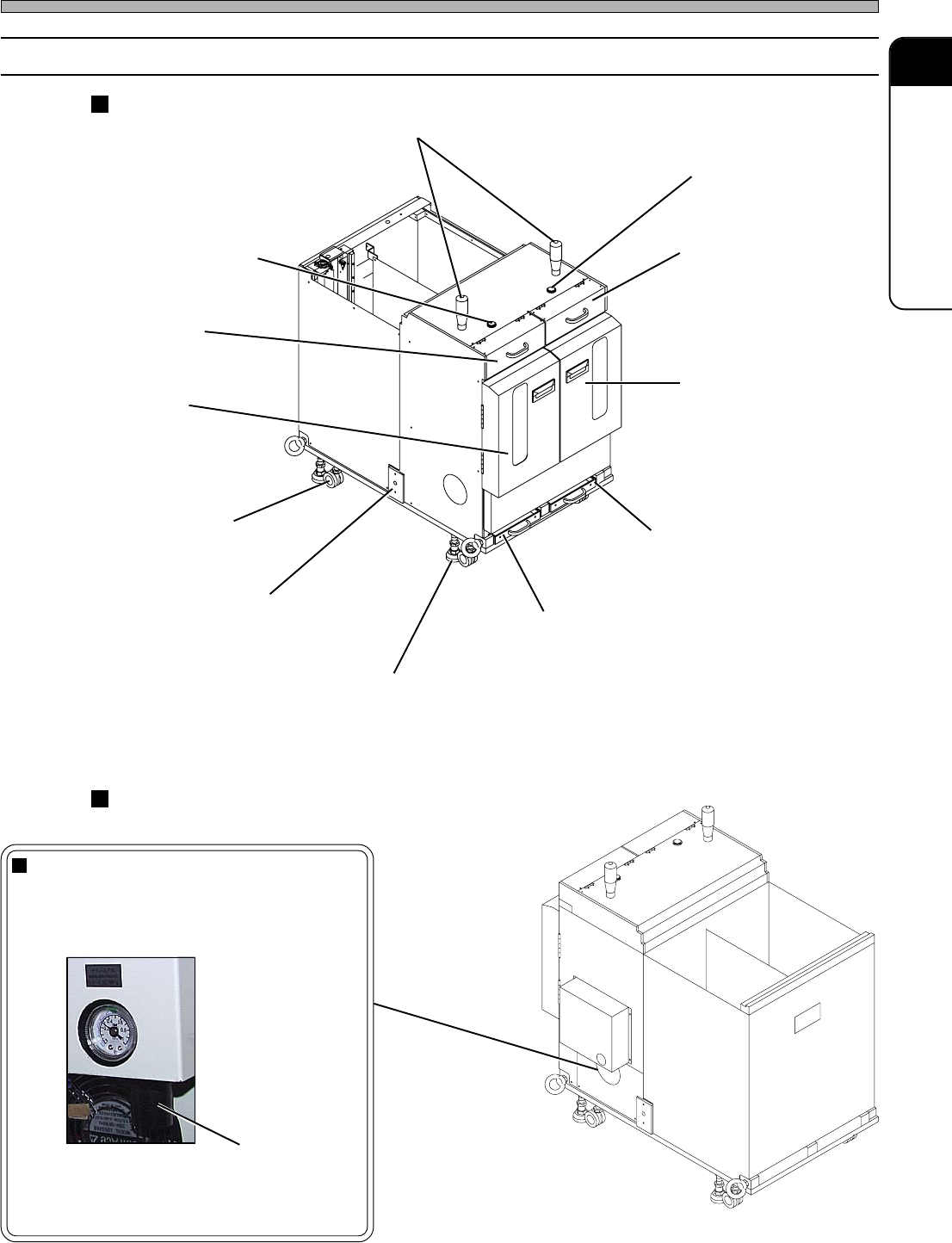

1-1-2 Tray Feeder (DT40T)
External View
4M4C-AA00
4M4C-AD00
4H4C-002P
Operating Unit
Regulator Knob
Adjusts the supply air pressure.
Regulator Knob
Handle for Carry
Supply Complete
Switch (B Side)
Chip Supply Area (B
Side)
Magazine Door (B Side)
Coupling Settlement Knob (Two in All)
Trash Box (B Side)
Supply Complete Switch (A Side)
Chip Supply Area (A Side)
Magazine Door (A Side)
Caster for Installation (Four in All)
Adjuster Bolt for Transport (Four in All)
Trash Box (A Side)
Names and Mechanism of Each Unit
4H4C-E-OMA01-A01-00
