Page 5-2
4H4C-E-OMA05-A01-00
5-1 Setting Trays
This section describes how to set the tray into the tray feeder.
• The tray can be set by the following steps.
1. Set the tray onto the pallet.
↓
2. Set the pallet into the tray feeder.
5-1-1 Setting Tray onto Pallet
Set the tray onto the tray pallet first.
• Tool: Philips Screwdriver
1. Fit the tray to the tray guides.
2. Loosen the two rail locking screws.
3. Put the tray between the tray clamp
and the tray guides by moving the
rail.
4. At this position, lock the rail by tight-
ening the rail locking screws.
5. Loosen the locking screw of the side
support.
6. Fit the side support to the tray side,
and tighten the locking screw.
7. Put the tray on the pallet with the tray
clamp released, and clamp it.
( Next Page)
Locking Screw
Side Support
Tray Clamp
Rail
Rail Locking Screw
Tray Guide
Tray
4H4C-010E
4H4C-011E
4H4C-009E
Page 5-3
5
SETTING PRODUCTION
MATERIALS
5
4H4C-E-OMA05-A01-00
Setting Trays
How to Clamp Tray
State a. Tray Clamped
In this state, turning the release lever to the direction of
arrow will release the clamp and the state will be the same
as the state b.
State b. Tray Released
In this state, turning the clamp lever to the direction of
1 a little will release the release lever.
And turning the clamp lever to the direction of 2 will
clamp the tray.
Release Lever
1
2
Clamp Lever
443C-143P
443C-144P
Page 5-4
4H4C-E-OMA05-A01-02

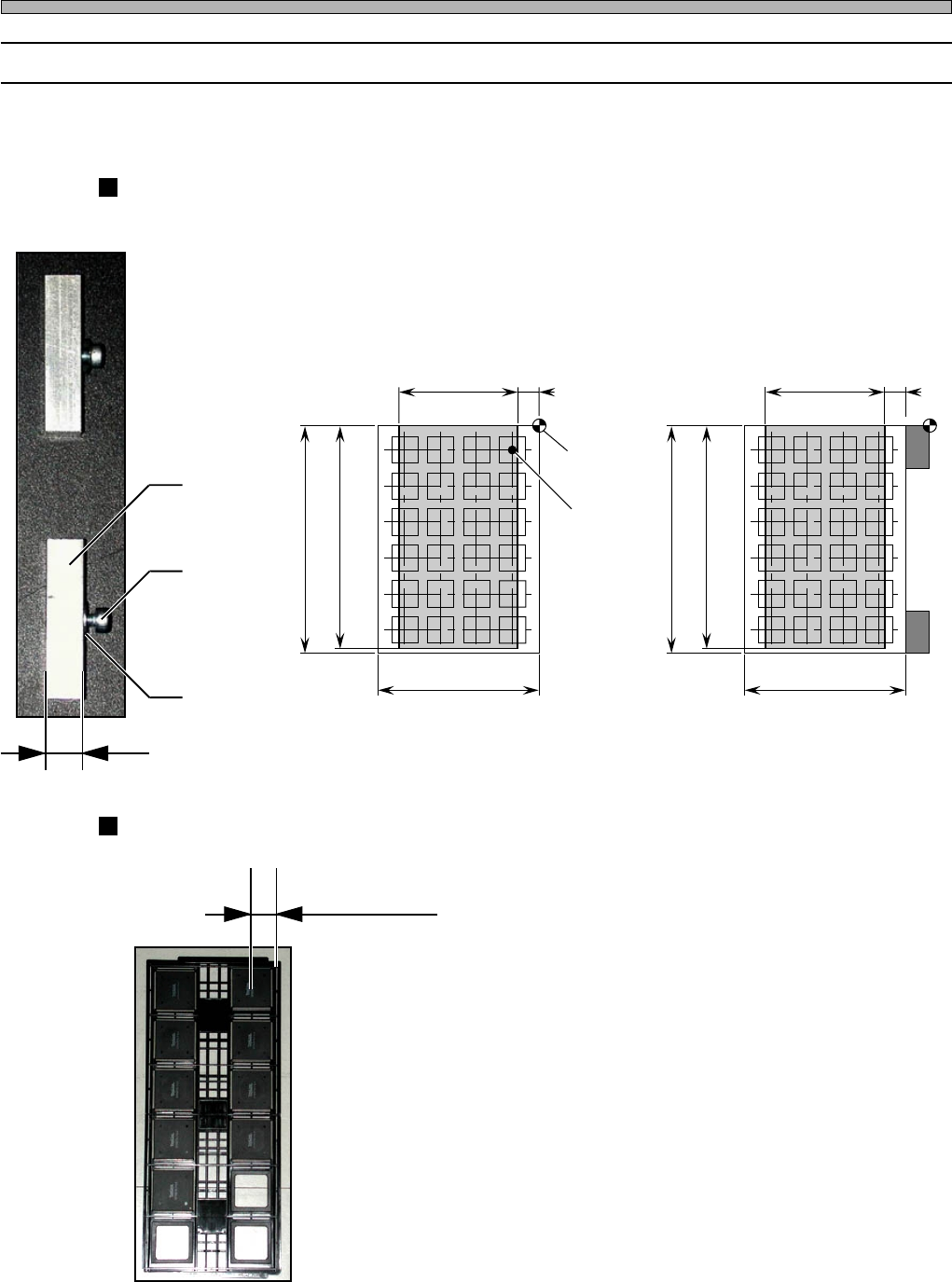

5-1-2 Offset Block for Pallet
The pick-up position is restricted because of the head movement range. Shifting the restriction of
the pick-up position can pick up chips.
Offset Block
Two offset blocks are used for a pallet.
Tray Conditions to Use the Offset Block
1. The tray size must satisfy the specifi-
cation condition above.
2. The first pick-up point must be 4 mm
to 12 mm.
∗ Use an ordinary pallet (without the offset block)
when the first pick-up point is 12 mm or over.
∗ When setting a different-shape tray, judge
whether the pallet is the one with the offset
block or an ordinary one, and then use it.
• Chips may not be picked up because the data
position is deviated.
Setting Trays
Block
Fixing Bolt
Washer
CM301 Standard Specification
“Pick-up Position
Condition Range”
Tray Max. 335 mm
Tray Setting Reference
(Tray Origin)
Pick-up Position
(Chip Center)
Specification with Offset Block Tray
First Pick-up Point
4H4C-027E 4H4C-028E
4H4C-035P
4H4C-036P
8 mm
Tray Max. 230 mm
325 mm
206 mm
12 mm
“Pick-up Position
Condition Range”
4 mm
“Pick-up Position
Condition Range”
Tray Max. 335 mm
Tray Max. 222 mm
325 mm
206 mm
“Pick-up Position
Condition Range”
