Adjustment Instr uctions MTC 2 4 Lifting axes 12/2007 Edition 4.2 Zero offset, refill position and transfer position 35 4.2.3 Checking the refill positions Check the zero of fset (see section 4.2.2 " Checking the …
4 Lifting axes Adjustment Instructions MTC 2
4.2 Zero offset, refill position and transfer position 12/2007 Edition
34
4.2.2 Checking the zero offset
Carry out the relevant preparatory measures (see section 4.2.1 "Preparatory measures").

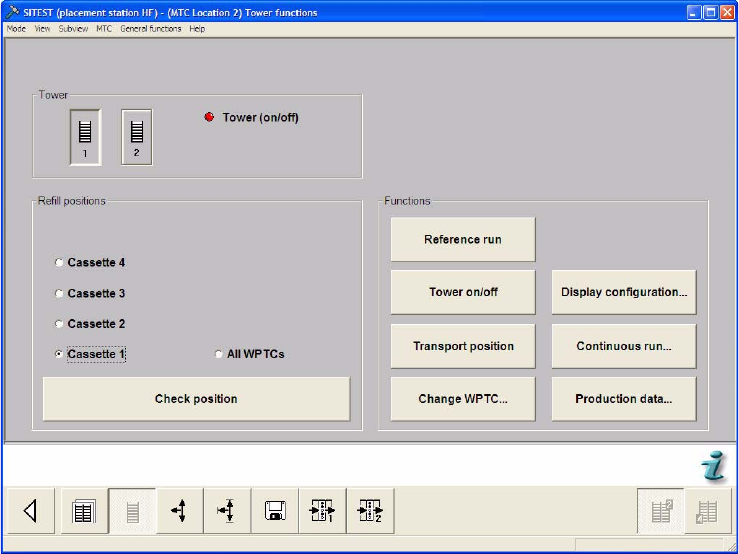

Select the Tower functions button from the menu bar at the bottom.
Select "Tower 1" and "Cassette 1".
Select "Check position".
Check that Cassette 1 can be moved in and out without any problems. If this is not possible,
the zero offset must be calibrated (see section 4.2.5 "Calibrating the zero offset").
Adjustment Instructions MTC 2 4 Lifting axes
12/2007 Edition 4.2 Zero offset, refill position and transfer position
35
4.2.3 Checking the refill positions
Check the zero offset (see section 4.2.2 "Checking the zero offset").
Select the Tower functions button from the menu bar at the bottom.
Select "Tower 1" and "Cassette 2".
Select "Check position".
Check that Cassette 2 can be moved in and out without any problems. If this is not possible,
this refill position must be calibrated (see section 4.2.6 "Calibrating the refill positions").
Repeat this check for the other cassettes.
4 Lifting axes Adjustment Instructions MTC 2
4.2 Zero offset, refill position and transfer position 12/2007 Edition
36
4.2.4 Checking the transfer positions
Carry out the relevant preparatory measures (see section 4.2.1 "Preparatory measures").

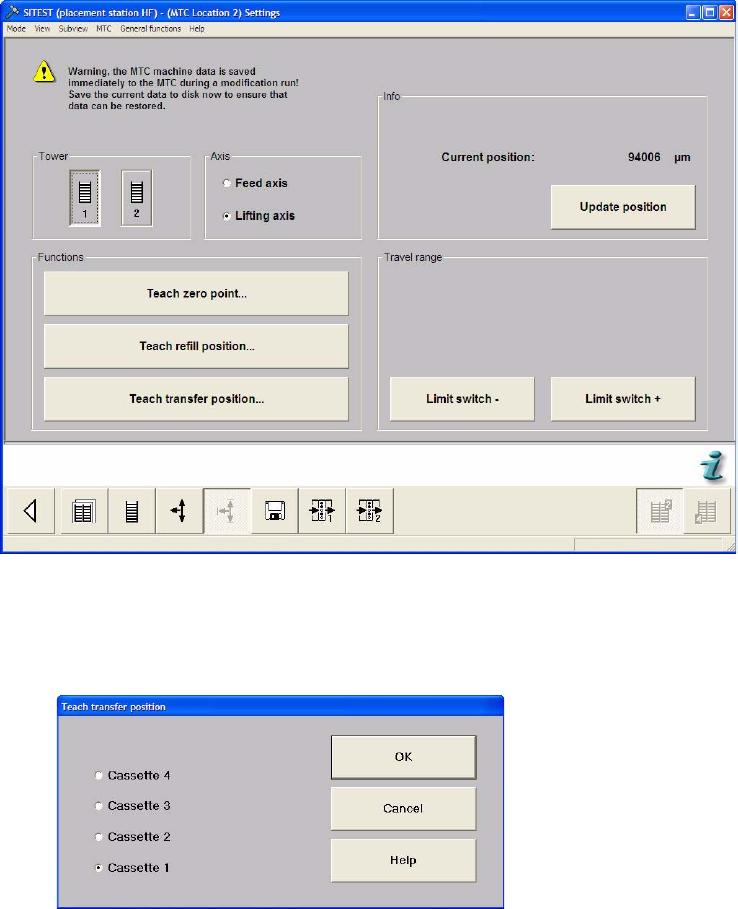

Select the Settings button from the menu bar at the bottom.
Select "Tower 1" and "Lifting axis".
Select "Teach transfer position...".
Select "Cassette 1" and press "OK".
