4 Lifting axes Adjustment Instructions MTC 2 4.3 End positions 12/2007 Edition 46 4.3.2 Checking and calibrating the end positions Carry out the relev ant preparat ory measur es (see section 4.3.1 " Preparatory m …
Adjustment Instructions MTC 2 4 Lifting axes
12/2007 Edition 4.3 End positions
45
4.3 End positions
NOTE
When the end positions are calibrated, the value determined is automatically saved.
4.3.1 Preparatory measures
NOTE
The zero offset must be checked before the end positions are checked and calibrated.
Check the zero offset of the lifting axis (see section 4.2.2 "Checking the zero offset").
4 Lifting axes Adjustment Instructions MTC 2
4.3 End positions 12/2007 Edition
46
4.3.2 Checking and calibrating the end positions
Carry out the relevant preparatory measures (see section 4.3.1 "Preparatory measures").

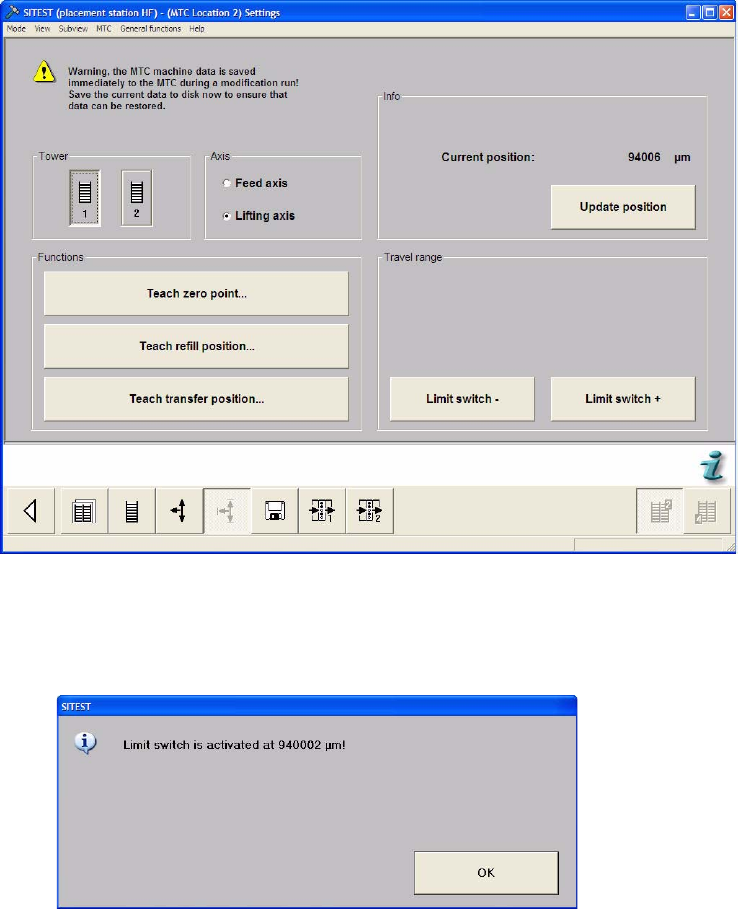

Select the Settings button from the menu bar at the bottom.
Select "Tower 1" and "Lifting axis".
Select "Limit switch –". The lifting axis moves until the top limit switch is reached.
Confirm your choice by clicking on "OK". The value displayed is saved.
Adjustment Instructions MTC 2 4 Lifting axes
12/2007 Edition 4.3 End positions
47

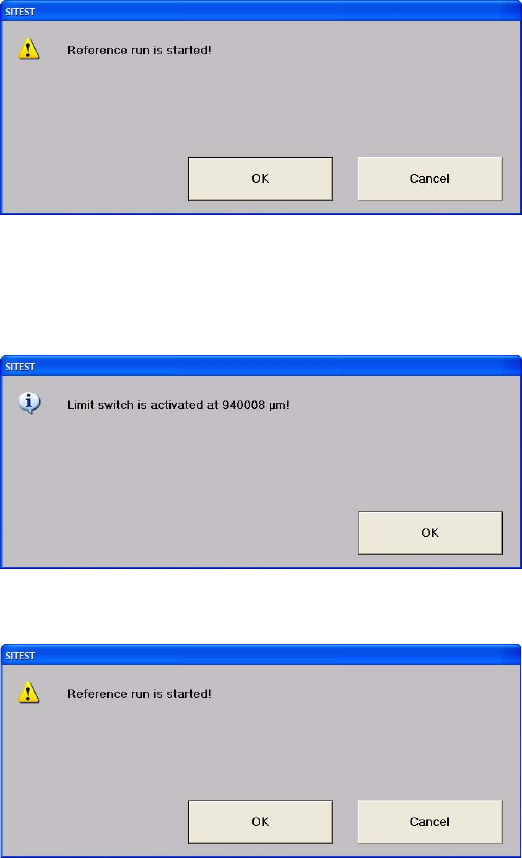

Confirm your choice by clicking on "OK".
Select "Limit switch +". The lifting axis moves until the bottom limit switch is reached.
Confirm your choice by clicking on "OK". The value displayed is saved.
Confirm your choice by clicking on "OK".
