4 Lifting axes Adjustment Instructions MTC 2 4.2 Zero offset, refill position and transfer position 12/2007 Edition 42 4.2.7 Calibrating the transfer positions  Carry out the relev ant preparat ory measur es (see sectio…

Adjustment Instructions MTC 2 4 Lifting axes

12/2007 Edition 4.2 Zero offset, refill position and transfer position

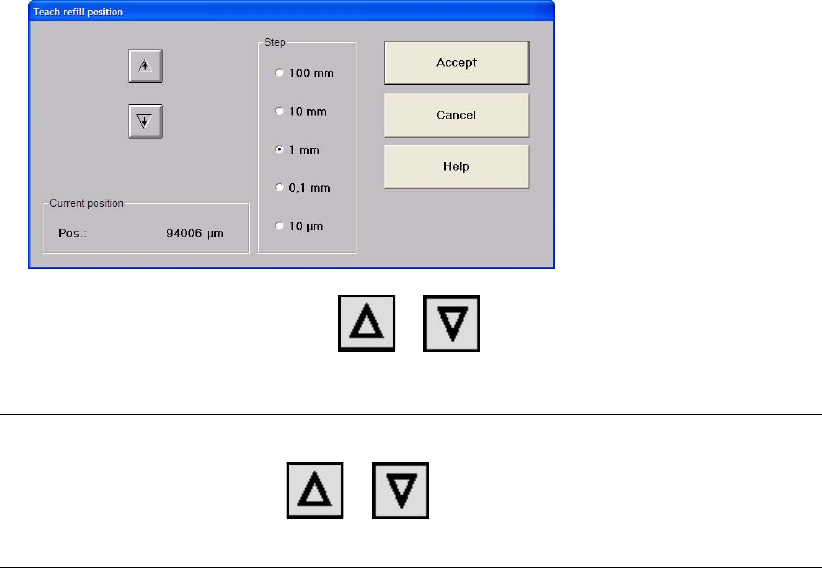

 Gradually move the lifting axis with or , until the bottom edge of cassette 2 is

at the level of the tabletop and the cassette can be moved in and out without any problems.

NOTE

Every time you press the button or , the lifting axis moves up or down one step

of the selected step size.

 Close the window with "Accept".

 Repeat this calibration procedure for the other cassettes.

4 Lifting axes Adjustment Instructions MTC 2

4.2 Zero offset, refill position and transfer position 12/2007 Edition

4.2.7 Calibrating the transfer positions

 Carry out the relevant preparatory measures (see section 4.2.1 "Preparatory measures").

 Select the Settings button from the menu bar at the bottom.

 Select "Tower 1" and "Lifting axis".

 Select "Teach transfer position...".

 Select "Cassette 1"and press "OK".

Adjustment Instructions MTC 2 4 Lifting axes

12/2007 Edition 4.2 Zero offset, refill position and transfer position

 Select "Open WPTC lock".

 Manually move the WTC completely out of the cassette onto the rail of the feed axis.

Now the WTC (1) must have contact at the lower third of the ramp of the feed axis (2) (see

figure below).

 Select "Close WPTC lock".

 Move the WPC back into the cassette so that the WTC interlock is locked.

 Click on "Cancel".

 Gradually move the lifting axis with or , until the bottom edge of the WTC is

at the level of the rails of the feed axis and you the transition between cassette and rail is

smooth.

NOTE

Every time you press the button or , the lifting axis moves up or down one step

of the selected step size.

 Insert the WTC back into the cassette until it engages in the WTC interlock.

 Close the window with "Accept".

 Repeat this calibration procedure for the other cassettes.
