Adjustment Instr uctions MTC 2 4 Lifting axes 12/2007 Edition 4.5 Cassette guide rails 53 4.5 Cassette guide rails 4.5.1 T ools and accessories – 1 set of hexagon sock et wrenches 4.5.2 Prep aratory measures NOTE An empt…
4 Lifting axes Adjustment Instructions MTC 2
4.4 Guide rails and stopper bars 12/2007 Edition
52
4.4.5 Checking and setting the stopper bars, bottom (see Fig. 4.4 - 2)
Move the doors fully down
Remove the side covers
Set the position of the guide rails until they are approx. 0.5 through 1mm away from the WTCs.
WARNING
The stopper bar must under no circumstances touch the WTCs!

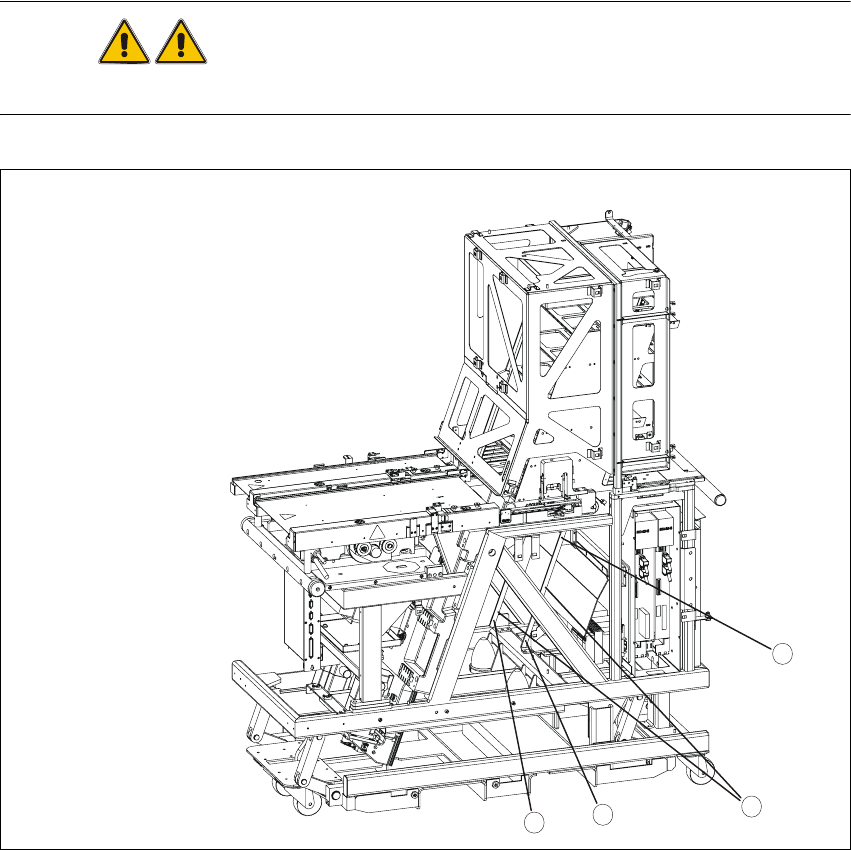

Fig. 4.4 - 2 Guide rails, bottom
Key
1. Guide rails
2. Attachment screws
1
2
2
2
Adjustment Instructions MTC 2 4 Lifting axes
12/2007 Edition 4.5 Cassette guide rails
53
4.5 Cassette guide rails
4.5.1 Tools and accessories
– 1 set of hexagon socket wrenches
4.5.2 Preparatory measures
NOTE
An empty cassette is needed to set the cassette guide rails.
Empty the MTC 2 completely (see the User Manual).
Prepare an empty cassette XL.
4 Lifting axes Adjustment Instructions MTC 2
4.5 Cassette guide rails 12/2007 Edition
54
4.5.3 Setting the cassette guide rails
4

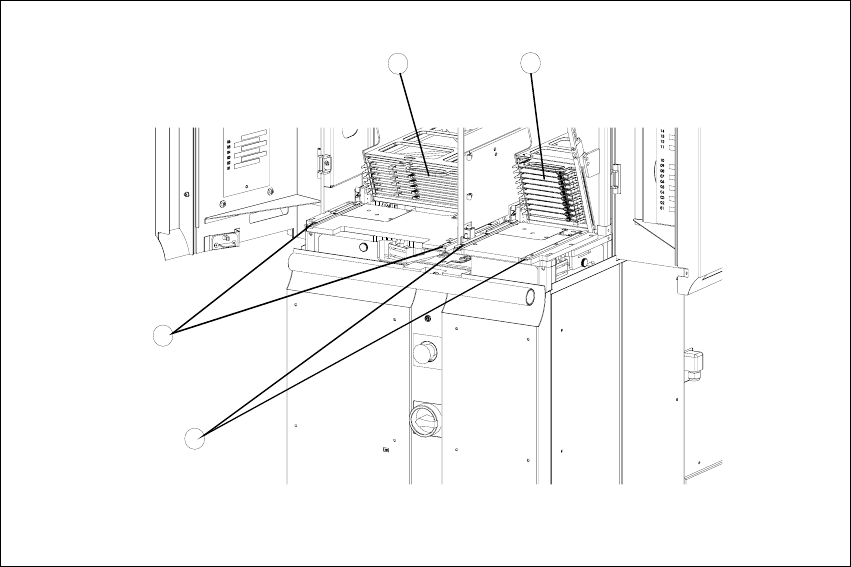

Fig. 4.5 - 1 Setting the cassette guide rails
Key
1. Cassette XL in the refill position for tower 1
2. Cassette in the refill position for tower 2
3. Cassette guide rails for tower 1
4. Cassette guide rails for tower 2
Move the lifting axis into the refill position for cassette 1 (see section 4.2.2 "Checking the zero
offset").
Loosen the securing screws on both cassette guide rails.
Tighten the securing screws of the inner cassette guide rail at the position in which the cassette
can still be inserted into the tower smoothly.
Position the second cassette guide rail by means of the cassette parallel to the first cassette,
so that the cassette can be moved easily but without any lateral play. Tighten the securing
screws here as well.
Check the setting of the other refill positions (see section 4.2.3 "Checking the refill positions").
If necessary, correct the position of the cassette guide rails which has been set.
4
3
1
2
