4.3.3 Moving to the end positions

 Select the Axes button from the menu bar at the bottom.

 Select "Tower 1" and "Lifting axis".

 Select "Positioning...".

 Select "Edit".

Adjustment Instructions MTC 2 4 Lifting axes

12/2007 Edition 4.3 End positions

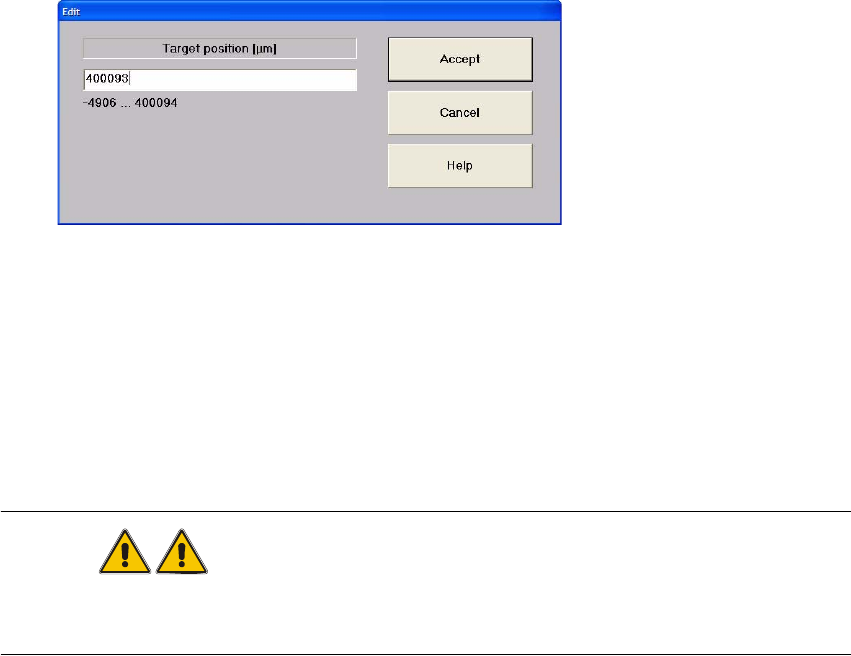

 Enter one of the displayed values in the input field: here

"400093" for the lowest possible position (max. position) or

"–490" for the highest possible position (min. position).

 Close the window with "Accept".

 Press "Start".

 The lifting axis moves to the relevant end position.

WARNING

In this position, the MTC 2 must not be lifted with the fork lift truck.

Move the MTC 2 into its transport position before transporting it.

4 Lifting axes Adjustment Instructions MTC 2

4.4 Guide rails and stopper bars 12/2007 Edition

4.4 Guide rails and stopper bars

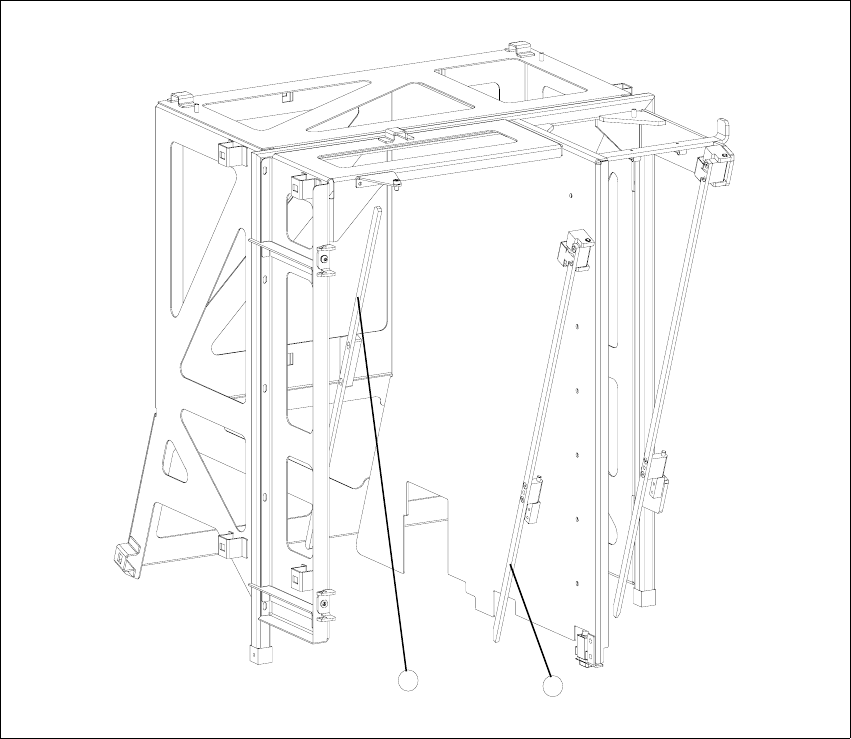

Fig. 4.4 - 1 Guide rails and stopper bars in the upper frame

Key

1. Guide rail (shown here for tower 1)

2. Stopper bar (shown here for tower 1)

4.4.1 Tools and accessories

– 1 set of hexagon socket wrenches
