About this manual

3. Page layout

The description below shows a typical page layout used in this manual.

2-32

ic oper

4.2 Finishing board production

To finish board production, follow these steps.



Stop machine operation.

The re are four methods for stopping the machin e.



1. Eme rgency stop button:

Press this button to trigger emergency stop. Do not use this button in normal operation .

2. [ST OP] bu tton (operation panel):

Pressing the [STOP] button stops the machine imme d ia te ly . To resume operation, pre ss t he [ STAR T]

but ton on the operation panel.

3. [C y cl e St op] button:

Pressing this button stops the machine operatio n j us t after component mounting on the curren t

boa rd has been completed.

4. [C o nv ey -out stop] button:

Use t hi s button when you want to finish production just after components have been mounted on

the b oard currently on the conveyor. All boards on the conve yor are carried out after component

mou nting, but new boards are not carried in from t he u pstream side.



CAUTION

Do not press the emergency stop button during operation except in case of emergency.



Reset the operation.

Press the [RESET] button on th e operation panel. The machine stops operati on immediately and returns

to th e board productio n standby status.



Press the [Off ] button on the screen.

[Off] button

2422 6-F 9-0 0

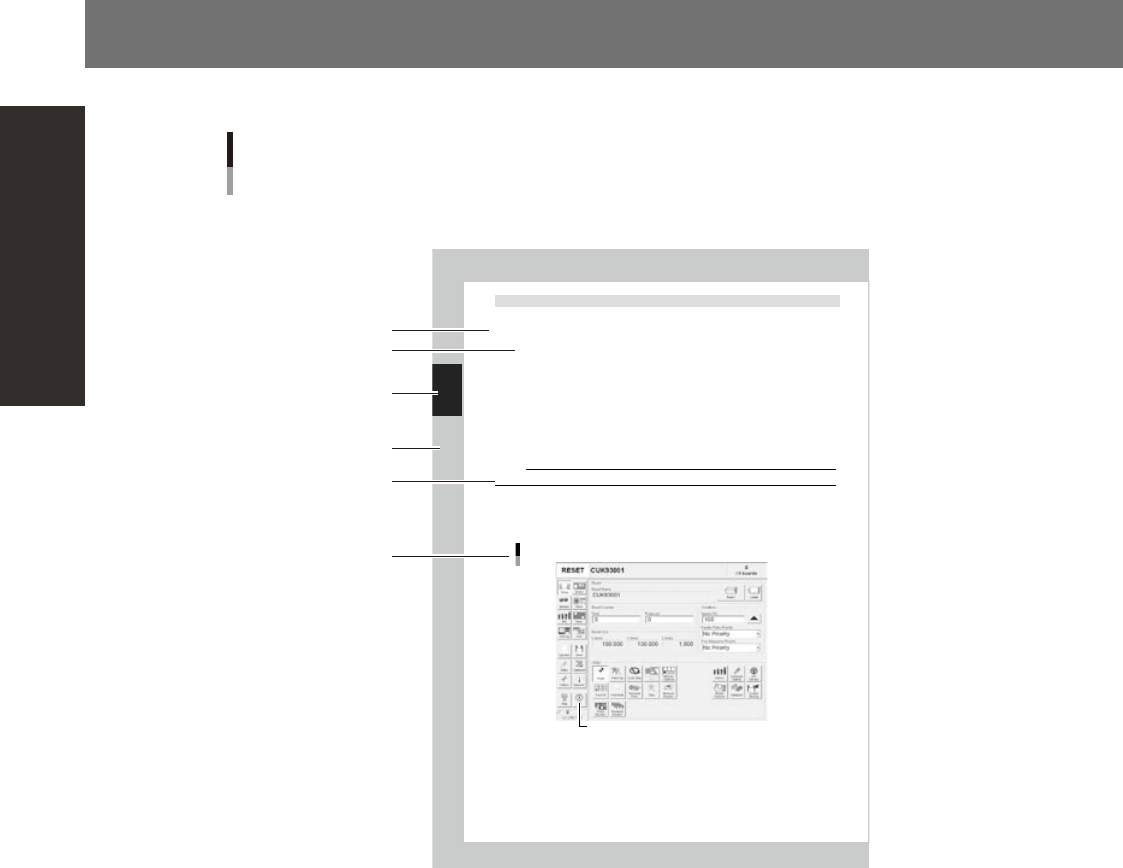

Typical page layout

Step

Chapter number

Chapter title

Substep or

description of step

Figure, picture

or table caption

Note, Caution

or Warning

23002-F9-00

Step

This describes the procedure for each operation.

Substep or description of step

This provides detailed information on the steps in the procedure.

Figure or table caption

This is the title of the figure or table and appears at the upper left.

Note, Caution or Warning

These are explained in detail in "Safety instructions".

Be sure to read these safety instructions before using YAMAHA surface mounters or related products.

Safety instructions

SF-E-0211-100

Safety instructions

Contents

1. Safety i

1.1 To ensure safety i

1.1.1 Defining safety i

1.1.2 Causes of injuries and accidents i

1.2 Using safety gear i

1.3 Awareness when operating machines i

1.3.1 Defining the operator and service personnel ii

1.3.2 Restricting machine operation with passwords ii

1.4 Cautions during machine operation ii

1.5 Cautions during power outages i

2. Safety message iii

2.1 Safety message and categories in this manual iii

2.2 Typical warning text found in manual i

2.2.1 Safety instruction iv

2.2.2 Operation and handling precautions v

2.2.3 Facilities and environmental condition vi

3. Warning labels and attachment positions vii

3.1 Warning labels vii

3.1.1 Handling of safety covers vii

3.1.2 Pinch or crush injury ix

3.1.3 Handling of each part xi

3.2 Caution labels xii

3.2.1 Influence on human body xii

3.2.2 Machine breakdown or damage xiv

3.3 Label positions xvii

Safety instructions

1. Safety

To ensure that the machine you purchased is used safely and correctly, always comply with the instructions

and rules in this manual regarding safety. However this manual cannot cover all items regarding safety in

detail. So it is extremely important that the operator or person handling the machine make correct decisions

regarding safety.

1.1 To ensure safety

To maintain the safety of the operator or person working with this machine, it is essential that it (including

external parts feeders) be installed correctly in compliance with the safety standards and conditions of that

country.

Complying with the safety regulations and laws of that country is the responsibility of the customer who

purchased this machine. The supervisor of this machine must take responsibility to ensure all measures have

been taken for machine safety.

1.1.1 Defining safety

1. Safety has priority over all other operations.

2. Safety is more important than any other task.

3. Safety is the foundation for work efficiency.

4. Safety begins with maintaining (keeping it neat and orderly) the work environment.

1.1.2 Causes of injuries and accidents

Most accidents are not something that occurs but something that are caused. So it is important to make an

effort NOT to cause accidents.

Hazardous actions

• Ignoring causes of accidents

• Working or operating equipment in cramped locations

• Working in locations or positions where safety cannot be ensured

• Unsafe machine operation and using equipment whose safety cannot be ensured

• Working or operating equipment at speeds where safety cannot be ensured

• Working or operating machines with safety equipment removed

• Performing work or tasks on top of a machine currently in operation

• Playing around or goofing off during work

• Performing maintenance or inspections without wearing safety gear

1.2 Using safety gear

Always wear safety gear when operating or servicing equipment.

Helmet : Use during maintenance work

Safety glasses or goggles : Use around light harmful to eyes and when applying lubricant, etc.

Respiratory gear : Use when handling organic solvents

Safety gloves : Use when applying lubricant, etc.

Precautions when applying lubricant (grease)

WARNING

• INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT GETS IN THE EYES. BEFORE HANDLING THE GREASE OR

LUBRICANT, WEAR SAFETY GOGGLES TO ENSURE IT WILL NOT COME IN CONTACT WITH THE EYES.

• INFLAMMATION MAY OCCUR IF THE GREASE OR LUBRICANT COMES INTO CONTACT WITH SKIN. BE SURE TO WEAR

PROTECTIVE GLOVES TO PREVENT CONTACT WITH SKIN.

• DO NOT TAKE ORALLY OR EAT THE GREASE OR LUBRICANT. EATING WILL CAUSE DIARRHEA AND VOMITING.
