1-14
1
Part names and functions
6. Machine layout
This machine has the following layout and configuration.
Machine layout
Common to right-to-left and left-to-right board flow
Placement table D
Placement table B
Head unit B
Head unit D
Head unit C
Head unit A
Placement table C Placement table A
Placement stage B
Right transport
stage
Placement stage APlacement stage C
Placement stage D
Left transport
stage
23114-M3-00
Camera layout
Common to right-to-left and left-to-right board flow
Side-view camera B
Side-view camera D
Side-view camera C
Side-view camera A
Multi-view camera D
Multi-view camera C Multi-view camera A
AC
BD
Multi-view camera B
Fiducial camera B1
(for mark recognition)
Fiducial camera B2
(for mark recognition)
Fiducial camera D1
(for mark recognition)
Fiducial camera D2
(for mark recognition)
Fiducial camera C1
(for mark recognition)
Fiducial camera C2
(for mark recognition)
Fiducial camera A1
(for mark recognition)
Fiducial camera A2
(for mark recognition)
23115-M3-00
1-15
1
Part names and functions
A
BCD
Conveyor sensor positions
Right-to-left board flow
1
3
Reference (fixed) conveyor
Left conveyor
Right conveyor
Board
467910
11
1213
1418 17
1516
19
58
Standby stopperExit stopper
2
23116-M3-00
Unit No. 1 2 3
Right
conveyor
Use Entrance detection
Standby position
detection
Hazard detection
Address N0100612 N0100613 N0100614
Name IN_CONV_CONV1_ENT IN_CONV_CONV1_RCV IN_CONV_CONV1_END
Unit No. 4 5 6
Stage A Use Hazard detection Board detection Hazard detection
Address N0100691 N0100692 N0100693
Name IN_CONV_CONV2_ENT IN_CONV_CONV2_RCV IN_CONV_CONV2_END
Unit No. 7 8 9
Stage B Use Hazard detection Board detection Hazard detection
Address N01006A4 N01006A5 N01006A6
Name IN_CONV_CONV3_ENT IN_CONV_CONV3_RCV IN_CONV_CONV3_END
Unit No. 10 11 12
Stage C Use Hazard detection Board detection Hazard detection
Address N0100811 N0100812 N0100813
Name IN_CONV_CONV4_ENT IN_CONV_CONV4_RCV IN_CONV_CONV4_END
Unit No. 13 14 15
Stage D Use Hazard detection Board detection Hazard detection
Address N0100824 N0100825 N0100826
Name IN_CONV_CONV5_ENT IN_CONV_CONV5_RCV IN_CONV_CONV5_END
Unit No. 16 17 18
Left
conveyor
Use Hazard detection
Intermediate position
detection
Exit detection
Address N0100792 N0100795 N0100793
Name IN_CONV_CONV6_ENT IN_CONV_CONV6_MID IN_CONV_CONV6_RCV
No. 19
Use Hazard detection
Address N0100794
Name IN_CONV_CONV6_END
c
CAUTION
Conveyor's board sensors may fail to detect a production board if it has a slit or cutout.
1-16
1
Part names and functions
A
BCD

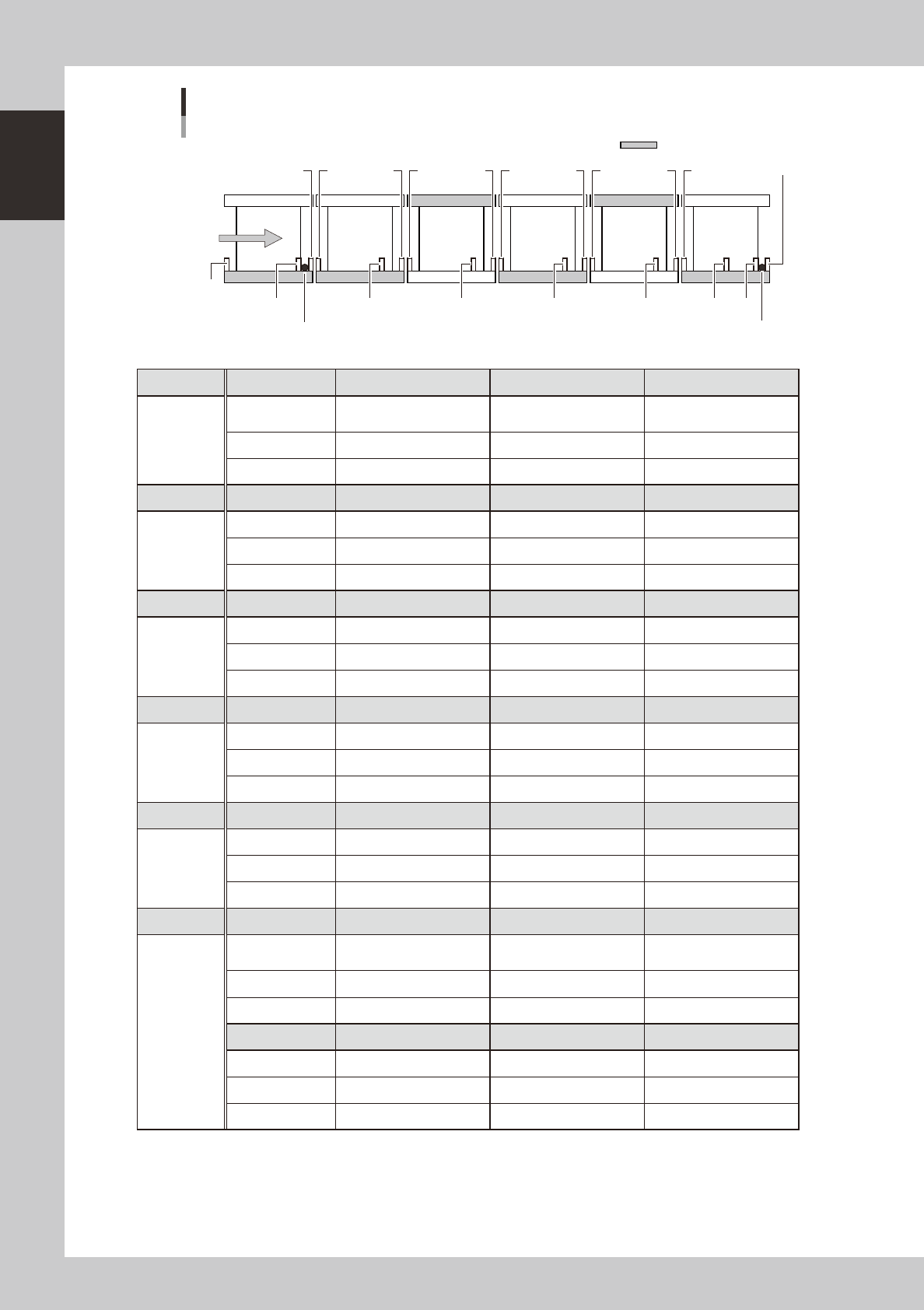

Conveyor sensor positions
Left-to-right board flow
19
16
Reference (fixed) conveyor
Left conveyor
Right conveyor
Board
151312109
8
76
52
43
1
1411
Exit stopper
Standby stopper
17
18
23117-M3-00
Unit No. 1 2 3
Left
conveyor
Use Entrance detection
Standby position
detection
Hazard detection
Address N0100792 N0100793 N0100794
Name IN_CONV_CONV6_ENT IN_CONV_CONV6_RCV IN_CONV_CONV6_END
Unit No. 4 5 6
Stage D Use Hazard detection Board detection Hazard detection
Address N0100824 N0100825 N0100826
Name IN_CONV_CONV5_ENT IN_CONV_CONV5_RCV IN_CONV_CONV5_END
Unit No. 7 8 9
Stage C Use Hazard detection Board detection Hazard detection
Address N0100811 N0100812 N0100813
Name IN_CONV_CONV4_ENT IN_CONV_CONV4_RCV IN_CONV_CONV4_END
Unit No. 10 11 12
Stage B Use Hazard detection Board detection Hazard detection
Address N01006A4 N01006A5 N01006A6
Name IN_CONV_CONV3_ENT IN_CONV_CONV3_RCV IN_CONV_CONV3_END
Unit No. 13 14 15
Stage A Use Hazard detection Board detection Hazard detection
Address N0100691 N0100692 N0100693
Name IN_CONV_CONV2_ENT IN_CONV_CONV2_RCV IN_CONV_CONV2_END
Unit No. 16 17 18
Right
conveyor
Use Hazard detection
Intermediate position
detection
Exit detection
Address N0100612 N0100615 N0100613
Name IN_CONV_CONV1_ENT IN_CONV_CONV1_RCV IN_CONV_CONV1_RCV
No. 16
Use Hazard detection
Address N0100614
Name IN_CONV_CONV1_END
