3-6
3
Starting and ending production
2. Ending production and turning power off
Use the following procedure to end board production.
1
Stop machine operation.
There are four methods for stopping the machine operation.
e
1. Emergency stop button:
Press this button to trigger emergency stop. Do not use this button in normal operation.
2. [STOP] button (operation panel):
Pressing the [STOP] button stops the machine operation immediately. To resume operation, press the
[START] button on the operation panel.
3. [Cycle Stop] button (operation screen):
Pressing this button stops the machine operation just after components are mounted on the current
board.
4. [Convey-out stop] button (operation screen):
Use this button when you want to end production after completing component mounting on the
boards currently on the conveyor. All boards on the conveyor are carried out after component
mounting, but new boards are not carried in from the upstream side.
c
CAUTION
Do not press the emergency stop button during operation except in case of emergency.
2
Reset the operation.
Press the [RESET] button on the operation panel. The machine then returns to the board production
standby status.
3

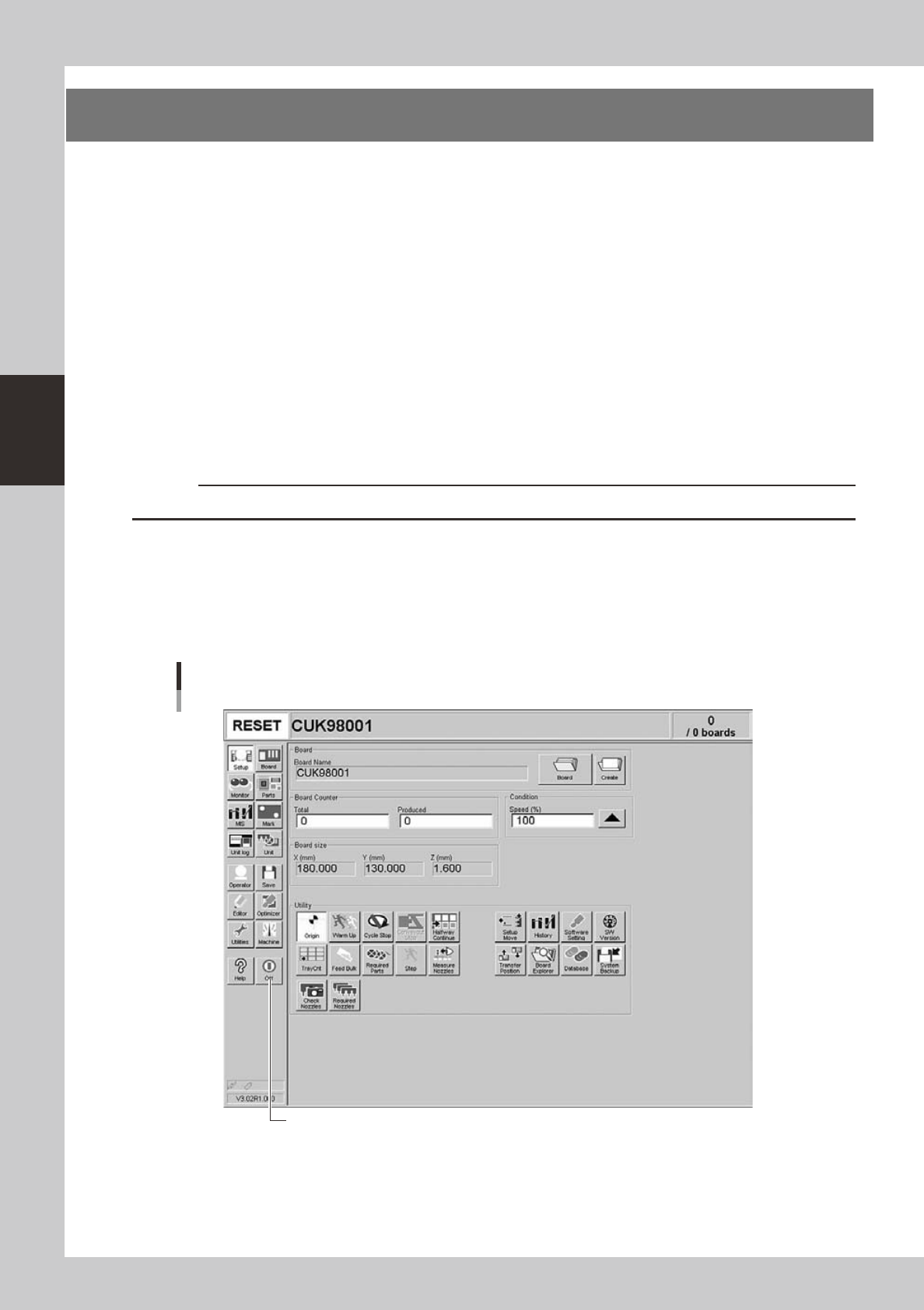

Press the [Off] button.
Press the [Off] button in the left button area of the screen.
[Off] button
[Off] button
24306-M3-00
3-7
3
Starting and ending production
4
Press [Yes] when a conirmation dialog box appears.
Press [Yes].
Shutdown confirmation dialog box
24307-M3-00
5
Move the machine to the origin position.
When the move-to-origin dialog box appears, press [OK].
6
Press the [OK] button when the shutdown confirmation dialog box appears.
e
7
Press the emergency stop button.
When the emergency stop dialog box appears, press the emergency stop button and then press the
[OK] button.
8
Turn off the power switch on the machine.
When the message "Ready to shut down" appears, press the [OK] button and then turn off the power
switch on the lower right of the machine.
c
CAUTION
If you turn off the power without following the correct sequence, the data and machine might be damaged.
3-8
3
Starting and ending production
3. Modular error stop function
Even when component mounting on a placement table has stopped due to an error during automatic
operation, this function allows component mounting to continue on other placement tables without stoppage.
A buzzer, signal light, and error indicator light (option) inform the operator when module errors occur.
An error dialog also appears on the operating screen, and the status area alternately displays "AUTO" and
"Module Error" once a second.
n
Signal light
Status Description
Buzzer
Signal light
Error indicator light
(option)
Green Red Yellow
Module error
Error occurred on a table
that requires operator
intervention.
ON ---- ---- Flashing
Front and rear
indicators flash.
Operation continues on other
tables.
---- ON ---- ----
Module error reset All tables are in operation. ---- ON ---- ---- ----
All tables stop
More time is needed for
recovery from module
error.
---- ---- ---- ON
Front and rear yellow
indicators light up.
Operation restart
Module error recovery is
complete.
---- ON ---- ---- ----
Screen display during module error stop
Display switches once per second.
Error dialog appears.
24308-M3-00
