2-19
2
Basic operation
3. Starting and stopping the machine
This section explains routine procedures for starting and turning off the machine according to the flow charts
beow.
Return axes to origins
Turn on power switch
Check before operation
Preform return-to-origin
Press [Off] button on screen
Press emergency stop button
Turn off power switch
Specify operator
Production (Running)
Starting and turning off machine
Program is loaded.
Return-to-origin dialog box appears.
Move-to-origin dialog box appears.
Shut down dialog box appears.
Setup screen appears.
Finish board production.
23201-M3-00
2-20
2
Basic operation
3.1 Pre-operation check
e
Check the following points before turning on the power.
w
WARNING
ALWAYS BE SURE TO PRESS THE EMERGENCY STOP BUTTON BEFORE MAKING CHECKS.
n
Pre-operation checklist
Check item Checkpoint
Air
Check that the upper display on the air pressure gauge, which is at the front lower left of
the machine, shows 0.55Mpa.
Power supply
Check that the specified power is connected to the power supply box located behind the
front lower right panel of the machine.
Safety cover Check that the covers are closed.
Feeder Check that feeders are securely attached to the feeder plate and are not tilted.
Check that no chips or debris adhere to the feeders.
Conveyor Check that no chips or debris are on the conveyor.
Check that the conveyor units do not interfere with each other, such as push-up pins
under the conveyor rails.
Head Check that each nozzle is correctly installed to the head.
Nozzle
Check that the nozzle tips are not nicked, solder does not adhere to the nozzle tips, and
nozzle spring-action is smooth.
Feeder exchange
carriage (option)
Check that no chips or debris are on the feeder plate. Also check that the parts feeders
are securely attached to the feeder plate and no chips and debris adheres to them.
w
WARNING
THE SIGNAL LIGHT (SIGNAL TOWER) IS AN IMPORTANT DEVICE THAT SHOWS THE OPERATING STATUS OF THE MACHINE. THE
GREEN LAMP IS ON DURING OPERATION. THE YELLOW LAMP LIGHTS UP WHEN AN ERROR OR INTERLOCK OCCURS, AND
THE RED LAMP LIGHTS UP WHEN EMERGENCY STOP IS TRIGGERED. NEVER PLACE ANY PART OF THE BODY IN THE HEAD
MOVEMENT RANGE WHILE THE GREEN LAMP IS ON.
2-21
2
Basic operation

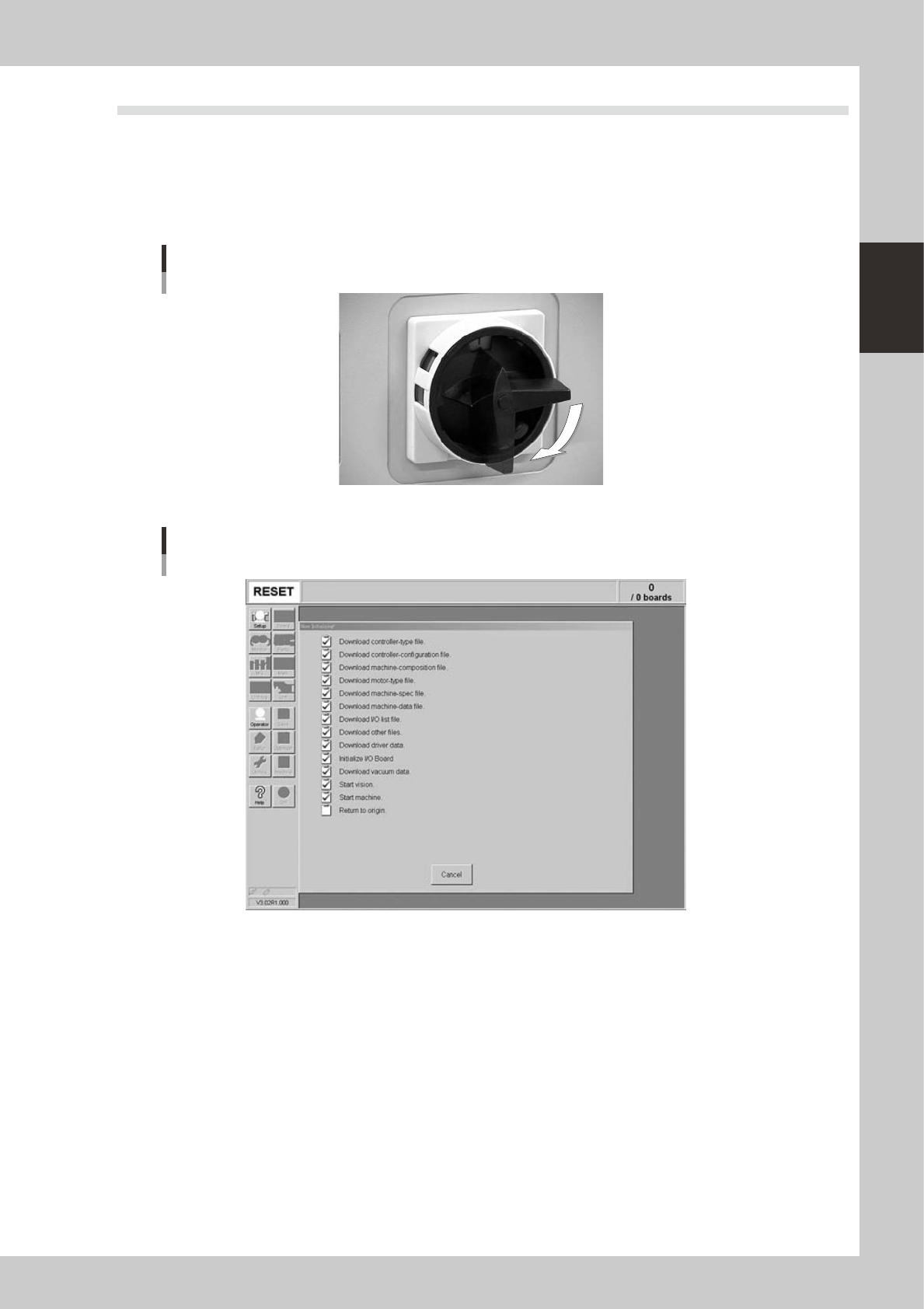

3.2 Starting the machine
Proceed as follows to start the machine.
1
Turn the main power ON.
Turn on the main power switch at the front lower right of the machine, by turning it to the right. After the
system has started, the Initialization screen appears and the program necessary for machine operation
is loaded.
ON
OFF
Main Switch
23203-M3-00
Initialization screen
24211-M3-00
2
Perform return-to-origin.
The return-to-origin dialog box appears. Follow the instructions on the screen.
