1-12
1
Part names and functions
n
Mounter side

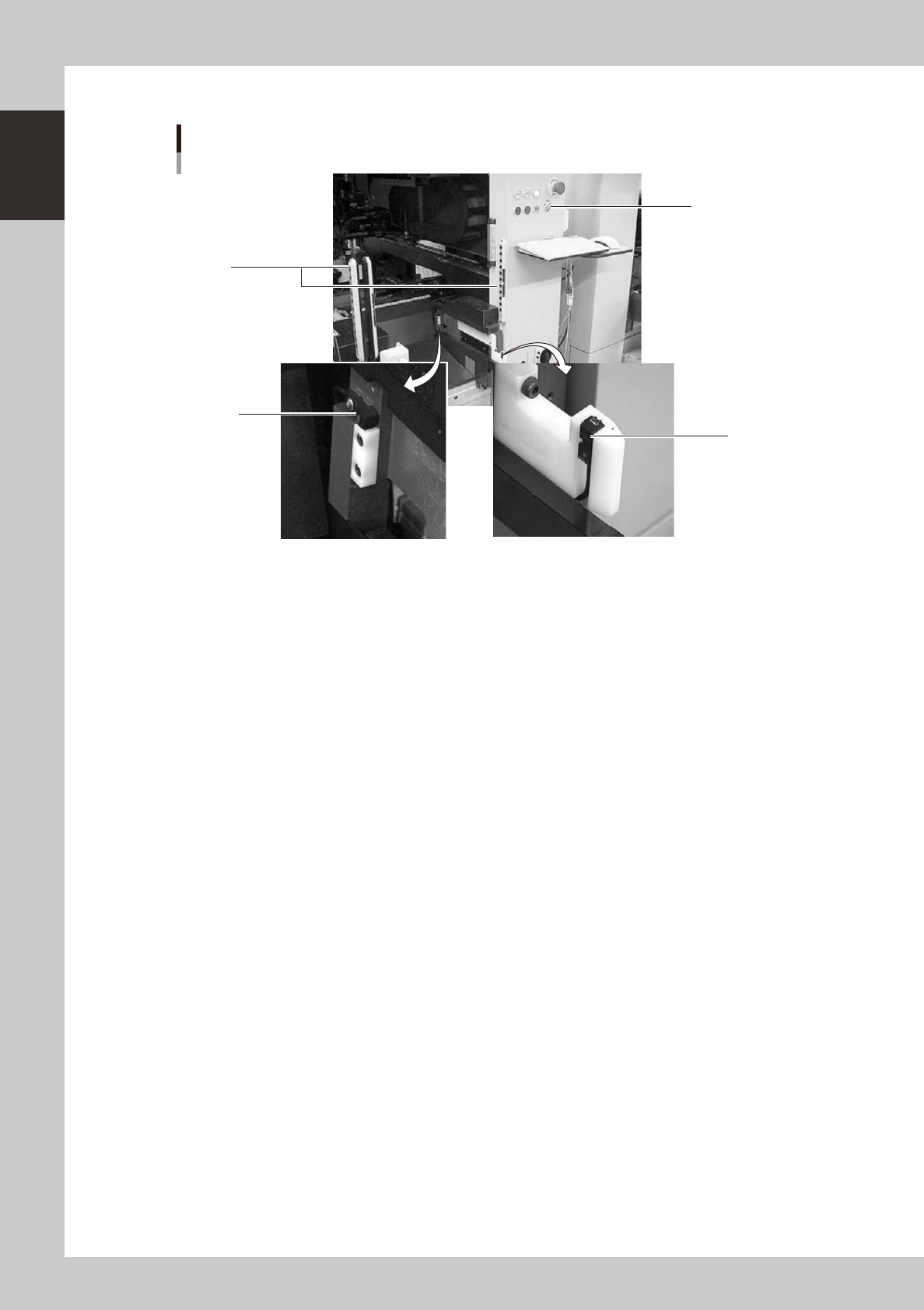

Switch and sensors on the mounter
3
1
2
4
23112-M3-00
1 Clamp ON/OFF switch
After installing the feeder exchange carriage into the mounter, turn this switch to the left (ON) to raise the feeder plate of
the feeder exchange carriage and automatically clamp it into the position. To unclamp, turn this switch to the right (OFF).
2 Forward end sensor
When the feeder exchange carriage is fully installed into the mounter, the green LED on this sensor lights up.
3 Area sensor for non-stop operation (option)
This safety area sensor is attached to mounters with a non-stop function. When the feeder exchange carriage is installed
into the mounter, the entrance sensors located at the front (or rear) of the mounter detect the feeder exchange carriage
and turn off this area sensor function.
4 Entrance sensor for non-stop feeder exchange carriage (option)
This sensor is attached to the front (or rear) of mounters with a non-stop function. When the feeder exchange carriage is
installed into the mounter, this sensor detects the feeder exchange carriage and turns off the area sensor function to
permit removing and installing the feeder exchange carriage even during automatic operation.
1-13
1
Part names and functions
5.
Conveyor unit and component recognition system
The conveyor unit used to clamp a board in mounting position is described below.
3
1
Conveyor units
2
4
5
23113-M3-00
1. Main stopper
When a board is carried in on the conveyor, the main stopper halts travel of the board in the component mounting
position. (Double stopper is optional.)
2. Push-up plate
The push-up plate clamps the board up against the conveyor rails, with the supporter pins attached by magnet on the
push-up plate.
3. Push-up pins
These pins are arranged on the push-up plate and secure the board by pushing it up from the bottom.
4. Board flap
This holds the edge of the board from above when the board is clamped, and can be moved outward or inward during
conveyor unit setup.
5. Clamp lever
Use this lever to lock or unlock the board flap.
1-14
1
Part names and functions
6. Machine layout
This machine has the following layout and configuration.
Machine layout
Common to right-to-left and left-to-right board flow
Placement table D
Placement table B
Head unit B
Head unit D
Head unit C
Head unit A
Placement table C Placement table A
Placement stage B
Right transport
stage
Placement stage APlacement stage C
Placement stage D
Left transport
stage
23114-M3-00
Camera layout
Common to right-to-left and left-to-right board flow
Side-view camera B
Side-view camera D
Side-view camera C
Side-view camera A
Multi-view camera D
Multi-view camera C Multi-view camera A
AC
BD
Multi-view camera B
Fiducial camera B1
(for mark recognition)
Fiducial camera B2
(for mark recognition)
Fiducial camera D1
(for mark recognition)
Fiducial camera D2
(for mark recognition)
Fiducial camera C1
(for mark recognition)
Fiducial camera C2
(for mark recognition)
Fiducial camera A1
(for mark recognition)
Fiducial camera A2
(for mark recognition)
23115-M3-00
