2-16 2 Basic operation n M a n u a l h e a d o p e r a t i o n [Unit] – [Head] screen 1 2 3 4 5 24 2 0 8 - M 3 -0 0 B u t t o n n a m e F u n c t i o n 1 Vac u u m T u r n s t h e v a c u u m o f e a c h h e a d o n o r …
2-15
2
Basic operation
4. [Left] button, [Right] button
Moves the conveyor motor in the left or right direction at high speeds.
5. [Low Left] button, [Low Right] button
Moves the conveyor motor in the left or right direction at low speeds.
6. [Push Up] buttons (A to D)
Raises or lowers each push-up plate. The board edge clamp also moves up or down simultaneously.
7. [Exit Stopper] button, [Entrance Stopper] button
Raises or lowers the exit stopper or entrance stopper.
8. [Transfer 1 Claws 1 to 3], [Transfer 2 Claws 1 to 3] buttons
Use these buttons to lower or raise the T-axis transfer claws.
[Transfer 1 Claw 1], [Transfer 2 Claw 1]
Lowers and raises the transfer claws closest to the board exit side.
[Transfer 1 Claw 2], [Transfer 2 Claw 2]
Lowers and raises the transfer claws in the second to fourth positions from the board entrance side.
[Transfer 1 Claw 3], [Transfer 2 Claw 3]
Lowers and raises the transfer claws closest to the board entrance side.
[Transfer 1 Claws 1 to 3], [Transfer 2 Claws 1 to 3] buttons
T2
T1
T2
T1
N Right-to-left board flow
N Left-to-right board flow
Board
Board
23201-M3-00
2-16
2
Basic operation
n
Manual head operation

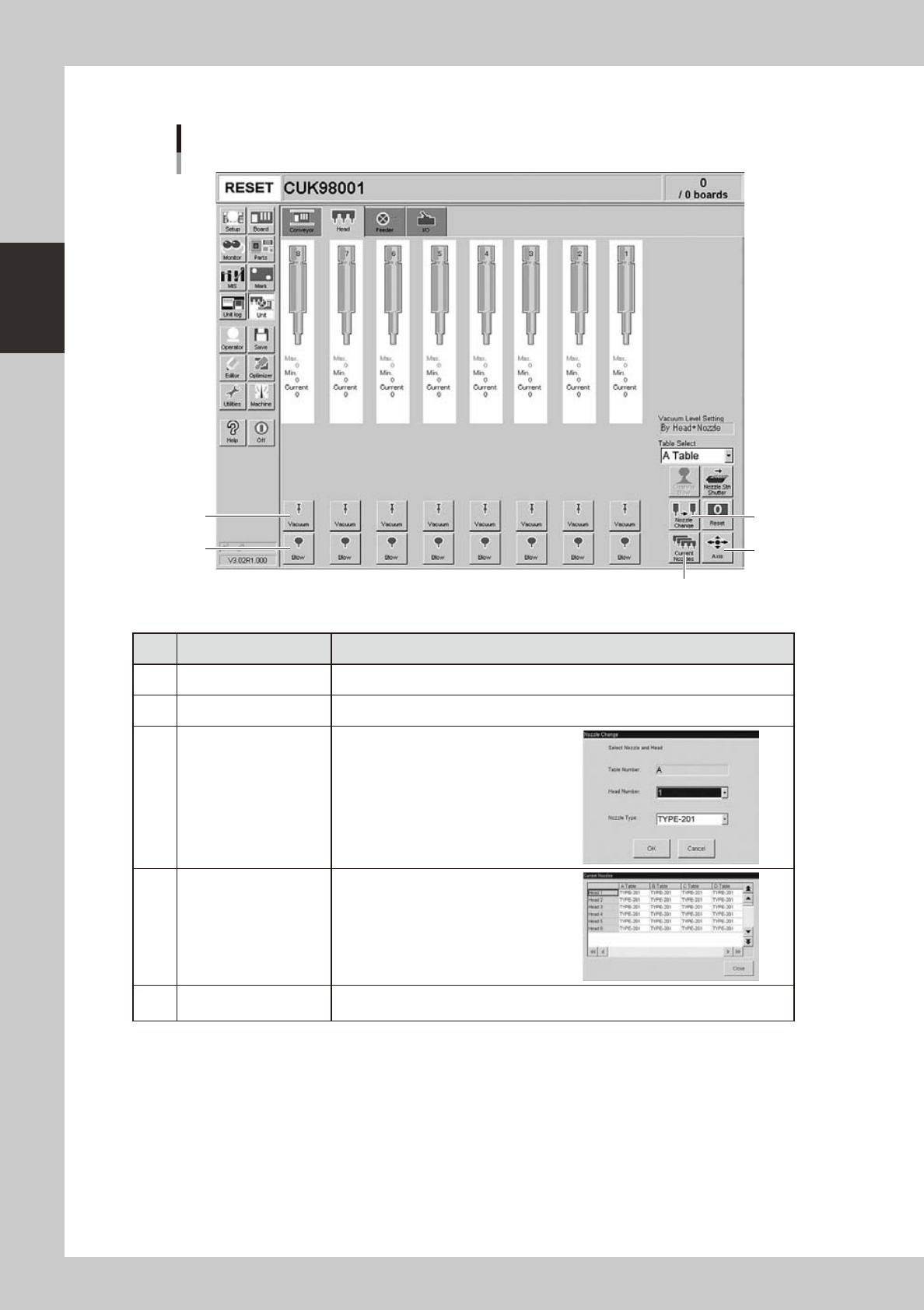

[Unit] – [Head] screen
1
2
3
4
5
24208-M3-00
Button name Function
1 Vacuum Turns the vacuum of each head on or off.
2 Blow Turns the air blow in each head on or off.
3 Nozzle Change
Opens the "Nozzle Change" dialog box.
Specify the head and nozzle type to
perform nozzle change.
4 Current Nozzles
Shows a list of nozzle types currently
attached to each head.
5 Axis
Opens the "Move Axis" screen. This is the same as the [Axis] button on the [Unit]-
[Conveyor] screen.
2-17
2
Basic operation
n
Manual feeder operation
[Unit] – [Feeder] screen
1
2
3 4
24209-M3-00
Button name Function
1 Left/right arrows Scrolls through the drive valve number display.
2 Up/down arrows
Switches the drive valve number display between the front and rear
sides.
3 Drive valve Turns the feeder shutter drive valve on or off.
4 Reset Turns off all drive valves at a time.
