9. Blow station
One blow station is installed in each stage. The blow station blows high-pressure air internally through the
nozzles and shafts to blow away dust and grit and clean the nozzles.

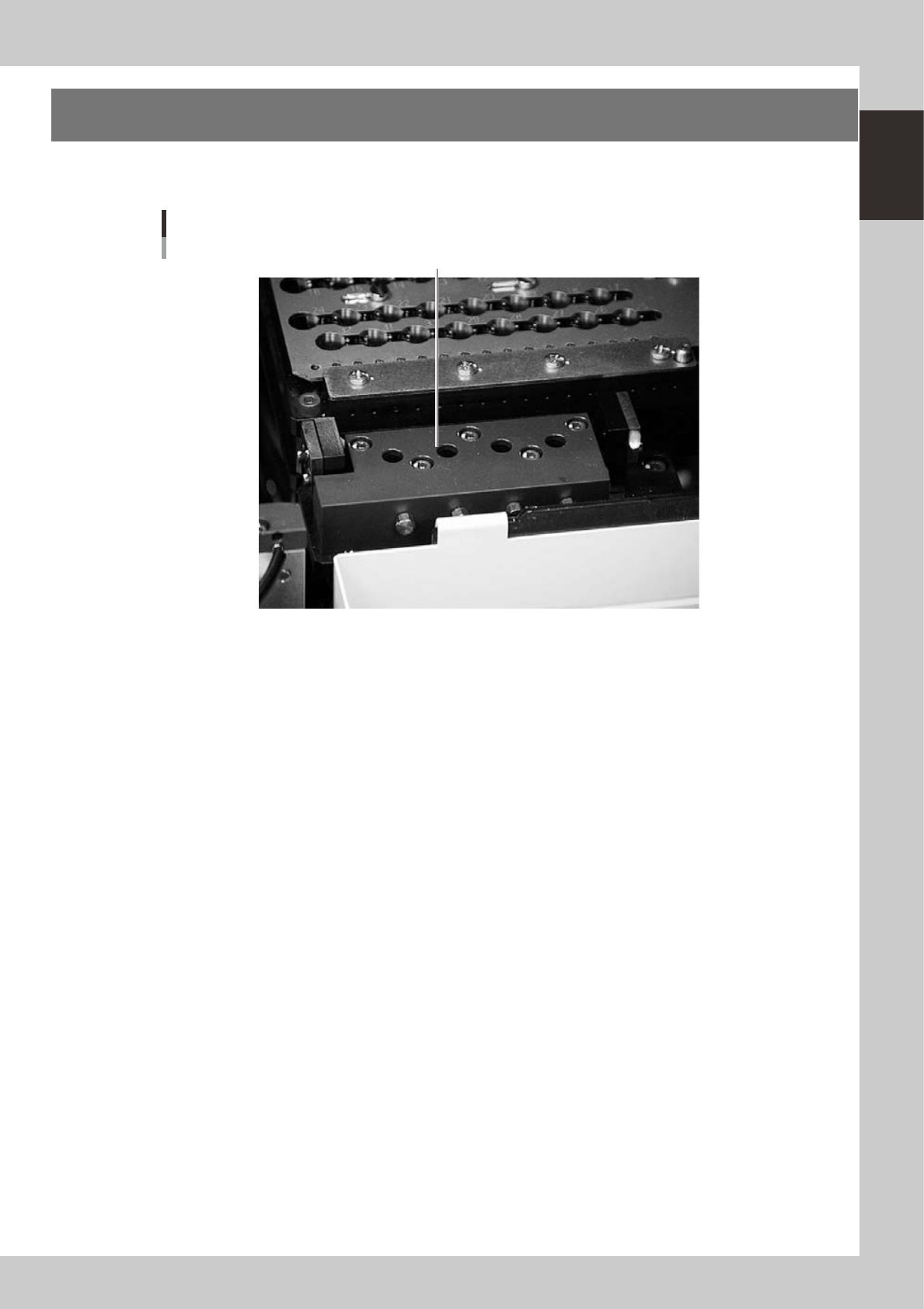

Blow station
Blow station
23120-M3-00
1-20
1
Part names and functions
9.1 Performing a nozzle shaft blow
This section explains how to manually perform a nozzle shaft blow at any desired timing.
1

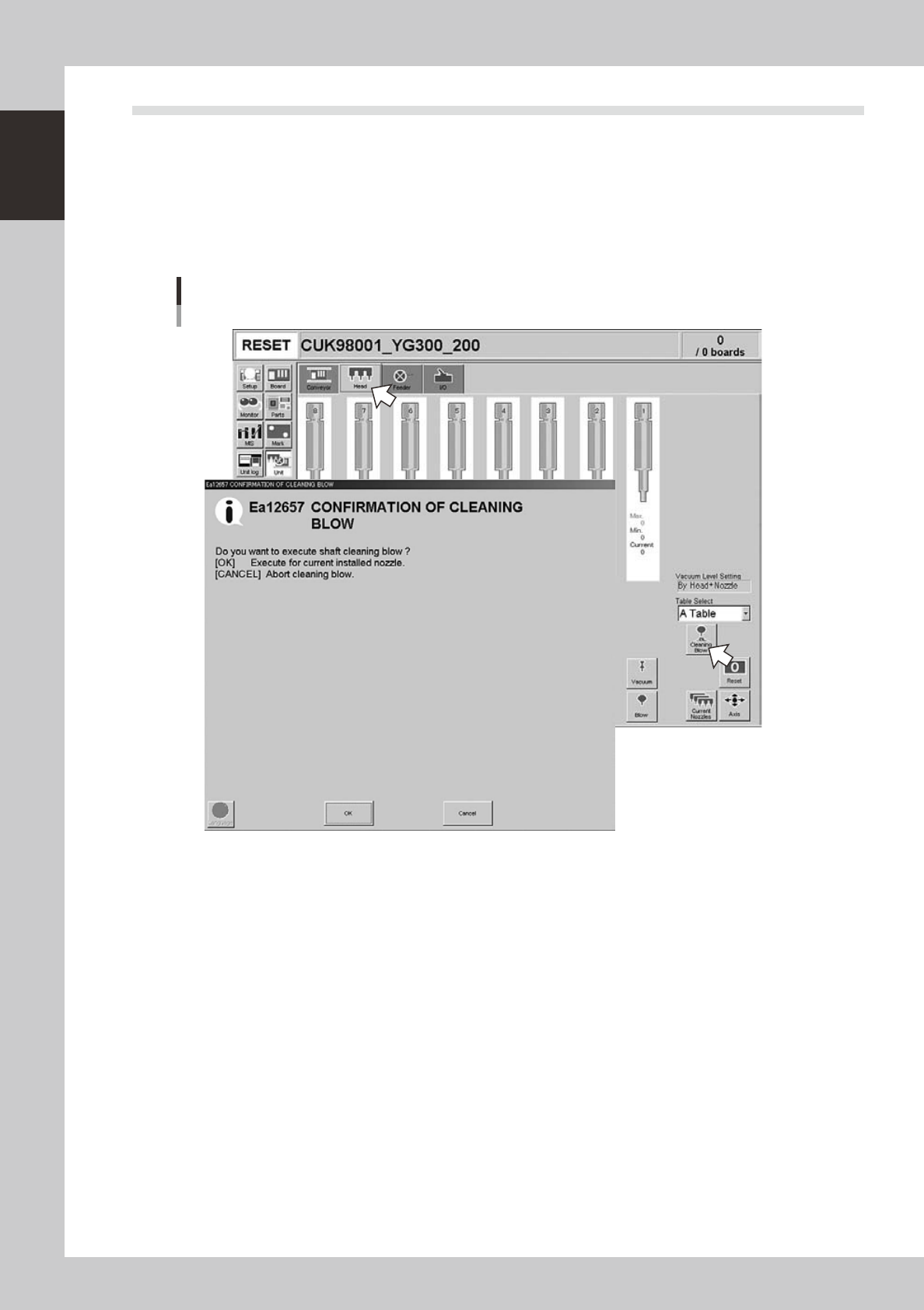

Open the [Unit] – [Head] tab screen.
2
Press the [Cleaning Blow] button.
A confirmation dialog box appears asking whether to perform nozzle shaft blow.
Press the [OK] button to perform nozzle shaft blow and proceed to the next step. If you want to cancel
nozzle shaft blow, press the [Cancel] button.
Nozzle shaft blow
24100-M3-00
1-21
1
Part names and functions
3
Another dialog box appears for checking manual change nozzles.
4
Specify the nozzles you want to clean by nozzle shaft blow.
Pressing the [Close] button in the dialog box displays a screen for checking manual change nozzles as
shown below.
Dialog for checking manual change nozzles
Select the check boxes for the nozzles you want to clean by nozzle shaft blow.
24101-M3-00
