Starting and ending production

4.5 Alignment

The [Alignment] tab screen shows the offset amount of each head calculated from the recognition results

obtained during automatic operation, as well as error numbers.

Monitor: Alignment

24313-M3-00

• Head No.

Shows the head No. used in the machine. The recognition results of the head No. used in the sequence that starts from

the current pickup are displayed. Note that the display is made after the camera image recognition has completed.

• Parts No.

Shows the number of the component picked up by the head and recognized with the camera.

• Feeder Set No.

Shows the feeder set number of the component picked up by the head and recognized with the camera.

• X, Y, R

Displays the offset amount of each head calculated from the recognition results obtained during automatic operation.

This offset is the positional deviation from the center of the nozzle.

• Error No.

Shows an error number when the head fails to recognize a component.

3-20

Starting and ending production

4.6 Retry

The [Retry] tab screen displays the history or the past 100 errors.

Monitor: Retry

24314-M3-00

3-21

Starting and ending production

4.7 Fiducial

The [Fiducial] tab screen shows the recognition results of fiducial marks such as "Board, Block", "2 Point Local"

and "Point" fiducial marks.

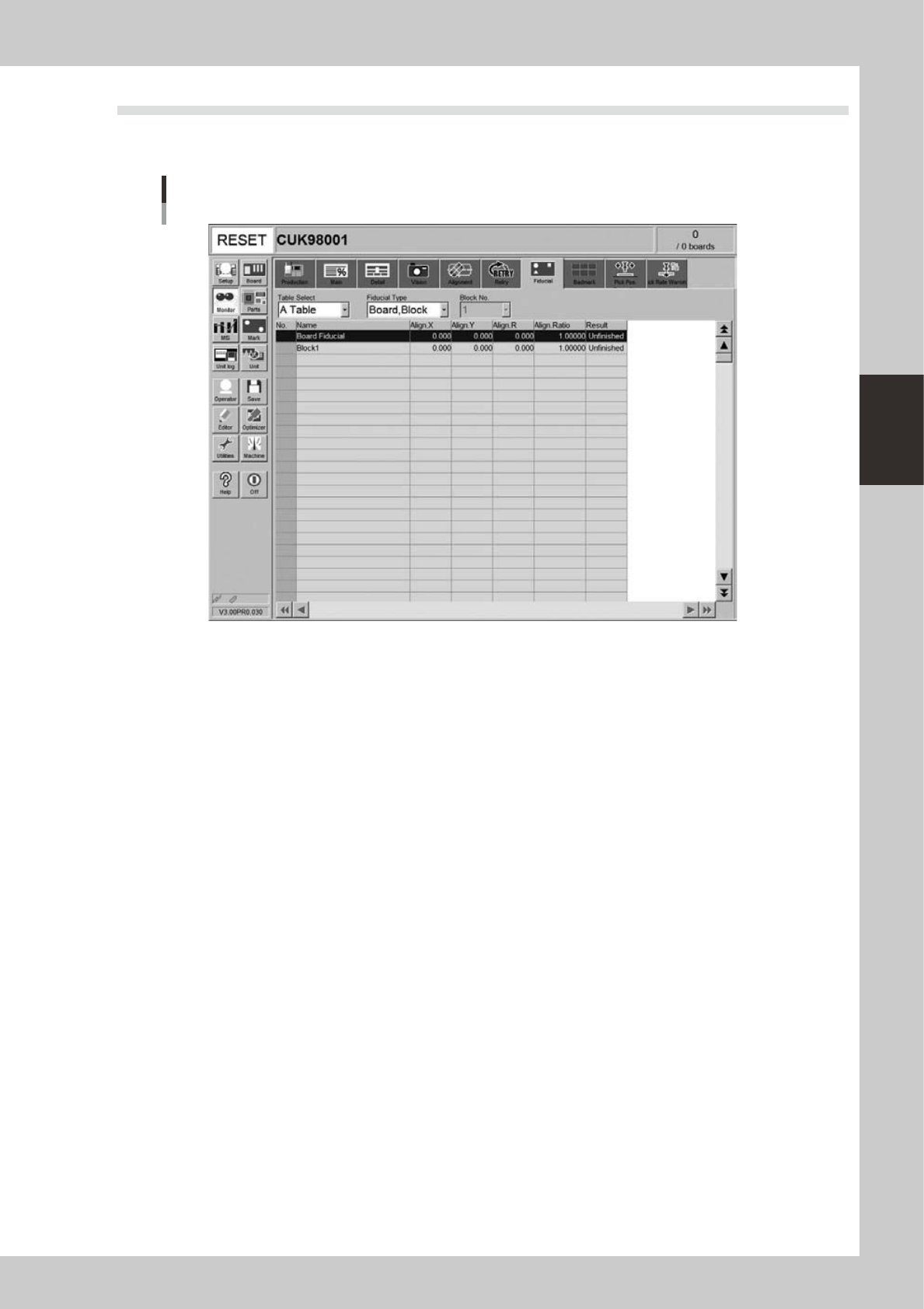

Monitor

Fiducial

24315-M3-00

• Align X, Y, R

Shows the difference between the recognition results and the board data input values, by plus or minus values.

• Align Ratio

Shows the rate of expansion of the board, calculated by using the X, Y and R offset values.

• Result

Shows the recognition results as a "Pass" or "Unfinished ". The "Unfinished" message changes to "Pass" after the mark has

been recognized successfully.
