3 Replacing spare parts 11 8 Se rv ic e Ma nu al P ro ce ss L en s PL - 0 3/ 20 25 Fig.162: Conveyor belt ► Check the tension of the belt at the meas- urement point (1) using a tension meter. The tension should be 250 +…
3 Replacing spare parts
Service Manual Process Lens PL - 03/2025 117
Fig.159: Clamping plate
► Remove the clamping plate off the con-
veyer system by unscrewing the screws
(2) using an Allen key size 2.0.
WARNING!
Springs inside the clamps (1)
.
The clamps (1) of the conveyer system bear
springs.
Make sure all parts are retained.
Fig.160: Tension ring of the conveyor unit
► Loose the tension ring (1) of the belt (3) to
release the tension of the belt. Unscrew
the screw (2) by using an Allen key size
2.5.
Fig.161: Gear
► Remove the gear (2).
► Change one screw (1) using an Allen Key
size 4.0 and 2 screws (1) using an Allen
key size 2.5.
► Remove the belt and replace it with a new
one.
► Put back the gear by tighten the screws
(3x).
► Put back the clamping plate by tighten the
screws (6x).
► Put back the tension ring and fasten the
belt by tighten the screw (1x).
3 Replacing spare parts
118 Service Manual Process Lens PL - 03/2025
Fig.162: Conveyor belt
► Check the tension of the belt at the meas-
urement point (1) using a tension meter.
The tension should be 250 +/- 10 Hz.
► The steps for the other conveyor system
are the same.
Installation
Follow the removal instructions in reverse order for installation.
Check the function of the conveyor belt
Requirements
●
Machine is switched on.
●
Inspection circuit board is placed at the beginning of the machine.
Fig.163: “Unit Function” tab
► Go to the diagnostic page.
► Click on the tab Unit function(1).
► Go to the section Conveyor(2).
► Click the button PCB In(3) and the button
PCB Out(4).
3 Replacing spare parts
Service Manual Process Lens PL - 03/2025 119
3.5.2.2 Changing the conveyor motor
Parts
03110463-xx BLM-6080-24 motor
Equipment and tools
●
Allen key size 4.0
Requirements
●
Machine is switched off.

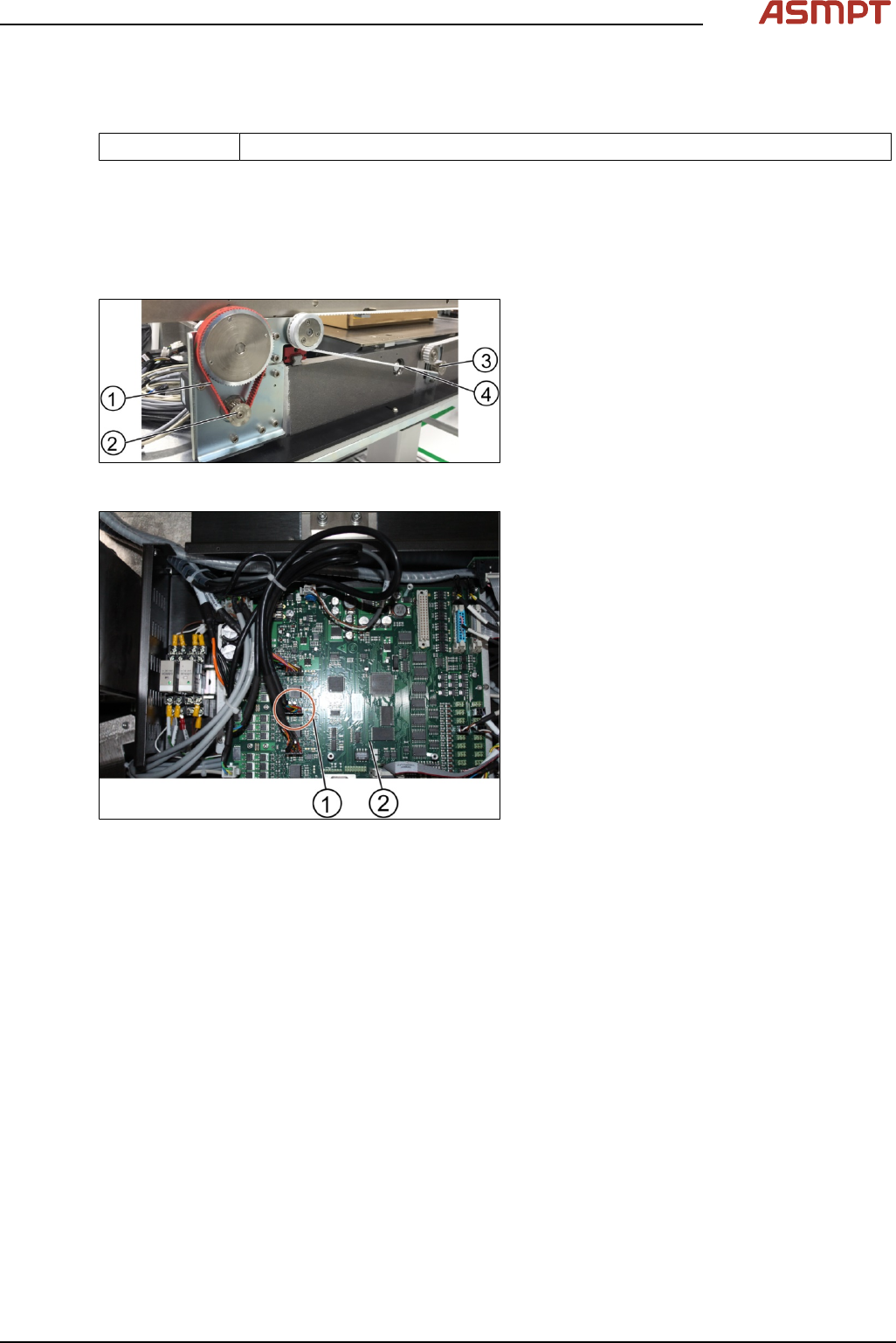

Fig.164: Overview of the conveyor motor
1. Conveyor motor belt
2. Conveyor motor
3. Width adjustment belt
4. Width adjustment motor
Fig.165: TSP400
► Disconnect the connectors(1) for the con-
veyor motor from the TSP400(2).
