3.5.2.2 Changing the conveyor motor
Parts
03110463-xx BLM-6080-24 motor
Equipment and tools
●
Allen key size 4.0
Requirements
●
Machine is switched off.
Fig.164: Overview of the conveyor motor
1. Conveyor motor belt
2. Conveyor motor
3. Width adjustment belt
4. Width adjustment motor
Fig.165: TSP400
► Disconnect the connectors(1) for the con-
veyor motor from the TSP400(2).
3 Replacing spare parts
120 Service Manual Process Lens PL - 03/2025

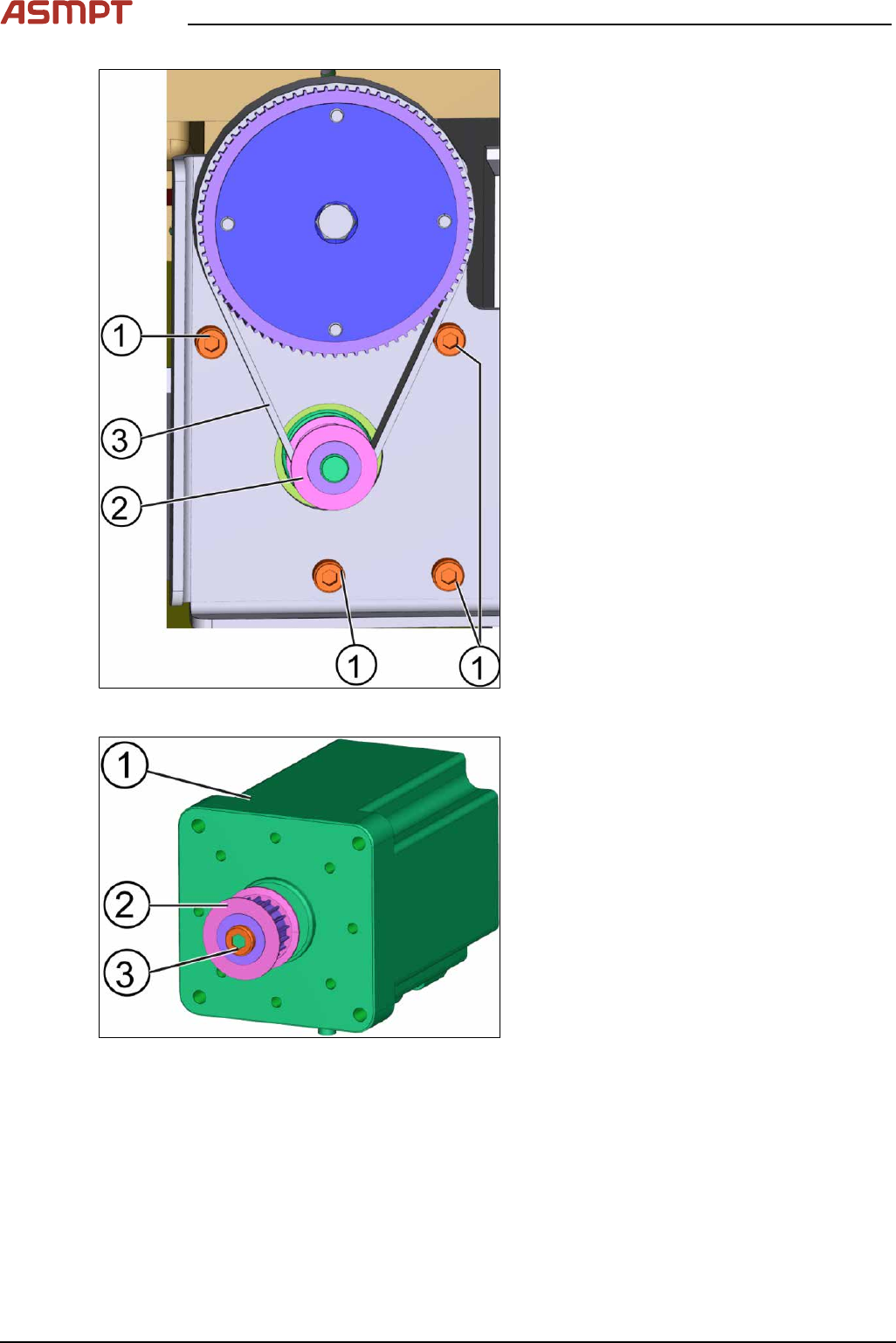

Fig.166: Conveyor motor (from back)
► Unscrew the 4 screws(1) using an Allen
Key size 4.0.
► Take off the conveyor motor belt(3).
► Take out the motor of the machine.
Fig.167: Conveyor motor
► Unscrew the screw(3) off the gear(2) of
the old motor(1) and replace it onto the
new motor using an Allen Key size 4.0.
► Put the motor back in place.
► Put the belt on and tighten the screws.
► Connect the connectors to the TSP400.
Installation
Follow the removal instructions in reverse order for installation.
Check the function of the conveyor motor
Requirements
●
Machine is switched on.
●
Circuit board is placed at the beginning of the machine.
3 Replacing spare parts
Service Manual Process Lens PL - 03/2025 121

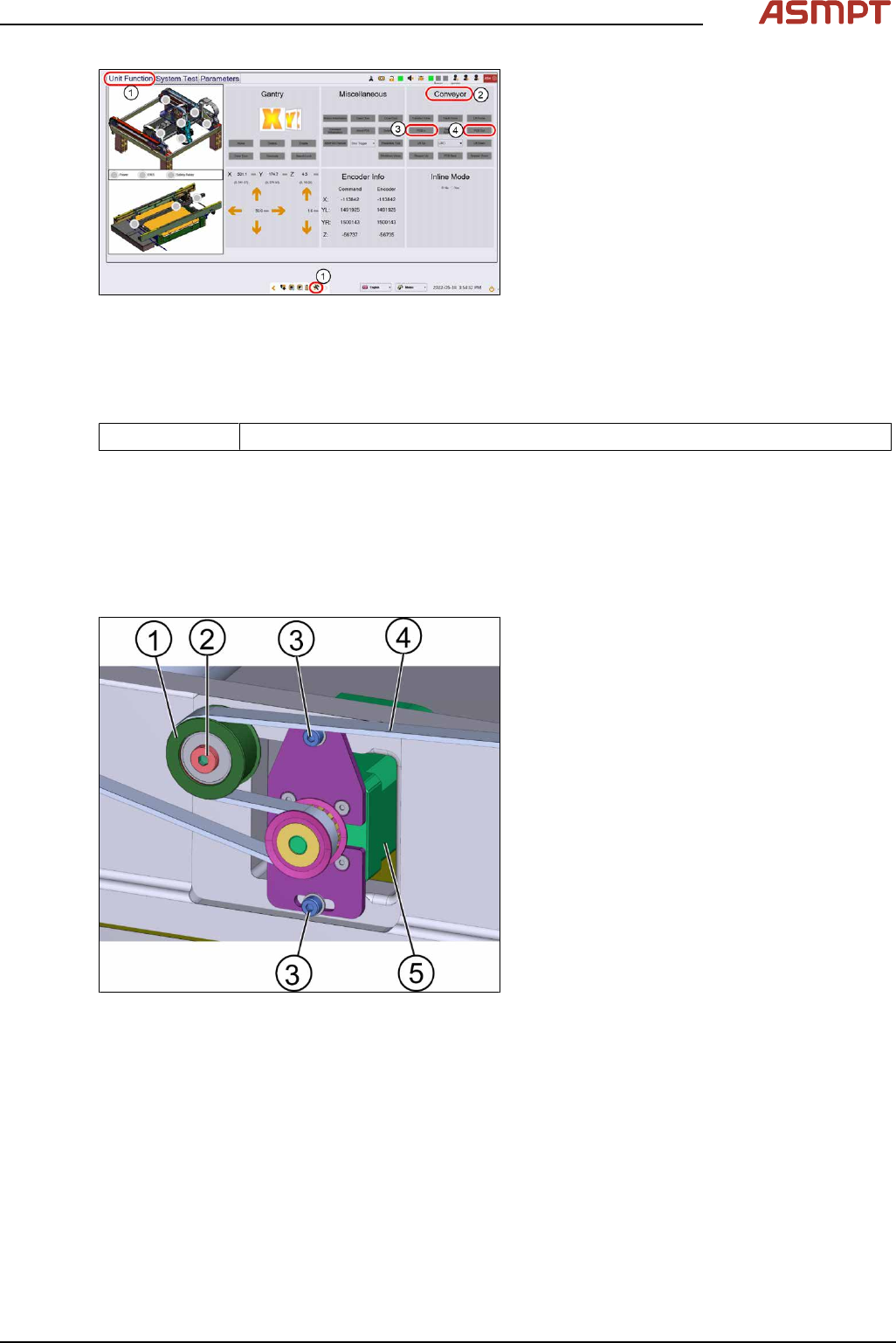

Fig.168: “Unit function” tab
► Go to the diagnostic page.
► Click on the tab Unit function(1).
► Go to the section Conveyor(2).
► Click the button PCB In(3) and the button
PCB Out(4).
► If the circuit board cannot move through
the machine the conveyor system needs
to be adjusted.
3.5.2.3 Changing the width adjustment belt
Parts
03106079-xx WA brecoflex timing belt 10T5/1700
Equipment and tools
●
Allen key size 3.0
Requirements
●
Machine is switched off.
●
Tension meter.
Fig.169: Motor for the width adjustment
1. Tension ring
2. Screw A
3. Screw B (2 x)
4. Belt
5. Motor
► Loosen the tension ring by loosen the
screw A(2).
► Remove the motor by loosen the screws
B(3) using an Allen key size3.
► Remove the belt(4) and replace it with a
new one.
Assembling of the width adjustment belt
Requirements
●
Machine is switched off.
●
Tension meter.
●
Tension ring is loosened.
●
Inspection circuit boards (2 x).
