6-14 Advanced Chip Shooter DECAN S2 Admi nistra t or’s Guide reduce the time. [The order of fiducial teaching w hen the count direction is selected to X] 1 2 3 6 5 4 [The order of fiducial teaching w hen the co…
6-13
Board Definition
A method of completing one Array PCB operation and then executing the next
Array PCB operation.
<By Point> option button
A method of completing an operation cycle to all array PCBs and then executing
the next cycle operation.
<4. Set Array (Regular Type)> group
Initializes the Array PCB. This function sets the offset value of each Array PCB
automatically when the arrangement of array PCB is regular.
<Number> edit box group
Enter the number of Array PCBs as follows.
<Count Direction> option button group
Select a method of numbering Array PCBs.
When teaching the fiducial of the small PCB in the Array PCB, the fiducial marks
are taught along the optimum path with shortest moving distance in order to
X Direction Y Direction
6-14
Advanced Chip Shooter DECAN S2 Administrator’s Guide
reduce the time.

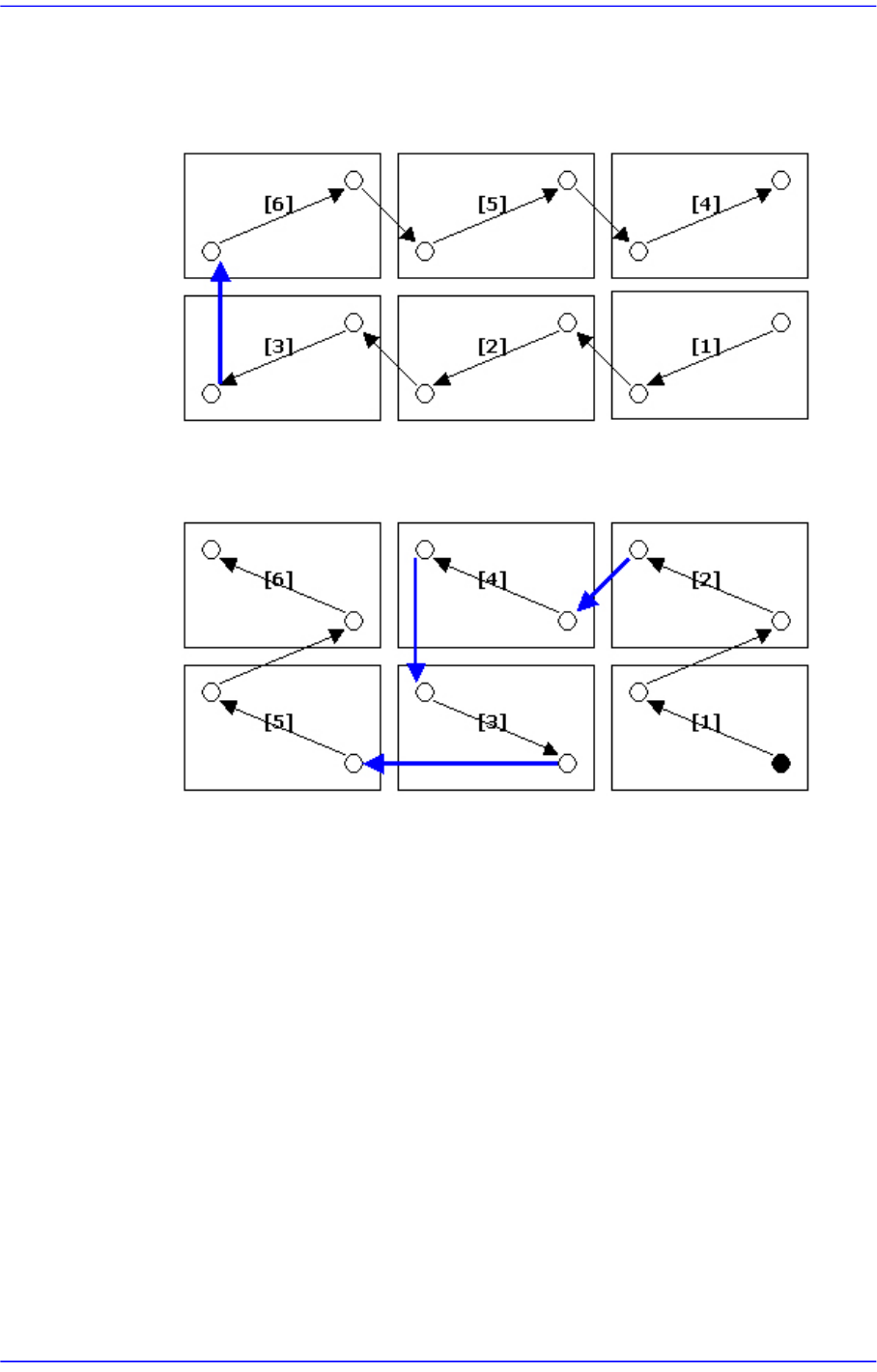

[The order of fiducial teaching when the count direction is selected to X]
1 2 3 6 5 4
[The order of fiducial teaching when the count direction is selected to Y]
1 2 4 3 5 6
<Offset> edit box group
This value is used to set the offset value of the origin of Array PCB automatically.
It sets the placement origin of small PCBs in the array PCB by increasing the
coordinate as much as the offset from the placement origin of the small PCB,
which becomes the reference in the array PCB.
<Teach> button
Teach the offset value of Array PCB. When this button is clicked on, the following
screens are displayed in succession.
6-15
Board Definition
Teach the origin of the small PCB 1. When the “Enter” key is pressed after
teaching, the following screen is displayed.
Teach the origin of the small PCB on the position that can determine the offset.
When the “Enter” key is pressed after teaching, the following screen is displayed.
Press the “Enter” key to complete the Array PCB offset value teaching operation.
<Apply> button
Automatically creates Array PCB data with the value set in this group.
<5. Add Value> group
Set the values of X, Y, and R to be added to the grid line of the <1. Array> group.
When the “Add” button is clicked on after setting the desired values, the values are
added to the corresponding grid lines.
